Produktbeskrivning

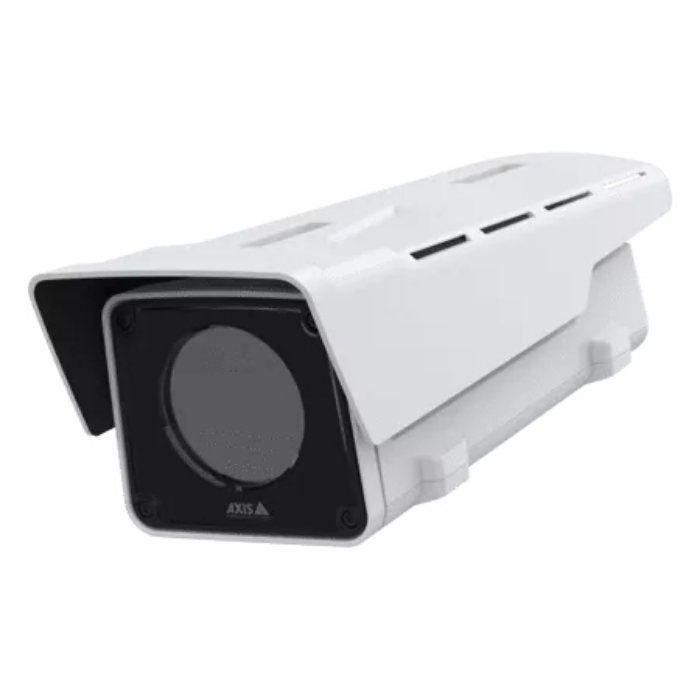

AXIS Q2111-E Thermal Camera

Ideal for perimeter security and long-range detection, this robust camera offers reliable detection and verification 24/7, while protecting privacy. With flexible mounting options, it can be mounted on a positioning unit for better scene understanding.

Reliable detection and verification—always

Using thermal technology, AXIS Q2111-E offers reliable detection and verification 24/7 in all light conditions and even in smoke and light fog—all while protecting privacy. A powerful sensor with extremely high thermal sensitivity and a 60 mm lens make it ideal for perimeter security to capture events taking place at great distances. When mounted on a positioning unit (sold separately), this robust camera provides a 360° unobstructed field of view allowing operators to pinpoint any spot in an instant or run guard tour with smooth panoramic viewing. What’s more, electronic image stabilization (EIS) ensures stable, reliable video in all environments.

Robust and secure

With IK10-, IP66/67-, NEMA 4X, and NEMA TS2 ratings, this robust thermal camera is impact- and weather-resistant. It includes Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. Plus, it offers secure key storage with FIPS 140-2 Level 2 certified secure cryptographic key storage and operations. Furthermore, this sustainable camera is made from halogen-free materials and offers a low carbon footprint.



Viktiga egenskaper

Axis Q2111-E. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: Black, White, Form factor: Box. Vertical field of view (thermal module): 4.7°, Horizontal field of view (thermal module): 6°, Camera pixel size: 17 µm. Sensor type: Microbolometer, Effective sensor resolution (thermal module): 384 x 288 pixels. Lens diameter: 6 cm, Closest focusing distance: 84 m, Infrared spectral band: 8 - 14 µm



Teknisk specifikation

Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
Preset points	Yes
Thermal module	Yes
Thermal sensitivity (NETD)	20 mK
Certification	CSA, UL/cUL, CE, KC, VCCI, RCM

Form factor	Box
Mounting type	Wall
Product colour	Black,White
LED indicators	Yes
Housing material	Aluminium
International Protection (IP) code	IP66, IP67
IK code	IK10

Vertical field of view (thermal module)	4.7 °
Horizontal field of view (thermal module)	6 °
Camera pixel size	17 µm

Sensor type	Microbolometer
Effective sensor resolution (thermal module)	384 x 288 pixels

Number of lenses	1
Lens diameter	60 mm
Maximum aperture number	1.2
Infrared spectral band	8 - 14 µm
Closest focusing distance	84 m

Maximum resolution	384 x 288 pixels
Video formats supported	AVC,H.264,H.265,HEVC,M-JPEG,MPEG4
Frame rate	30 fps
Video streaming	Yes
Gain control type	Auto
Image quality adjustment	Brightness,Contrast,Sharpness
Flip & mirror	Yes
Text caption overlay	Yes
Image stabilizer	Yes
Bit rate control	Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Audio system	2-way
Audio system full duplex	Yes
Audio formats supported	ADPCM,G.711,G.726,LC-AAC,LPCM,OPUS,PCM
Audio detection	Yes
Sample rates	8 - 48 kHz

Ethernet LAN	Yes
Networking standards	IEEE 802.1AE,IEEE 802.1x,IEEE 802.3af,IEEE 802.3at
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4
Streaming method	Multicast

HDD capacity	4000 GB
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Flash memory	8192 MB
Internal memory	2048 MB

Ethernet LAN (RJ-45) ports	1
RS-422 ports	1
RS-485 ports	1
Terminal block port	Yes
Fiber ports quantity	1

Video motion detection	Yes
Security algorithms	256-bit AES-XTS,EAP-TLS,HTTPS,MSCHAPv2,PEAP,TLS
Alert notification type	E-mail
Active tampering alarm	Yes
Privacy protection	Yes

Power source type	DC,PoE
AC input voltage	100-240 V
AC input frequency	50/60 Hz
Power consumption (typical)	5.6 W
Power consumption (max)	25.5 W

Operating temperature (T-T)	-40 - 60 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100 %
Storage relative humidity (H-H)	5 - 95 %

Width	484 mm
Depth	402 mm
Height	44.1 mm
Weight	3500 g

Number of cameras	1
Manual	Yes

Compliance certificates	Trade Agreements Act (TAA)
Doesn't contain	CFR,PVC/BFR
