Produktbeskrivning

Reliable detection and verification—always

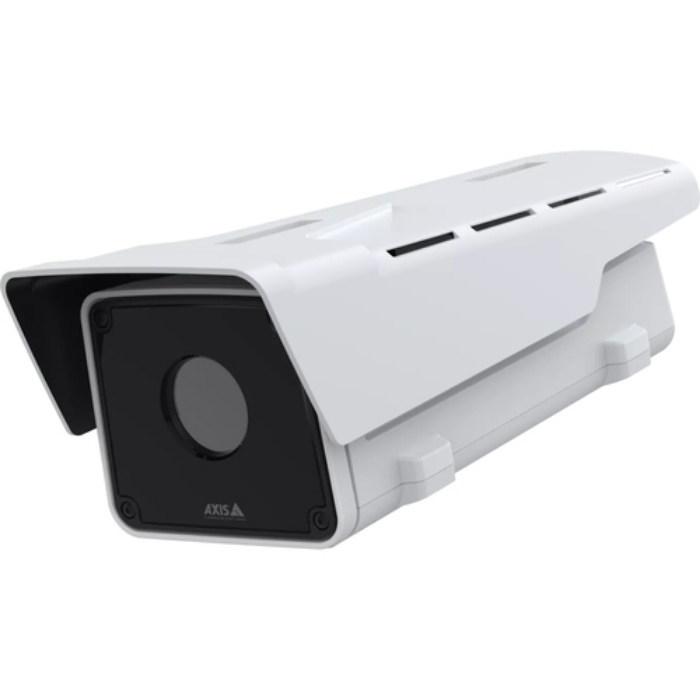

Using thermal technology, AXIS Q2112-E offers reliable detection and verification 24/7 in all light conditions and even in smoke and light fog—all while protecting privacy. It features a powerful sensor with extremely high thermal sensitivity for a low false alarm rate. Plus, there’s a choice of five lens options (10 mm, 19 mm, 25 mm, 35 mm, 60 mm) for a wider or longer and narrower field of view. When mounted on a positioning unit (sold separately), this robust camera provides a 360° overview. This unobstructed field of view combined with the camera’s high resolution ensures great scene understanding, especially in low-contrast scenes. What’s more, electronic image stabilization (EIS) ensures stable, reliable video in all environments.

Powerful analytics platform

This powerful thermal camera delivers actionable insights helping you make informed decisions about your operations. It comes with AXIS Motion Guard, AXIS Fence Guard, and AXIS Loitering Guard preinstalled for proactive surveillance. Plus, you can buy AXIS Perimeter Defender with AI-based functionality for enhanced protection. Built on a powerful analytics platform, it’s possible to add custom-made third-party analytics. And, with four I/O ports, one RS485 serial port, and edge-to-edge technology, you can easily integrate and trigger other devices such as a network speaker or strobe siren.

Robust and secure

With IK10-, IP66/67-, NEMA 4X, and NEMA TS2 ratings, this robust thermal camera is impact- and weather-resistant. It includes Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. Plus, it offers secure key storage with FIPS 140-2 Level 2 certified secure cryptographic key storage and operations. Furthermore, this sustainable camera is made from halogen-free materials and offers a low carbon footprint.



Viktiga egenskaper

Axis Q2112-E. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: Black, White, Form factor: Box. Lens viewing angle, horizontal: 10°, Camera pixel size: 17 µm. Sensor type: Microbolometer, Effective sensor resolution (thermal module): 640 x 480 pixels. Lens diameter: 6 cm, Closest focusing distance: 84 m, Infrared spectral band: 8 - 14 µm



Teknisk specifikation

Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
Preset points	Yes
Thermal sensitivity (NETD)	20 mK
Certification	CSA, UL/cUL, CE, KC, VCCI, RCM, CISPR 35, CISPR 32 Class A, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, RCM AS/NZS CISPR 32 Class A, ICES(A)/NMB(A), VCCI Class A, KS C 9835, KS C 9832 Class A, FCC Part 1

Form factor	Box
Mounting type	Wall
Product colour	Black,White
LED indicators	Yes
Housing material	Aluminium
International Protection (IP) code	IP66, IP67
IK code	IK10
Weatherproof	Yes

Lens viewing angle, horizontal	10 °
Camera pixel size	17 µm

Sensor type	Microbolometer
Number of sensors	1
Effective sensor resolution (thermal module)	640 x 480 pixels

Number of lenses	1
Lens diameter	60 mm
Maximum aperture number	1.2
Closest focusing distance	84 m
Infrared spectral band	8 - 14 µm

Maximum resolution	640 x 480 pixels
Video compression formats	AVC,H.264,H.265,HEVC,M-JPEG,MPEG4
Frame rate	30 fps
Video streaming	Yes
Gain control type	Auto
Text caption overlay	Yes
Image stabilizer	Yes
Bit rate control	Variable Bit Rate (VBR)
Image quality adjustment	Brightness,Contrast,Sharpness

Audio system full duplex	Yes
Audio formats supported	AAC-LC,ADPCM,G.711,G.726,LPCM,OPUS,PCM
Audio detection	Yes
Sample rates	8 - 48 kHz

Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet,Gigabit Ethernet
Networking standards	IEEE 802.1AE,IEEE 802.1x,IEEE 802.3af,IEEE 802.3at
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, AR
Quality of Service (QoS) support	Yes
Streaming method	Multicast

Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Flash memory	8192 MB
RAM capacity	2048 MB

Ethernet LAN (RJ-45) ports	1
RS-422 ports	1
RS-485 ports	1
Microphone in	Yes
Terminal block port	Yes
DC-in jack	Yes

Pixel counter	Yes
Privacy protection	Yes
Video motion detection	Yes
Active tampering alarm	Yes
Digest authentication	Yes
Security algorithms	256-bit AES-XTS,EAP-TLS,FIPS 140-2,MSCHAPv2,PEAP
Alert notification type	E-mail

Power source type	DC,PoE
Power consumption (typical)	4.6 W
Power consumption (max)	25.5 W
Power consumption (Power over Ethernet (PoE))	25.5 W

Operating temperature (T-T)	-40 - 60 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100 %
Storage relative humidity (H-H)	5 - 95 %

Width	159 mm
Depth	404 mm
Height	150 mm
Weight	3500 g

Number of cameras	1
Manual	Yes

Compliance certificates	REACH,RoHS
Doesn't contain	CFR,PVC/BFR
