Produktbeskrivning

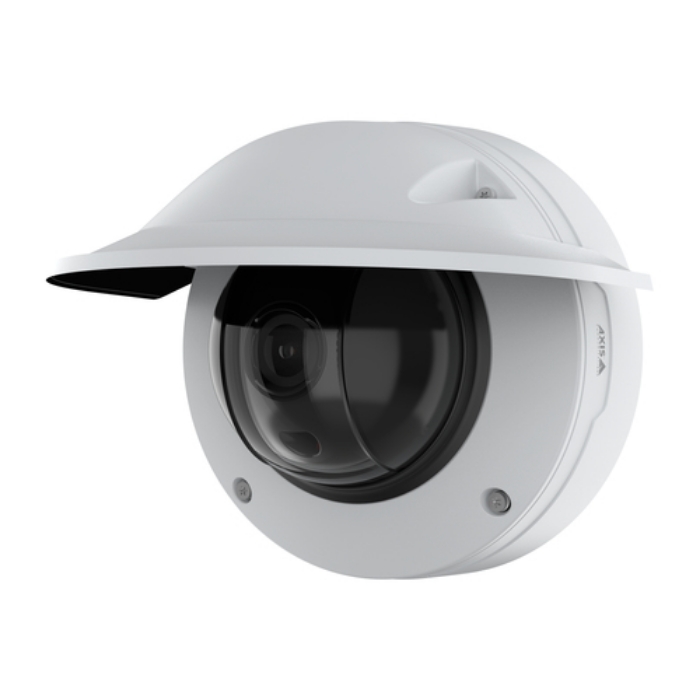

With superior 4K resolution, Lightfinder 2.0, Forensic WDR, and OptimizedIR, AXIS Q3538-LVE delivers outstanding image quality even in the harshest weather and environments. The IR-shielded dome prevents IR reflections ensuring clear, sharp video every time. Built on ARTPEC-8, it offers advanced features and powerful applications based on deep learning. For instance, AXIS Object Analytics comes preinstalled offering highly nuanced object classification. Enclosed in a metal casing, this robust camera features redundant power, sensors for intrusion- and shock detection, and built-in cybersecurity features such as Axis Edge Vault and a FIPS 140-2 level 2 certified Trusted Platform Module (TPM).
Viktiga egenskaper
Axis 02225-001. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.07 lx, Tilt angle range: -43 - 80°, Camera shutter speed: 1/66500 - 2 s. Sensor type: CMOS, Optical sensor size: 25.4 / 1.2 mm (1 / 1.2"). Focal length range: 6.2 - 12.9 mm
Teknisk specifikation
Performance
| Type | IP security camera |
|---|
| Placement supported | Indoor & outdoor |
|---|
| Connectivity technology | Wired |
|---|
| PTZ control | Yes |
|---|
| PTZ modes | Digital PTZ |
|---|
| Wide Dynamic Range (WDR) | Yes |
|---|
| Infrared (IR) cut-off filter | Yes |
|---|
| Day/night mode | Yes |
|---|
| Number of languages | 12 |
|---|
| Languages support | CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN,KOR,POL,POR,RUS |
|---|
| Certification | CISPR 35, EN 50121-4, EN 55032 Class A, EN 55035,
EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2,
FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4,
KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A,
VCCI Class |
|---|
Design
| Form factor | Dome |
|---|
| Mounting type | Ceiling/wall |
|---|
| Product colour | White |
|---|
| International Protection (IP) code | IP66 |
|---|
| IK code | IK10+ |
|---|
| Weatherproof | Yes |
|---|
Camera
| Camera pan control | Yes |
|---|
| Camera tilt control | Yes |
|---|
| Minimum illumination | 0.07 lx |
|---|
| Tilt angle range | -43 - 80 ° |
|---|
| Camera shutter speed | 1/66500 - 2 s |
|---|
Image sensor
| Sensor type | CMOS |
|---|
| Number of sensors | 1 |
|---|
| Optical sensor size | 1/1.2 " |
|---|
| Progressive scan | Yes |
|---|
Lens system
| Number of lenses | 1 |
|---|
| Zoom capability | Yes |
|---|
| Focal length range | 6.2 - 12.9 mm |
|---|
Night vision
| Night vision | Yes |
|---|
| LED type | IR |
|---|
Video
| Maximum resolution | 3840 x 2160 pixels |
|---|
| Total megapixels | 8 MP |
|---|
| Video formats supported | H.264,H.265 |
|---|
| Video recording | Yes |
|---|
| Frame rate | 60 fps |
|---|
| Video streaming | Yes |
|---|
| Image quality adjustment | Brightness,Contrast,Saturation,Sharpness |
|---|
| Privacy masking | Yes |
|---|
Audio
| Audio formats supported | AAC-LC,G.711,G.726,OPUS |
|---|
| Built-in microphone | Yes |
|---|
| Audio detection | Yes |
|---|
Network
| Ethernet LAN | Yes |
|---|
| Wi-Fi | No |
|---|
| Bluetooth | No |
|---|
| Networking standards | IEEE 802.3at |
|---|
| Quality of Service (QoS) support | Yes |
|---|
Storage
| Built-in HDD | No |
|---|
| Card reader integrated | Yes |
|---|
| Compatible memory cards | MicroSD (TransFlash),MicroSDHC,MicroSDXC |
|---|
| Flash memory | 8194 MB |
|---|
| Internal memory | 2048 MB |
|---|
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
|---|
Security
| Human and vehicle targets classification | Yes |
|---|
| Active tampering alarm | Yes |
|---|
| Alert notification type | E-mail |
|---|
| IP address filtering | Yes |
|---|
| Pixel counter | Yes |
|---|
| HTTPS encryption | Yes |
|---|
Power
| Power source type | PoE |
|---|
| Power consumption (typical) | 9 W |
|---|
| Power consumption (max) | 23 W |
|---|
Operational conditions
| Operating temperature (T-T) | -50 - 60 °C |
|---|
| Storage temperature (T-T) | -40 - 65 °C |
|---|
| Operating relative humidity (H-H) | 10 - 100 % |
|---|
| Storage relative humidity (H-H) | 5 - 95 % |
|---|
Weight & dimensions
| Height | 124 mm |
|---|
| Diameter | 183 mm |
|---|
| Weight | 2100 g |
|---|
Packaging content
| Number of cameras | 1 |
|---|
| Mounting kit | Yes |
|---|
| Mounting brackets included | Yes |
|---|
| Drilling template included | Yes |
|---|
| Manual | Yes |
|---|
