Produktbeskrivning

Outstanding image quality

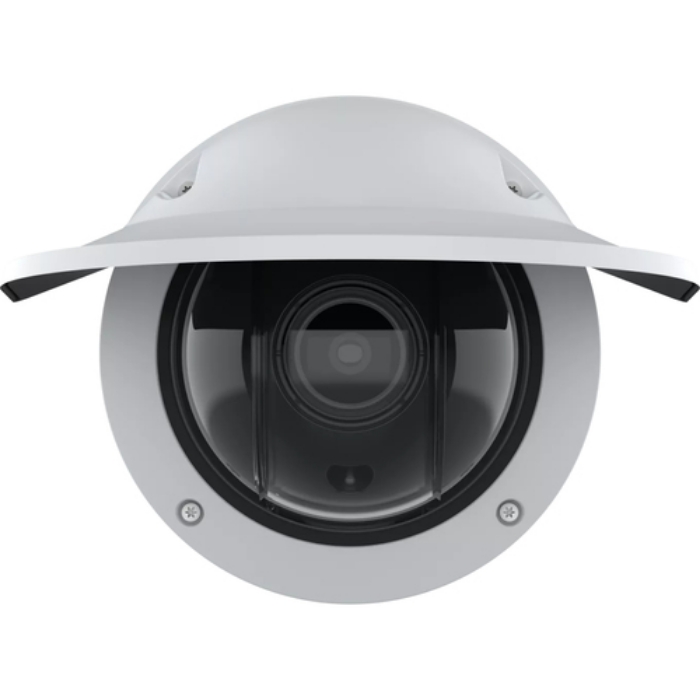

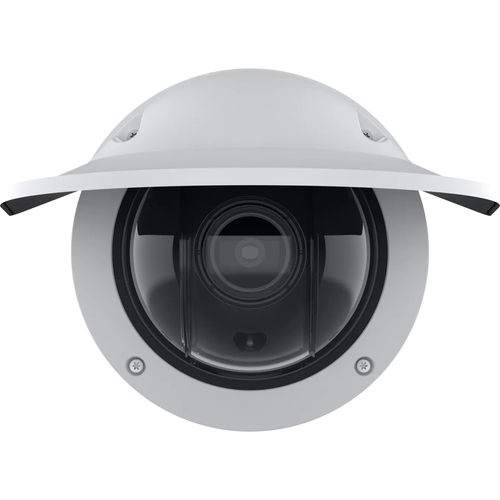

AXIS Q3556-LVE offers outstanding image quality and forensic details in 4 MP (up to 120 fps), even in harsh weather and environments. It features OptimizedIR, and an innovative IR-shielded dome for clear, sharp images in rain and snow. Lightfinder 2.0 and Forensic WDR ensure true colors and great detail in near darkness or challenging light. And electronic image stabilization keeps the image steady when the camera is subject to vibrations. It’s available with either a high-performing and light-sensitive 10 mm lens or a powerful and flexible 51 mm tele lens for surveillance from a distance.

ARTPEC-9 for unmatched performance

ARTPEC-9 refines the remarkable features and capabilities that characterized previous generations of our in-house-designed SoC: low bitrate, AI-powered analytics, superior imaging, and built-in cybersecurity. It also introduces AV1, an open-source video encoding standard from the Alliance for Open Media. With support for AV1 and enhanced image processing, ARTPEC-9 delivers high-quality video with uncompromised detail and clarity, and best-in-class bitrate. Together with Axis Zipstream, AV1 also ensures hassle-free video both on-prem and in the cloud. What’s more, ARTPEC-9 powers advanced analytics applications that detect objects earlier and analyze events more precisely.

Powerful video and audio analytics

Featuring a deep learning processing unit (DLPU), this AI-based camera runs advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans, vehicles, and types of vehicles. Now combined with ARTPEC-9, this application offers enhanced performance with greater accuracy. With an acoustic sensor and support for AXIS Audio Analytics, you be notified whenever something relevant happens, even when there's no visual indication. For instance, it can detect screams, shouts, as well as changes in sound level. Additionally, AXIS Image Health Analytics comes preinstalled, so you’ll be notified if your image is blocked, degraded, under-exposed, or redirected.

Robust with strong security

Made from high-grade aluminum, this robust, IK10-, IP66-, IP6K9K- and NEMA 4X-rated outdoor-ready camera is both vandal- and impact-resistant. It has an operating temperature range from -55°C to 55 °C (-122 to 131°F). And a built-in intrusion switch can detect tampering. It can be powered with DC and PoE to ensure power redundancy. What’s more, Axis Edge Vault, our hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. It also offers secure key storage with FIPS 140-3 Level 3 certified secure cryptographic key storage and operations.



Viktiga egenskaper

Axis Q3556-LVE. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.01 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 101°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Optical zoom: 2.2x, Lens diameter: 1 cm, Focal length range: 4.7 - 10 mm



Teknisk specifikation

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
PTZ control	Yes
Auto-tracking	Yes
Tour recording	Yes
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Certification	UL, FCC, ICES, CE, KC, VCCI, RCM, WEEE

Form factor	Dome
Mounting type	Ceiling/wall
Product colour	Black,White
LED indicators	Yes
Housing material	Aluminium,Plastic
Protection features	Impact resistant,Vandal proof
International Protection (IP) code	IP66, IP6K9K
IK code	IK10

Camera pan control	Yes
Camera tilt control	Yes
Minimum illumination	0.01 lx
Angle of rotation	360 °
Lens viewing angle, horizontal	101 °
Lens viewing angle, vertical	54 °
Tilt angle range	-42 - 80 °
Pan range	-180 - 180 °
Camera pixel size	2.9 µm
Camera shutter speed	1/49500 - 2 s

Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/1.8 "

Number of lenses	1
Zoom capability	Yes
Optical zoom	2.2 x
Lens diameter	10 mm
Focal length range	4.7 - 10 mm
Auto focus	Yes
Maximum aperture number	1.2
Minimum aperture number	1.1
Observe distance (tele)	56 m
Observe distance (wide)	26 m
Detect distance (tele)	141 m
Closest focusing distance	0.5 m
Detect distance (wide)	65 m
Identify distance (tele)	14 m
Recognize distance (tele)	28 m
Recognize distance (wide)	13 m
Identify distance (wide)	6.4 m

Night vision	Yes
Night vision distance	60 m
LED type	IR
Infra-red wavelength	850 nm

Maximum resolution	2688 x 1512 pixels
Total megapixels	4 MP
Video formats supported	AV1,AVC,H.264,H.265,HEVC,M-JPEG,MPEG4
Supported graphics resolutions	1280 x 800 (WXGA),2688 x 1512
Frame rate	120 fps
Video streaming	Yes
Noise reduction	Yes
Noise reduction technology	2D noise reduction,3D noise reduction
Gain control type	Auto
Text caption overlay	Yes
Image stabilizer	Yes
Flip & mirror	Yes
Image quality adjustment	Brightness,Contrast,Saturation,Sharpness
Bit rate control	Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet,Gigabit Ethernet
Networking standards	IEEE 802.1AE,IEEE 802.1x,IEEE 802.3at
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6,
Streaming method	Multicast

Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Flash memory	8000 MB
RAM capacity	4000 MB

Ethernet LAN (RJ-45) ports	1
Microphone in	Yes
Terminal block port	Yes

Human and vehicle targets classification	Yes
Active tampering alarm	Yes
Privacy protection	Yes
Intelligent Video Surveillance (IVS) system features	Line crossing detection,Moving object
Alert notification type	E-mail
Security algorithms	256-bit AES-XTS,EAP-TLS,HTTPS,MSCHAPv2,PEAP,TLS

Power source type	PoE
Power consumption (typical)	6.3 W
Power consumption (max)	25.5 W

Operating temperature (T-T)	-50 - 55 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100 %
Storage relative humidity (H-H)	5 - 95 %

Width	239 mm
Depth	211 mm
Height	183 mm
Weight	2360 g

Number of cameras	1
Sun shield included	Yes

Compliance certificates	REACH,RoHS,Trade Agreements Act (TAA)
Doesn't contain	CFR,PVC/BFR
