Produktbeskrivning

Built on ARTPEC-9, this robust AI-powered camera with support for AV1 codec offers accelerated performance to run impressive analytics applications on the edge. Furthermore, AXIS Audio Analytics can detect critical sounds, adding an extra layer of security.

Outstanding image quality

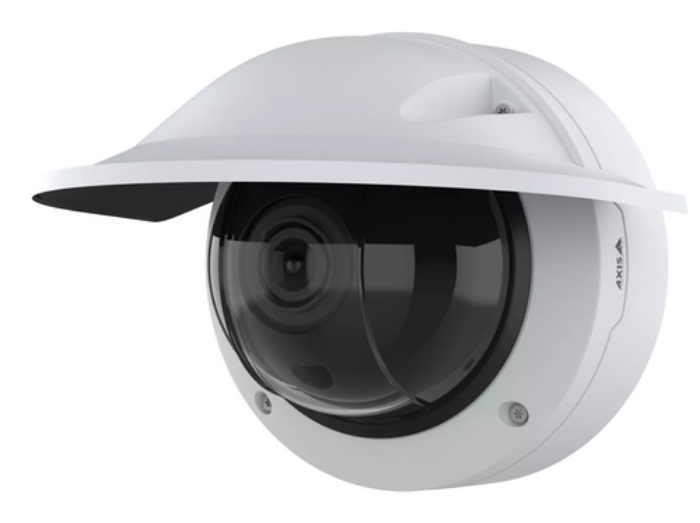

AXIS Q3558-LVE offers outstanding image quality and forensic details in 8 MP resolution, even in harsh weather and environments. It features OptimizedIR, and an innovative IR-shielded dome prevents IR reflections from rain and snow ensuring clear, sharp images every time. Lightfinder 2.0 and Forensic WDR ensure true colors and great detail in near darkness or challenging light. Furthermore, electronic image stabilization keeps the image steady when the camera is subject to vibrations.

ARTPEC-9 for unmatched performance
ARTPEC-9 refines the remarkable features and capabilities that characterized previous generations of our in-house-designed SoC: low bitrate, AI-powered analytics, superior imaging, and built-in cybersecurity. It also introduces AV1, an open-source video encoding standard from the Alliance for Open Media. With support for AV1 and enhanced image processing, ARTPEC-9 delivers high-quality video with uncompromised detail and clarity, and best-in-class bitrate. Together with Axis Zipstream, AV1 also ensures hassle-free video both on-prem and in the cloud. What’s more, ARTPEC-9 powers advanced analytics applications that detect objects earlier and analyze events more precisely.

Powerful video and audio analytics
Featuring a deep learning processing unit (DLPU), this AI-based camera runs advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans, vehicles, and types of vehicles. Now combined with ARTPEC-9, this application offers enhanced performance with greater accuracy. With an acoustic sensor and support for AXIS Audio Analytics, you be notified whenever something relevant happens, even when there's no visual indication. For instance, it can detect screams, shouts, as well as changes in sound level. Additionally, AXIS Image Health Analytics comes preinstalled, so you’ll be notified if your image is blocked, degraded, under-exposed, or redirected.

Robust with strong security
Made from high-grade aluminum, this robust, IK10-, IP66-, IP6K9K- and NEMA 4X-rated outdoor-ready camera is both vandal- and impact-resistant. It has an operating temperature range from -50°C to 55 °C (-58 to 131°F). And a built-in intrusion switch can detect tampering. It can be powered with DC and PoE to ensure power redundancy. What’s more, Axis Edge Vault, our hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. It also offers secure key storage with FIPS 140-3 Level 3 certified secure cryptographic key storage and operations.



Viktiga egenskaper

Axis Q3558-LVE. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Dome. Minimum illumination: 0.007 lx, Angle of rotation: 180°, Lens viewing angle, horizontal: 104 - 50°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.2 mm (1 / 1.2"). Optical zoom: 2x, Focal length range: 6.3 - 13 mm, Detect distance (wide): 88 m



Teknisk specifikation

Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
PTZ control	Yes
Tour recording	Yes
Wide Dynamic Range (WDR)	Yes
Infrared (IR) cut-off filter	Yes
Day/night mode	Yes
Built-in processor	Yes
Processor model	ARTPEC-9
Dynamic range	120 dB

Form factor	Dome
Mounting type	Ceiling/Wall/Pole
Product colour	White
LED indicators	Yes
Housing material	Aluminium,Polycarbonate (PC)
International Protection (IP) code	IP66, IP6K9K
IK code	IK10
Weatherproof	Yes

Camera pan control	Yes
Camera tilt control	Yes
Minimum illumination	0.007 lx
Angle of rotation	180 °
Lens viewing angle, horizontal	104 - 50 °
Lens viewing angle, vertical	56 - 28 °
Tilt angle range	-42 - 80 °
Pan range	-180 - 180 °
Camera pixel size	2.9 µm
Camera shutter speed	1/67500 - 2 s

Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/1.2 "
Progressive scan	Yes

Zoom capability	Yes
Optical zoom	2 x
Focal length range	6.3 - 13 mm
Auto focus	Yes
Minimum aperture number	1.6
Maximum aperture number	2.9
Identify distance (wide)	9 m
Detect distance (tele)	178 m
Recognize distance (tele)	36 m
Observe distance (tele)	71 m
Detect distance (wide)	88 m
Recognize distance (wide)	18 m
Observe distance (wide)	35 m
Identify distance (tele)	18 m

Night vision	Yes
Night vision distance	60 m
LED type	IR
Infra-red wavelength	850 nm

Maximum resolution	3840 x 2160 pixels
Total megapixels	8 MP
Video compression formats	AV1,H.264,H.265,M-JPEG
Video recording	Yes
Frame rate	60 fps
Video streaming	Yes
Noise reduction	Yes
Noise reduction technology	2D noise reduction,3D noise reduction
Text caption overlay	Yes
Image stabilizer	Yes
Image quality adjustment	Brightness,Contrast,Saturation,Sharpness,White balance

Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Ethernet interface type	Fast Ethernet,Gigabit Ethernet
Networking standards	IEEE 802.1AE,IEEE 802.1ar,IEEE 802.1x,IEEE 802.3at
Quality of Service (QoS) support	Yes

Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Flash memory	8192 MB
RAM capacity	4096 MB

Ethernet LAN (RJ-45) ports	1
Terminal block port	Yes
DC-in jack	Yes

Network access storage (NAS)	Yes
Pixel counter	Yes
Video motion detection	Yes

Cloud-managed	Yes

Power source type	DC,PoE
Power consumption (typical)	6.9 W
Power consumption (max)	25.5 W
DC output voltage	8,9,10,12,15,16,24,28

Operating temperature (T-T)	-50 - 55 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100 %
Storage relative humidity (H-H)	5 - 95 %

Weight	2310 g

Number of cameras	1
Mounting kit	Yes
Manual	Yes
