Produktbeskrivning

This top-of-the-line camera offers remote pan-tilt-roll-zoom functionality so it’s quick and easy to adjust and later readjust the camera view. Plus, it offers support for advanced analytics based on deep learning on the edge.

Remotely adjust the field of view
This advanced camera offers easy installation, maintenance, and operation. Thanks to remote pan-tilt-roll-zoom (PTRZ) functionality you can quickly adjust and later readjust the camera view remotely over the network saving time and effort. Remote PTRZ also gives you the flexibility and possibility to respond to future changes- without the need to dispatch a technician ensuring less disruption and downtime.

Outstanding image quality

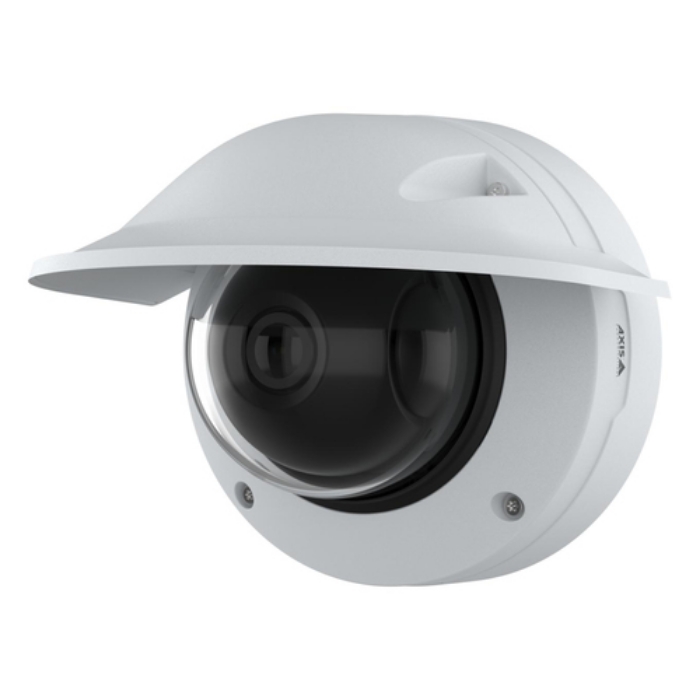

AXIS Q3626-VE offers outstanding image quality and forensic details in 4 MP resolution—even in low light. Plus, Lightfinder 2.0 and Forensic WDR ensure true colors and great detail in challenging light or near darkness. Built on the latest Axis system-on-chip (SoC), it features a deep learning processing unit for improved processing capabilities. This allows you to collect and analyze even more data than before—on the edge. It also delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities. Furthermore, AXIS Object Analytics makes it possible to detect and classify moving objects.

Robust and ready for tough environments
This robust, IK10-rated, vandal-resistant camera is ideal for tough environments and rough weather. Electronic image stabilization ensures smooth video in situations where the camera is subject to vibrations. Plus, it includes sensors for shock-, vibration-, and case-open detection. And a conduit connection ensures flexible cable management. Furthermore, built-in cybersecurity features help prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis products on your network. Plus, it offers secure key storage with FIPS 140-2 level 2 certification.



Viktiga egenskaper

Axis 02616-001. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.06 lx, Lens viewing angle, horizontal: 103 - 52°, Lens viewing angle, vertical: 56.2 - 29.6°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Focal length range: 4.3 - 8.6 mm



Teknisk specifikation

Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
PTZ control	Yes
PTZ modes	Digital PTZ
Wide Dynamic Range (WDR)	Yes
Infrared (IR) cut-off filter	Yes
Day/night mode	Yes
Processor model	ARTPEC-8
Languages support	CHI (SIMPL),CHI (TR),CZE,DEU,DUT,ENG,ESP,FIN,FRE,ITA,JPN,POL,POR,RUS,SWE,THA,TUR,VIE
Number of languages	18

Form factor	Dome
Mounting type	Wall
Product colour	White
Housing material	Aluminium,Polycarbonate (PC)
International Protection (IP) code	IP66
IK code	IK10

Minimum illumination	0.06 lx
Lens viewing angle, horizontal	103 - 52 °
Lens viewing angle, vertical	56.2 - 29.6 °
Tilt angle range	-8 - 75 °
Pan range	0 - 190 °
Camera shutter speed	1/91000 - 1 s

Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/1.8 "
Progressive scan	Yes

Focal length range	4.3 - 8.6 mm
Maximum aperture number	2.4
Minimum aperture number	1.5

Night vision	Yes

Maximum resolution	2688 x 1512 pixels
Video compression formats	H.264,H.265,M-JPEG
Supported graphics resolutions	160 x 120,160 x 90,1280 x 800,2688 x 1512
Frame rate	60 fps
Video streaming	Yes
Text caption overlay	Yes
Privacy masking	Yes
Image stabilizer	Yes
Image quality adjustment	Brightness,Contrast,Saturation,Sharpness

Audio system	2-way
Audio system full duplex	Yes
Audio formats supported	AAC-LC,ADPCM,G.711,G.726,LPCM,OPUS,PCM
Sample rate	48 kHz
Voice codecs	AGC
Audio detection	Yes

Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Networking standards	IEEE 802.1x,IEEE 802.3at
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSb , HTTP/2, TLSb , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v
Quality of Service (QoS) support	Yes

Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Flash memory	8192 MB
Internal memory	2048 MB

Ethernet LAN (RJ-45) ports	1
Microphone in	Yes
DC-in jack	Yes

Password protection	Yes
HTTPS encryption	Yes
Alert notification type	E-mail
Video motion detection	Yes
IP address filtering	Yes

Power source type	DC,PoE
Power consumption (typical)	7 W
Power consumption (max)	25 W
DC output voltage	10,28

Operating temperature (T-T)	-50 - 55 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100 %
Storage relative humidity (H-H)	5 - 95 %

Height	141 mm
Diameter	184 mm
Weight	2100 g

Number of cameras	1
Mounting brackets included	Yes
Manual	Yes

Warranty period	5 year(s)
Doesn't contain	BFR,PVC
