Produktbeskrivning

This multisensor camera offers 29 MP at 30 fps to deliver ultra-high overviews with no blind spots - perfect when you don’t want to miss a thing. Plus, a deep learning processing unit enables the use of advanced analytics.

Ultra clear overview with no blind spots
With up to 8K horizontal resolution at 30 fps, this multisensor camera offers seamless stitching of all four images to deliver smooth and cohesive 180° panoramic overviews for complete situational awareness. It offers 180° horizontal coverage and 90° vertical coverage with no blind spots. With Axis Forensic WDR, it captures high-quality images even when there’s both dark and light areas in the scene. Thanks to lossless zoom, it’s possible to zoom in without degrading image sharpness—ideal when tracking objects across great distances. In addition, edge-to-edge technology lets you easily add whatever connectivity devices you need. Furthermore, horizon straightening ensures visually balanced images. Plus, the operator’s viewing experience will be more natural due to the straightened horizon in the image.

Cost-effective and flexible
AXIS Q3839-PVE offers you the benefits of four cameras while paying for just one. That means there’s one camera to install, one cable to draw, one IP address, one video management software (VMS) license, and just one license for any analytics you choose to install. It features built-in motors for remote pan/tilt/roll functionality and fast, cost-efficient installation. Additionally, it offers a variety of mounting options – on walls, ceilings, or in corridors as flush or pendant.

Powerful and secure AI-based camera
Built on a dual Axis system-on-chip, this AI-powered camera includes a deep learning processing unit (DLPU) so you can run powerful analytics on the edge. For instance, it comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans and types of vehicles. This DLPU also ensures improved processing and storage capabilities so you can collect and analyze even more data than before. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. Plus, it offers secure key storage with FIPS 140-2 Level 2 certified, secure cryptographic key storage and operations.



Viktiga egenskaper

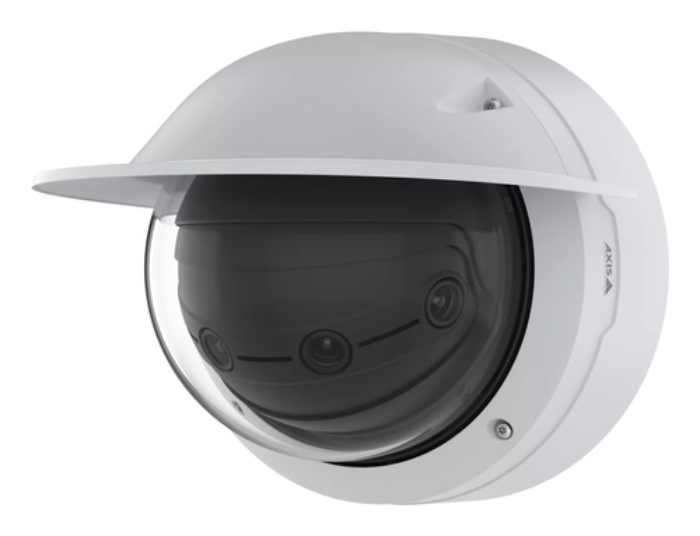

Axis Q3839-PVE. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall/Pole, Product colour: White, Form factor: Dome. Minimum illumination: 0.03 lx, Lens viewing angle, horizontal: 180°, Lens viewing angle, vertical: 90°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Sensor type (panoramic camera): CMOS, Signal-to-Noise Ratio (SNR) (panoramic camera): 55 dB



Teknisk specifikation

Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
PTZ control	Yes
Wide Dynamic Range (WDR)	Yes
Infrared (IR) cut-off filter	Yes
Day/night mode	Yes
Built-in processor	Yes
Processor model	ARTPEC-8
Dynamic range	120 dB

Form factor	Dome
Mounting type	Wall/Pole
Product colour	White
Housing material	Aluminium,Polycarbonate (PC)
International Protection (IP) code	IP66, IP67
IK code	IK10

Camera pan control	Yes
Camera tilt control	Yes
Minimum illumination	0.03 lx
Lens viewing angle, horizontal	180 °
Lens viewing angle, vertical	90 °
Tilt angle range	30 - 88 °
Pan range	-176 - 176 °
Camera pixel size	2 µm
Camera shutter speed	1/8500 - 1/5 s

Sensor type	CMOS
Number of sensors	4
Optical sensor size	1/1.8 "
Progressive scan	Yes

Sensor type (panoramic camera)	CMOS
Signal-to-Noise Ratio (SNR) (panoramic camera)	55 dB

Zoom capability	Yes
Detect distance	88.3 m
Observe distance	35 m
Recognize distance	17.7 m
Lens diameter	4.6 mm
Fixed focus	Yes
Maximum aperture number	1.8
Identify distance	8.8 m

Night vision	Yes
LED type	IR

Maximum resolution	7552 x 3776 pixels
Total megapixels	29 MP
Video compression formats	H.264,H.265,M-JPEG
Video recording	Yes
Frame rate	30 fps
Video streaming	Yes
Noise reduction	Yes
Noise reduction technology	2D noise reduction,3D noise reduction
Gain control type	Auto
Text caption overlay	Yes
Image quality adjustment	Brightness,Contrast,Saturation,Sharpness,White balance

Audio system	1-way

Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Ethernet interface type	Gigabit Ethernet
Networking standards	IEEE 802.1AE,IEEE 802.1ar,IEEE 802.1x,IEEE 802.3af,IEEE 802.3at
Quality of Service (QoS) support	Yes

Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Flash memory	8192 MB
RAM capacity	4096 MB

Ethernet LAN (RJ-45) ports	1
Microphone in	Yes
Terminal block port	Yes
DC-in jack	Yes

Network access storage (NAS)	Yes
Video motion detection	Yes
Active tampering alarm	Yes

Cloud-managed	Yes

Power source type	DC,PoE
Power consumption (typical)	9.74 W
Power consumption (max)	19.1 W
DC output voltage	12
DC output current	0.05 A

Operating temperature (T-T)	-40 - 50 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100 %
Storage relative humidity (H-H)	5 - 95 %

Weight	3320 g

Number of cameras	1
Mounting kit	Yes
Drilling template included	Yes
Manual	Yes
