Produktbeskrivning

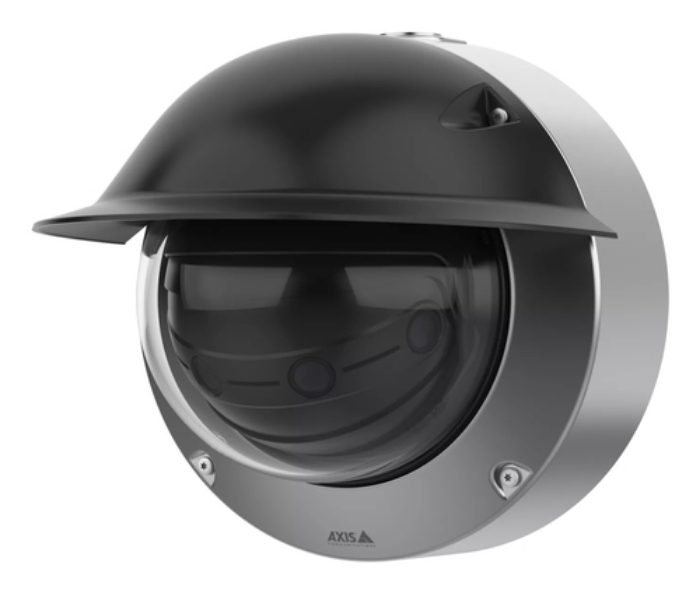

Enclosed in a marine-grade stainless steel casing, this AI-powered, multisensor camera is made for the toughest conditions. It delivers ultra-high 180° panoramic overviews with no blind spots for complete situational awareness.

Robust and secure in corrosive areas

AXIS Q3839-SPVE comes in a stainless steel (EN1.440 SS 316L) casing and can withstand the corrosive effects of seawater, making it ideal for wide area surveillance in marine environments such as on ships and in harbors. Plus, it can operate in temperatures from -50 °C to 55 °C (-58 ºF to 131 ºF). Easy to clean and maintain, and resistant to cleaning chemicals, it’s also certified by NSF/ANSI to Standard 169 (Special Purpose Food Equipment and Devices) for use in food processing facilities. What’s more, this robust camera comes with Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and offers FIPS 140-2 Level 2 certified key storage and operations.

Ultra clear overview with no blind spots

Get the benefits of four cameras while paying for just one with this cost-effective device. It ensures fast, cost-efficient installation, and there’s a variety of mounting options available. It offers 180° horizontal coverage and 90° vertical coverage with no blind spots. And with up to 8K horizontal resolution at 30 fps and seamless stitching of all four images, you’ll enjoy smooth and cohesive 180° panoramic overviews. Thanks to lossless zoom, it’s possible to zoom in without degrading image sharpness. Edge-to-edge technology lets you easily add whatever connectivity devices you need. Furthermore, horizon straightening ensures visually balanced images.

AI-powered for valuable insights

Built on a dual Axis system-on-chip, this AI-powered camera includes a deep learning processing unit (DLPU) so you can run powerful features and analytics on the edge. For instance, AXIS Object Analytics can detect, classify, track, and count humans and types of vehicles. This DLPU also ensures improved processing and storage capabilities. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. Furthermore, when AXIS Q3839-SPVE is paired with an Axis radar device, you can take advantage of AXIS Radar Data Visualizer, a powerful application that adds value to and increases the functionality of Axis multisensor cameras.



Viktiga egenskaper

Axis Q3839-SPVE. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: Black, Form factor: Dome. Minimum illumination: 0.03 lx, Lens viewing angle, horizontal: 180°, Lens viewing angle, vertical: 90°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Detect distance: 88.3 m, Observe distance: 35 m, Recognize distance: 17.7 m



Teknisk specifikation

Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
PTZ control	Yes
Wide Dynamic Range (WDR)	Yes
Infrared (IR) cut-off filter	Yes
Day/night mode	Yes
Languages support	Multi
Dynamic range	120 dB
Built-in heater	Yes
Certification	UL/cUL, BIS, CE, KC, VCCI, RCM

Form factor	Dome
Mounting type	Wall
Product colour	Black
Housing material	Plastic
Protection features	Water resistant
International Protection (IP) code	IP66, IP67, IP68, IP69K
IK code	IK10

Minimum illumination	0.03 lx
Lens viewing angle, horizontal	180 °
Lens viewing angle, vertical	90 °
Tilt angle range	30 - 88 °
Pan range	-176 - 176 °
Camera shutter speed	1/8500 - 1/5 s

Sensor type	CMOS
Number of sensors	4
Optical sensor size	1/1.8 "

Zoom capability	Yes
Detect distance	88.3 m
Observe distance	35 m
Recognize distance	17.7 m
Identify distance	8.8 m
Maximum aperture number	1.8
Fixed focal length	4.6 mm

Night vision	Yes

Maximum resolution	7552 x 3776 pixels
Total megapixels	8.3 MP
Video compression formats	H.264,H.265
Frame rate	30 fps
Video streaming	Yes
Noise reduction	Yes
Noise reduction technology	2D noise reduction,3D noise reduction
Automatic gain control	Yes
Image quality adjustment	Brightness,Contrast,Saturation,Sharpness,White balance
Privacy masking	Yes

Built-in speaker(s)	Yes
Audio system	1-way
Audio formats supported	AAC-LC,ADPCM,G.711,G.726,LPCM,PCM
Signal-to-Noise Ratio (SNR)	55 dB
Built-in microphone	Yes
Sample rates	8 - 48 kHz

Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS2, HTTP/ 2, TLS2, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB- II), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHC

Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Flash memory	8000 MB
Internal memory	4000 MB

Ethernet LAN (RJ-45) ports	1
Terminal block port	Yes

Intelligent Video Surveillance (IVS) system features	Crossing line,Line crossing detection
Privacy protection	Yes
Human and vehicle targets classification	Yes
Security algorithms	802.1x RADIUS,EAP-TLS,MSCHAPv2,PEAP
Network access storage (NAS)	Yes

Power source type	DC,PoE
Power consumption (typical)	9.74 W
Power consumption (max)	19.1 W

Operating temperature (T-T)	-40 - 50 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100 %
Storage relative humidity (H-H)	5 - 95 %

Height	195.2 mm
Diameter	256 mm
Weight	4800 g
Package type	Box

Number of cameras	1
User guide	Yes
Wall mounting kit	Yes
Terminal block included	Yes

Iris	Yes

I/O ports	Audio in/out
