Produktbeskrivning

This multisensor camera offers 26 MP at 30 fps to deliver images with high pixel density—perfect when you want to see all the details. Plus, a deep learning processing unit enables the use of advanced analytics.

Ultra clear overviews in great detail
With up to 10K horizontal resolution at 30 fps, this multisensor camera offers seamless stitching of all four images to deliver smooth and cohesive 180° panoramic overviews for complete situational awareness. It offers 180° horizontal coverage, and 45° vertical coverage for great details with high pixel density. With Axis Forensic WDR, it captures high-quality images even when there’s both dark and light areas in the scene. Thanks to lossless zoom, it’s possible to zoom in without degrading image sharpness—ideal when tracking objects across great distances. In addition, edge-to-edge technology lets you easily add whatever connectivity devices you need. Furthermore, horizon straightening ensures visually balanced images. Plus, the operator’s viewing experience will be more natural due to the straightened horizon in the image.

Cost-effective and flexible

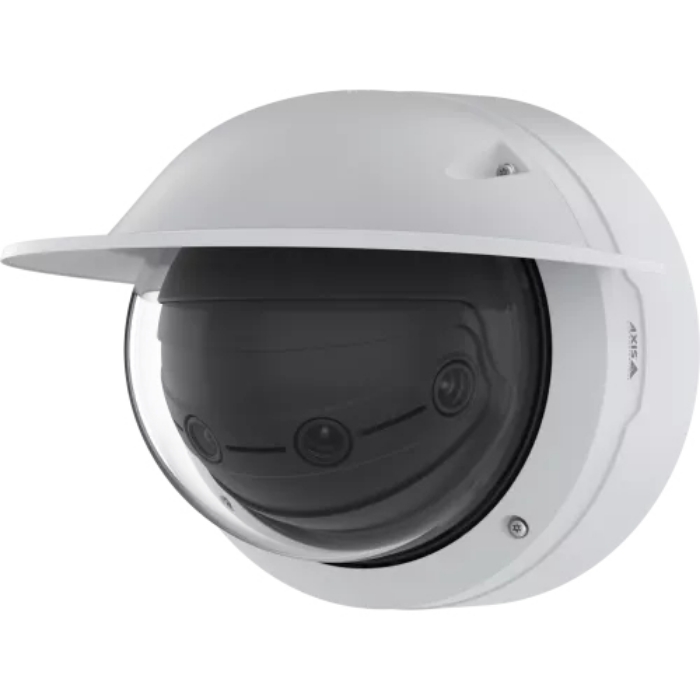

AXIS Q4809-PVE offers you the benefits of four cameras while paying for just one. That means there’s one camera to install, one cable to draw, one IP address, one video management software (VMS) license, and just one license for any analytics you choose to install. It features built-in motors for remote pan/tilt/roll functionality and fast, cost-efficient installation. Additionally, it offers a variety of mounting options – on walls, ceilings, or in corridors as flush or pendant.

Powerful and secure AI-based camera
Built on a dual Axis system-on-chip, this AI-powered camera includes a deep learning processing unit (DLPU) so you can run powerful analytics on the edge. For instance, it comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans and types of vehicles. This DLPU also ensures improved processing and storage capabilities so you can collect and analyze even more data than before. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. Plus, it offers secure key storage with FIPS 140-2 Level 2 certified, secure cryptographic key storage and operations.



Viktiga egenskaper

Axis Q4809-PVE. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.03 lx, Lens viewing angle, horizontal: 180°, Lens viewing angle, vertical: 45°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.3 mm (1 / 2.3"). Detect distance: 130 m, Observe distance: 51.6 m, Recognize distance: 26 m



Teknisk specifikation

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Dynamic range	120 dB

Form factor	Dome
Mounting type	Wall
Product colour	White
International Protection (IP) code	IP66, IP67
IK code	IK10

Minimum illumination	0.03 lx
Lens viewing angle, horizontal	180 °
Lens viewing angle, vertical	45 °
Tilt angle range	20 - 80 °
Pan range	-176 - 176 °
Camera pixel size	1.55 µm
Camera shutter speed	1/100000 - 1/2 s

Sensor type	CMOS
Number of sensors	4
Optical sensor size	1/2.3 "

Detect distance	130 m
Observe distance	51.6 m
Recognize distance	26 m
Identify distance	13 m
Minimum aperture number	1.7
Fixed focal length	5 mm

Night vision	Yes

Maximum resolution	10240 x 2560 pixels
Total megapixels	12 MP
Video compression formats	H.264,H.265,M-JPEG
Frame rate	30 fps
Noise reduction	Yes
Noise reduction technology	2D noise reduction,3D noise reduction

Signal-to-Noise Ratio (SNR)	55 dB

Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Ethernet interface type	Gigabit Ethernet
Networking standards	IEEE 802.1x,IEEE 802.1AE,IEEE 802.3af,IEEE 802.3at
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS2 , HTTP/ 2, TLS2 , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHC

Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Flash memory	8192 MB
RAM capacity	8192 MB

Ethernet LAN (RJ-45) ports	1

Security algorithms	EAP-TLS,PEAP,MSCHAPv2,EAP

Cloud-managed	Yes

Power source type	PoE
Power consumption (max)	19.1 W
Power consumption (Power over Ethernet (PoE))	9.74 W

Operating temperature (T-T)	-40 - 50 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100 %
Storage relative humidity (H-H)	5 - 95 %

Height	195 mm
Diameter	228 mm
Weight	3320 g

Number of cameras	1
