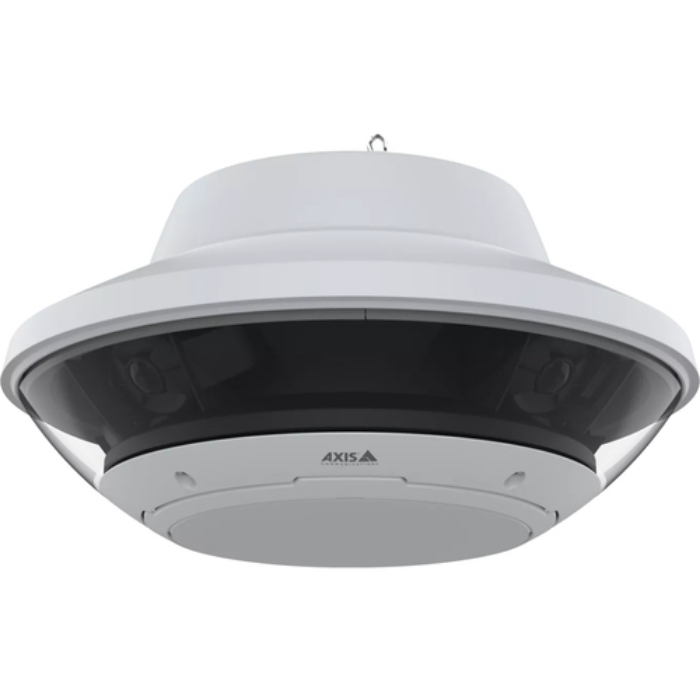

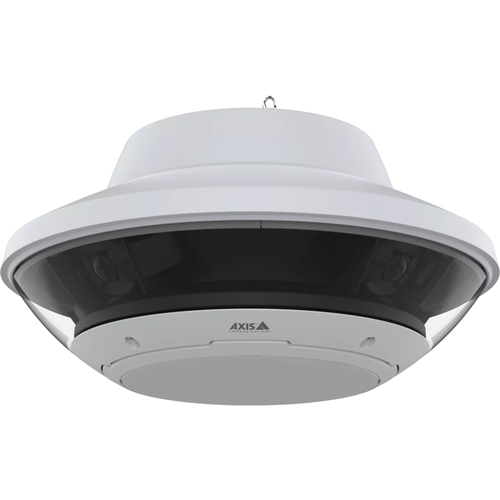

AXIS Q6020-E Panoramic Camera

Designed for operation with AXIS Q60 PTZ Series, this multidirectional camera delivers both 360° overview and great details. With a USB port, installers can insert a Wi-Fi dongle and quickly configure cameras while on site.

See it all

This multidirectional camera offers four 5 MP sensors and delivers 360° overview for total situational awareness. With four ½” sensors, it ensures clear, bright images and better handling of shadows even in challenging light conditions, often reducing the need for IR illumination in dark scenes. This camera is specially designed for operation with AXIS Q60 PTZ Series to capture high-resolution overviews and great details in one complete camera solution. You can move from overview to zoomed-in detailed views with just one mouse click and autopilot enables automatic PTZ tracking. It’s also easy to change lenses and adjust the field of view. For instance, you can use a wide-angle lens to monitor wide open areas, or a tele lens to get great details from a distance.

Powerful and secure

Built on a dual system-on-chip (SoC), this powerful camera features a deep learning processing unit (DLPU) that lets you run advanced features and powerful analytics at the edge. For instance, it comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans and types of vehicles. This DLPU also delivers valuable metadata facilitating efficient forensic search capabilities in live or recorded video. Axis Edge Vault safeguards the device and protects sensitive information from unauthorized access. Plus, it offers secure key storage with FIPS 140-2 Level 2 certified. Furthermore, privacy masking with mosaic lets you pixelate whole areas of the scene.

Cost-efficient installation and operation

Using the same bracket, power supply, and network cable as the integrated PTZ camera, there's no extra equipment required for AXIS Q6020-E. With four camera heads in one camera, it ensures fast, accurate, and cost-effective installation. It also features a USB port so installers can insert a Wi-Fi dongle and quickly see the camera view as they adjust it. This makes it easy to configure cameras while on site. Autofocus and auto-alignment functionality let you automatically adjust the camera sensors and PTZ camera, eliminating the need for hands-on fine-tuning. Furthermore, Axis Zipstream significantly lowers bandwidth and storage requirements without compromising image quality.



Viktiga egenskaper

Axis Q6020-E 50Hz. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.03 lx, Angle of rotation: 190°, Lens viewing angle, horizontal: 360°. Sensor type: CMOS, Optical sensor size: 25.4 / 2 mm (1 / 2"). Detect distance: 46.1 m, Observe distance: 19.4 m, Recognize distance: 10 m



Teknisk specifikation

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
PTZ control	Yes
Auto-tracking	Yes
Wide Dynamic Range (WDR)	Yes
Infrared (IR) cut-off filter	Yes
Day/night mode	Yes
Certification	UL/cUL, CE, KC, EAC, VCCI, RCM, TAA

Form factor	Dome
Mounting type	Ceiling
Product colour	Black,White
LED indicators	Yes
Housing material	Aluminium,Polycarbonate (PC),Polymer
International Protection (IP) code	IP66
IK code	IK10

Camera pan control	Yes
Camera tilt control	Yes
Minimum illumination	0.03 lx
Angle of rotation	190 °
Lens viewing angle, horizontal	360 °
Lens viewing angle, vertical	84 °
Tilt angle range	-40 - 75 °
Pan range	-180 - 180 °
Camera pixel size	2.9 µm
Camera shutter speed	1/66500 - 2 s
Number of Privacy masking areas	32

Sensor type	CMOS
Number of sensors	4
Optical sensor size	1/2 "
Progressive scan	Yes

Number of lenses	4
Zoom capability	Yes
Detect distance	46.1 m
Observe distance	19.4 m
Recognize distance	10 m
Lens diameter	3.7 mm
Auto focus	Yes
Identify distance	5.1 m
Maximum aperture number	2
Closest focusing distance	1 m

Maximum resolution	2592 x 1944 pixels
Total megapixels	5 MP
Video compression formats	AVC,H.264,H.265,HEVC,M-JPEG,MPEG4
Supported graphics resolutions	320 x 240,2592 x 1944
Frame rate	30 fps
Video streaming	Yes
Noise reduction	Yes
Noise reduction technology	2D noise reduction,3D noise reduction
Image quality adjustment	Brightness,Contrast,Saturation,Sharpness,White balance
Text caption overlay	Yes
Bit rate control	Variable Bit Rate (VBR)

Signal-to-Noise Ratio (SNR)	55 dB

Ethernet LAN	Yes
Networking standards	IEEE 802.1AE,IEEE 802.1x,IEEE 802.3bt
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4
Streaming method	Multicast

Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Flash memory	8000 MB
RAM capacity	8000 MB

Ethernet LAN (RJ-45) ports	1
USB port	Yes

Alert notification type	E-mail
Human and vehicle targets classification	Yes
Security algorithms	EAP-TLS,HTTPS,MSCHAPv2,PEAP,TLS
Privacy protection	Yes
Video motion detection	Yes

Behavior analysis	Line crossing detection

Power source type	PoE
Power consumption (typical)	14.3 W
Power consumption (max)	47.3 W

Operating temperature (T-T)	-50 - 55 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100 %
Storage relative humidity (H-H)	5 - 95 %

Width	361 mm
Depth	361 mm
Height	179.1 mm
Weight	4000 g

Number of cameras	1

Doesn't contain	CFR,PVC/BFR
Compliance certificates	REACH,RoHS
