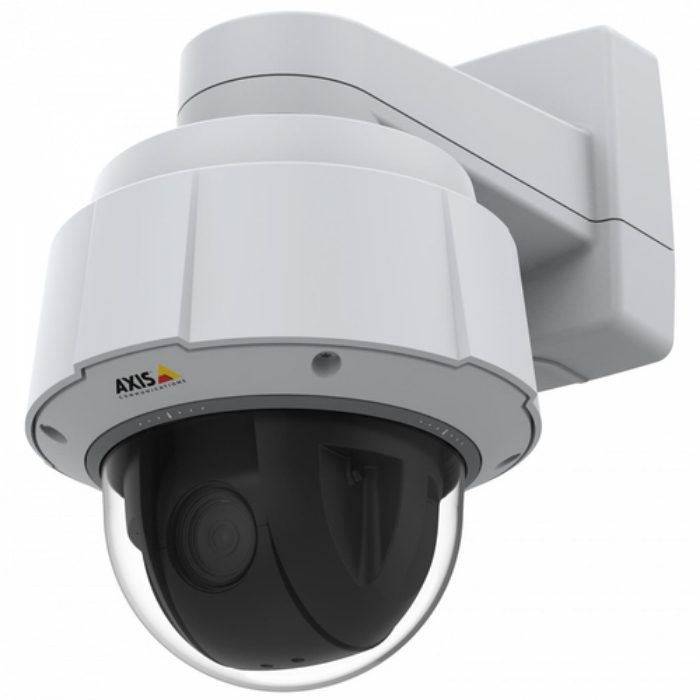

AXIS Q6075-E PTZ Network Camera

This robust, high-performance PTZ camera offers superior light-sensitivity for clear, sharp overviews and excellent details in demanding light conditions. It's ideal for mission-critical surveillance in wide, outdoor areas such as cities, industrial and critical infrastructure applications. Featuring the new generation Axis chip, it includes enhanced security features such as signed firmware and secure boot.

Superior details in demanding light conditions

AXIS Q6075-E delivers superior video quality in HDTV 1080p and 40x optical zoom for excellent details. It features Axis Lightfinder 2.0 which captures low-light images with more saturated colors and sharper images of moving objects. And, Zipstream with support for H.264 and H.265 preserves all the important forensic detail you need, while significantly lowering bandwidth and storage requirements.

Whenever, wherever it's needed

This high-performance outdoor PTZ camera with IP66/67, NEMA 4X, and IK10-ratings is protected from dust, rain, snow and impacts. Arctic temperature control ensures startup from a deeply frozen state and operation in temperatures ranging from -40 °C to 50 °C (-40 °F to 122 °F). Autotracking 2 with click and track functionality and an orientation aid allows for active object tracking and quick orientation. AXIS Q6075-E comes with AXIS Guard Suite analytics for detecting motion, intrusion and loitering. Furthermore, where privacy must be kept, privacy masking with mosaic lets you pixelate whole areas such as a neighboring property.

Keeping you secure

This high-performance camera is packed with advanced security functionality to prevent unauthorized access and safeguard your system. Signed firmware ensures that only authorized firmware is installed and guarantees that it hasn't been compromised. And if needed, secure boot guarantees that the camera is completely free of malware after a factory default. For added peace of mind, it includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified. This module ensures secure storage of all cryptographic keys and certificates even in the event of a security breach.



Viktiga egenskaper

Axis 01752-012. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wireless. Mounting type: Wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.1 lx, Lens viewing angle, horizontal: 65.1 – 2.00, Lens viewing angle, vertical: 39.1 – 1.18. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 40x, Digital zoom: 12x, Focal length range: 4.25 - 170 mm



Teknisk specifikation

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wireless
PTZ control	Yes
Auto-tracking	Yes
Tour recording	Yes
Preset points	Yes
Wide Dynamic Range (WDR)	Yes
Infrared (IR) cut-off filter	Yes
Day/night mode	Yes
Processor model	ARTPEC-7
Number of languages	11
Languages support	CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN,KOR,POR,RUS

Form factor	Dome
Mounting type	Wall
Product colour	Black,White
Housing material	Aluminium,Polycarbonate (PC)
International Protection (IP) code	IP66, IP67
IK code	IK10

Camera pan control	Yes
Camera tilt control	Yes
Minimum illumination	0.1 lx
Lens viewing angle, horizontal	65.1 – 2.00 °
Lens viewing angle, vertical	39.1 – 1.18 °
Tilt angle range	0 - 220 °
Tilt speed	450 °/sec
Pan range	0 - 360 °
Pan speed	450 °/sec
Camera shutter speed	1/11000 - 1/3 s

Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/2.8 "
Progressive scan	Yes

Number of lenses	1
Zoom capability	Yes
Optical zoom	40 x
Digital zoom	12 x
Focal length range	4.25 - 170 mm
Auto focus	Yes
Maximum aperture number	4.95
Minimum aperture number	1.6

Night vision	Yes

Maximum resolution	1920 x 1080 pixels
Video compression formats	H.264,H.265
Supported graphics resolutions	320 x 180,1920 x 1080 (HD 1080)
Supported video modes	1080p
Video recording	Yes
Frame rate	60 fps
Video streaming	Yes
Privacy masking	Yes
Image quality adjustment	Brightness,Colour depth,Sharpness
Back Light Compensation (BLC)	Yes
Text caption overlay	Yes

Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Networking standards	IEEE 802.1x
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTP/2, HTTPSa , TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v
Quality of Service (QoS) support	Yes

Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	SD,SDHC,SDXC
Flash memory	512 MB
Internal memory	1024 MB

Ethernet LAN (RJ-45) ports	1

Password protection	Yes
HTTPS encryption	Yes
Digest authentication	Yes
IP address filtering	Yes
Pixel counter	Yes
Video motion detection	Yes
Alert notification type	E-mail

Power source type	AC,PoE
AC input voltage	100 - 240 V
Power consumption (typical)	14 W
Power consumption (max)	66.1 W
Power consumption (Power over Ethernet (PoE))	60 W

Operating temperature (T-T)	-20 - 50 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100 %
Storage relative humidity (H-H)	5 - 95 %

Height	271 mm
Diameter	232 mm
Weight	3750 g

Number of cameras	1
Manual	Yes

Warranty period	5 year(s)
Doesn't contain	PVC
