Produktbeskrivning

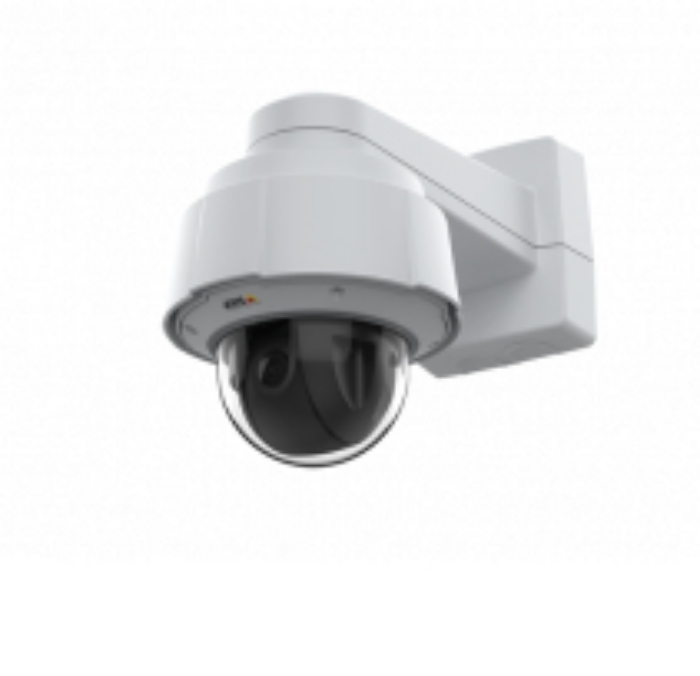

AXIS Q6078-E PTZ Camera offers UHD 4K with 20x optical zoom for outstanding video quality. It offers great overviews and detail with the clearest, sharpest colors. This high-performance outdoor PTZ camera comes with autotracking 2 with click and track functionality, as well as an orientation aid for active object tracking and quick orientation. Featuring built-in cybersecurity such as signed firmware and secure boot it ensures the integrity and authenticity of the firmware. Axis Zipstream with H.264/ H.265 significantly reduces bandwidth and storage requirements. Furthermore, AXIS Object Analytics offers highly granular and nuanced object classification.



Viktiga egenskaper

Axis 02147-002. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Dome. Lens viewing angle, horizontal: 68.3°, Lens viewing angle, vertical: 42.1°, Tilt angle range: 0 - 220°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.5 mm (1 / 2.5"). Optical zoom: 20x, Digital zoom: 12x, Lens diameter: 8.84 cm



Teknisk specifikation

Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
PTZ control	Yes
PTZ modes	Preset point
Tour recording	Yes
Wide Dynamic Range (WDR)	Yes
Number of languages	11
Languages support	CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN,KOR,POR,RUS

Form factor	Dome
Mounting type	Wall
Product colour	White
Housing material	Acrylonitrile styrene acrylate (ASA),Metal,Polycarbonate (PC)
International Protection (IP) code	IP66, IP67
IK code	IK10

Lens viewing angle, horizontal	68.3 °
Lens viewing angle, vertical	42.1 °
Tilt angle range	0 - 220 °
Tilt speed	450 °/sec
Pan range	0 - 360 °
Pan speed	450 °/sec
Camera shutter speed	1/10000 - 1 s

Sensor type	CMOS
Optical sensor size	1/2.5 "
Progressive scan	Yes

Number of lenses	1
Zoom capability	Yes
Optical zoom	20 x
Digital zoom	12 x
Lens diameter	88.4 mm
Focal length range	2.0 - 3.8 mm
Auto focus	Yes

Maximum resolution	3840 x 2160 pixels
Video compression formats	H.264,H.265,M-JPEG
Supported graphics resolutions	320 x 180
Supported video modes	2160p
Video recording	Yes
Frame rate	60 fps
Video intelligence analytic	Yes
Video streaming	Yes
Time stamp overlay	Yes
Text caption overlay	Yes

Ethernet LAN	Yes
Supported network protocols	IPv4, IPv6 USGv6, HTTP, HTTP/2, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, NTCIP, LLDP,

Built-in HDD	Yes
HDD capacity	2 GB
Card reader integrated	Yes
Compatible memory cards	SD,SDHC,SDXC

Ethernet LAN (RJ-45) ports	2

Security algorithms	EAP-TLS,HTTPS
HTTPS encryption	Yes
IP address filtering	Yes
Pixel counter	Yes

Power source type	AC
AC input voltage	100 - 240 V
Power consumption (typical)	18 W
Power consumption (max)	66.1 W

Operating temperature (T-T)	-50 - 50 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100 %

Height	271 mm
Diameter	232 mm
Weight	3750 g

Number of cameras	2
Cables included	LAN (RJ-45)

Harmonized System (HS) code	85258900
