Produktbeskrivning

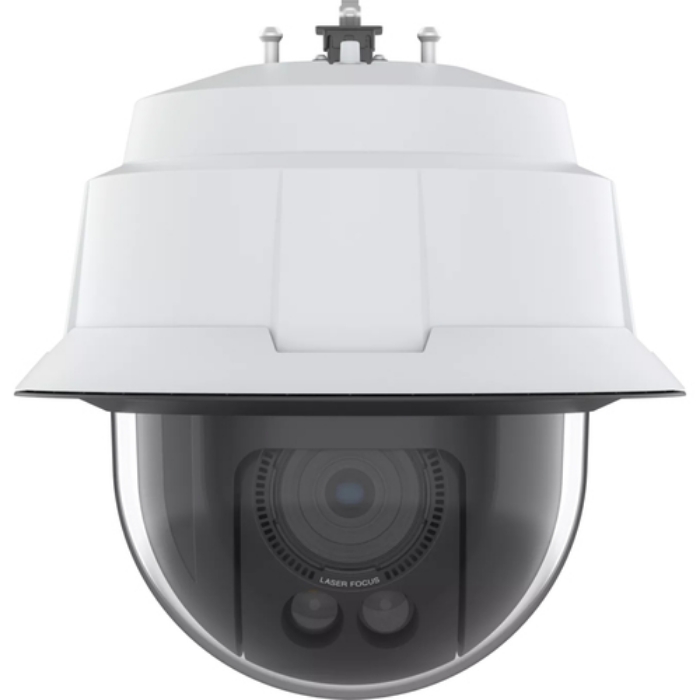

AXIS Q6086-E PTZ Camera

This extremely light-sensitive, AI-powered camera offers excellent image quality and laser focus for precise focus every time. It supports AV1 codec and provides accelerated performance to run impressive analytics applications on the edge.

Superior details and light sensitivity

Built on ARTPEC-9, this next-generation outdoor camera offers outstanding video quality in 4 MP at 60 fps. It features an extremely light-sensitive ½” sensor to deliver clear, bright images and better handling of shadows. With 34x optical zoom, you can easily follow fast-moving objects. Plus, laser focus ensures precise focus every time. Lightfinder 2.0 and Forensic WDR deliver true colors and great detail in challenging light or near darkness. Furthermore, Axis Zipstream with support for AV1, H.264, and H.265 significantly lowers bandwidth and storage requirements.

Powerful, next-generation analytics

Featuring a deep learning processing unit (DLPU), this AI-based camera runs advanced features and powerful analytics on the edge. It also delivers valuable metadata, facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. AXIS Object Analytics comes preinstalled to detect, classify, track, and count humans, vehicles, and different types of vehicles. It also comes with AXIS Image Health Analytics. Autotracking 2 with click-and-track functionality enables active object tracking, and an orientation aid enables dynamic text overlays. What’s more, chameleon masking safeguards privacy.

Robust with strong cybersecurity

Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and offers FIPS 140-3 Level 3 certified secure key storage and operations. With IP66-, IK10-, NEMA 4x, and NEMA TS2-ratings, it’s both impact and weather-resistant. The camera’s operating temperature is -50 to 50 °C (-58 to 122 °F), while Arctic Temperature Control allows it to power up at as low as -40 °C (-40 °F). With shock detection, you'll be informed if the camera has been hit. And defog functionality ensures clear images despite fog or smog. Furthermore, it offers support for fiber connection, PoE, audio, four I/O ports, and smart restart with the included midspan.



Viktiga egenskaper

Axis Q6086-E PTZ. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Black, Form factor: Dome. Minimum illumination: 0.009 lx, Lens viewing angle, horizontal: 61.5°, Lens viewing angle, vertical: 37.3°. Sensor type: CMOS, Optical sensor size: 25.4 / 2 mm (1 / 2"). Optical zoom: 32x, Digital zoom: 12x, Focal length range: 6.64 - 225.5 mm



Teknisk specifikation

Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
PTZ control	Yes
PTZ modes	Preset point
Auto-tracking	Yes
Tour recording	Yes
Preset points	Yes
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Infrared (IR) cut-off filter	Yes
Certification	CE, FCC, ICES, KC, VCCI

Form factor	Dome
Mounting type	Ceiling
Product colour	White,Black
Housing material	Polycarbonate (PC),Aluminium
Protection features	Wear resistant
International Protection (IP) code	IP66
IK code	IK10
Fog proof	Yes

Camera pan control	Yes
Camera tilt control	Yes
Minimum illumination	0.009 lx
Lens viewing angle, horizontal	61.5 °
Lens viewing angle, vertical	37.3 °
Tilt angle range	-90 - 0 °
Tilt speed	500 °/sec
Pan range	0 - 360 °
Pan speed	500 °/sec
Camera pixel size	2.9 µm
Camera shutter speed	1/49500 - 2 s

Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/2 "
Progressive scan	Yes

Number of lenses	1
Zoom capability	Yes
Optical zoom	32 x
Digital zoom	12 x
Focal length range	6.64 - 225.5 mm
Auto focus	Yes
Maximum aperture number	5.1
Minimum aperture number	1.7
Detect distance (wide)	92.6 m
Identify distance (tele)	311.8 m
Identify distance (wide)	9.3 m
Observe distance (tele)	1237.5 m
Closest focusing distance	3 m
Recognize distance (wide)	18.5 m
Observe distance (wide)	36.7 m
Recognize distance (tele)	623.6 m
Detect distance (tele)	3118.4 m

Maximum resolution	2688 x 1512 pixels
Total megapixels	4 MP
Video compression formats	H.264,H.265,MPEG4,H.262,M-JPEG
Supported graphics resolutions	2688 x 1512,640 x 360
Frame rate	60 fps
Video streaming	Yes
Noise reduction	Yes
Noise reduction technology	2D noise reduction,3D noise reduction
Image quality adjustment	Saturation,Contrast,Brightness,Sharpness
Bit rate control	Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Text caption overlay	Yes

Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet,Gigabit Ethernet
Networking standards	IEEE 802.1AE,IEEE 802.1x,IEEE 802.1ar,IEEE 802.3bt
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4
Streaming method	Multicast

Card reader integrated	Yes
Compatible memory cards	SD,SDHC,SDXC
Flash memory	8192 MB
RAM capacity	4096 MB

Ethernet LAN (RJ-45) ports	1

Password protection	Yes
Security algorithms	HTTPS,TLS
Human and vehicle targets classification	Yes
Intelligent Video Surveillance (IVS) system features	Crossing line,Abandoned object
Alert notification type	E-mail
HTTPS encryption	Yes
Pixel counter	Yes

Power source type	PoE
Power consumption (typical)	10 W
Power consumption (max)	51 W

Operating temperature (T-T)	-50 - 55 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100 %
Storage relative humidity (H-H)	5 - 95 %

Width	264 mm
Depth	264 mm
Height	279 mm
Weight	4100 g

Number of cameras	1

Compliance certificates	Trade Agreements Act (TAA),RoHS,REACH
Doesn't contain	PVC/BFR,CFR
