Produktbeskrivning

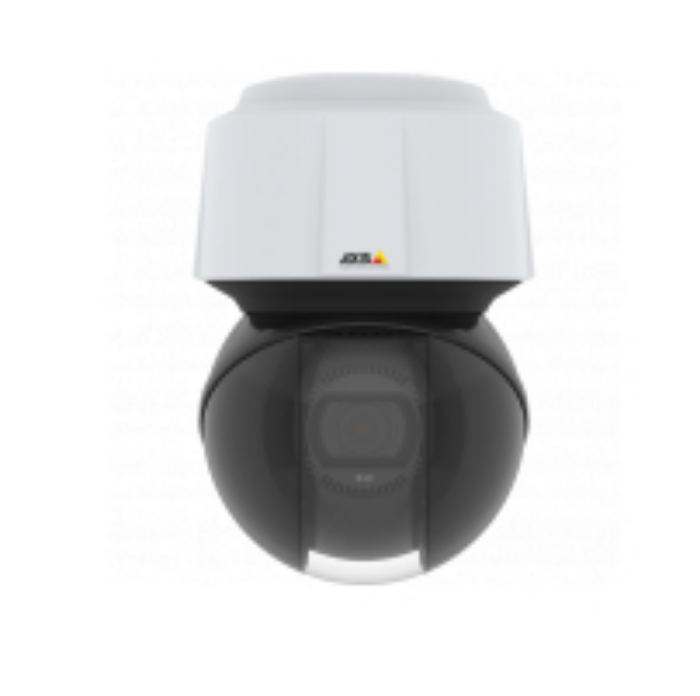

Q6125-LE

AXIS Q6125-LE Network Camera gives you a unique combination of discretion and built-in IR illumination. All in an outdoor-ready camera that delivers the kind of wide-area coverage and flawless detail you expect from a high-performance PTZ from Axis. It’s perfect for any unlit or low-light area – such as parks, harbors, alleys and parking lots – eliminating the need for installing additional lighting. When you want discreet surveillance, 24/7, AXIS Q6125-LE is the right choice. It’s the first PTZ with built-in IR in a compact dome design, enabling unobtrusive surveillance in total darkness (up to 200 m/656 ft or more depending on the scene). Plus, AXIS Q6125-LE is compact and easy to repaint, so it blends right in to any environment. OptimizedIR for PTZ cameras in AXIS Q6125-LE enables seamless adjustment of the camera’s IR LEDs. In other words, the IR illuminations adjusts automatically to suit the precise degree of zoom, so you see exactly what you want to see. Thanks to Sharpdome Technology, AXIS Q6125-LE lets you see as much as 20° above the horizon with the same sharp image quality as below the horizon. This provides a distinct advantage in even slightly uneven terrain. AXIS Q6125-LE features HDTV 1080p and 30x optical zoom. And fast, precise pan-tilt-zoom action provides both wide area coverage and great detail. Axis Lightfinder technology ensures exceptional performance in low-light conditions. While WDR provides excellent forensic detail even in scenes with both extremely dark and extremely bright spots. In addition, speed dry ensures clarity in rainy weather and supports efficient cleaning.

Built-in savings with intelligent protection

Built-in IR in AXIS Q6125-LE means big savings, of course, on expensive lighting. But you’ll save in other ways as well: AXIS Q6125-LE comes with AXIS Guard Suite analytics, including AXIS Fence Guard, AXIS Motion Guard and AXIS Loitering Guard for detecting motion, intrusion and loitering pre-installed.



Viktiga egenskaper

Axis Q6125-LE 50 Hz. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Product colour: Black, White, Form factor: Dome, Housing material: Aluminium. Minimum illumination: 0.008 lx, Lens viewing angle, horizontal: 63.5°, Lens viewing angle, vertical: 38.4°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 30x, Digital zoom: 12x, Focal length range: 4.3 - 129 mm



Teknisk specifikation

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
PTZ control	Yes
Auto-tracking	Yes
Preset points	Yes
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Infrared (IR) cut-off filter	Yes
Languages support	CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN,KOR,POR,RUS
Number of languages	11
Certification	55032 Class A, EN 55024, EN 50121-4, IEC 62236-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR32 Class A, IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, IEC/EN/UL 62471 ris

Form factor	Dome
Product colour	Black,White
Housing material	Aluminium
International Protection (IP) code	IP66
IK code	IK08

Camera pan control	Yes
Camera tilt control	Yes
Minimum illumination	0.008 lx
Lens viewing angle, horizontal	63.5 °
Lens viewing angle, vertical	38.4 °
Tilt angle range	-90 - 20 °
Tilt speed	500 °/sec
Pan range	0 - 360 °
Pan speed	700 °/sec
Camera shutter speed	1/10000 - 1 s

Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/2.8 "
Progressive scan	Yes

Number of lenses	1
Zoom capability	Yes
Optical zoom	30 x
Digital zoom	12 x
Focal length range	4.3 - 129 mm
Auto focus	Yes
Maximum aperture number	4.7
Minimum aperture number	1.6

Night vision	Yes
Night vision distance	200 m
LED type	IR
Infra-red wavelength	850 nm

Maximum resolution	1920 x 1080 pixels
Total megapixels	2 MP
Video compression formats	AVC,H.264,H.265,M-JPEG,MPEG4
Supported graphics resolutions	640 x 360,1920 x 1080 (HD 1080)
Supported video modes	1080p
Frame rate	60 fps
Video streaming	Yes
Noise reduction	Yes
Privacy masking	Yes
Image stabilizer	Yes
Image quality adjustment	Brightness,Sharpness
Back Light Compensation (BLC)	Yes
Text caption overlay	Yes

Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Ethernet interface type	Fast Ethernet
Networking standards	IEEE 802.3at
Cabling technology	10/100Base-T(X)
Quality of Service (QoS) support	Yes
Streaming method	Multicast

Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Flash memory	512 MB

Ethernet LAN (RJ-45) ports	1

Password protection	Yes
HTTPS encryption	Yes
IP address filtering	Yes
Video motion detection	Yes
Alert notification type	E-mail

Power source type	PoE
Power consumption (max)	25 W
Power consumption (Power over Ethernet (PoE))	51 W
Power over Ethernet (PoE)	Yes

Operating temperature (T-T)	-50 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 100 %

Width	165 mm
Depth	165 mm
Height	256 mm
Weight	3000 g

Number of cameras	1

Compliance industry standards	IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, NTCIP

Iris	Yes
Removable IR-cut filter	Yes
