Produktbeskrivning

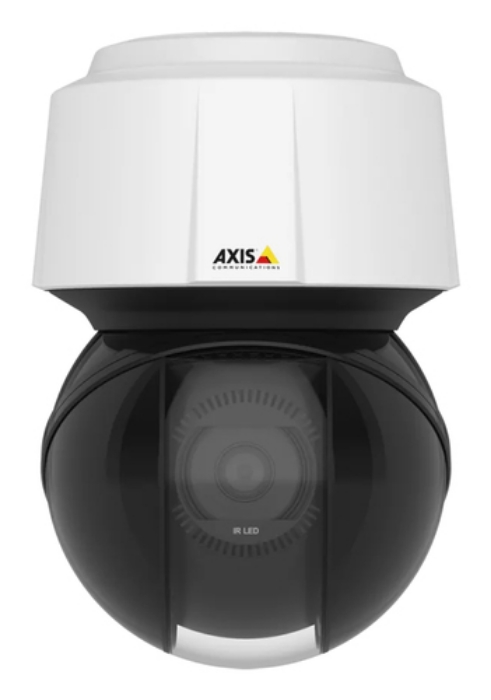

AXIS Q6135-LE offers HDTV 1080p with 32x optical zoom. It features OptimizedIR up to 250 m (820 ft) or more depending on the scene and Lightfinder 2.0 for clear, sharp images even in challenging light. Sharpdome technology allows you to see 20° above the horizon with the same sharp image quality as below. It includes orientation aid and autotracking 2 with click and track functionality. Privacy masking with mosaic lets you pixelate whole areas of the scene. It includes enhanced security features such as signed firmware, secure boot and TPM module. Plus, Axis Zipstream with support for H.264 and H.265.



Viktiga egenskaper

Axis 01958-002. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.01 lx, Tilt angle range: 20 - 90°, Tilt speed: 500 °/sec. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 32x, Digital zoom: 12x



Teknisk specifikation

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
PTZ control	Yes
Tour recording	Yes
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes

Form factor	Dome
Mounting type	Ceiling
Product colour	Black,White
Housing material	Aluminium,Polycarbonate (PC)
International Protection (IP) code	IP66
IK code	IK10

Camera pan control	Yes
Camera tilt control	Yes
Minimum illumination	0.01 lx
Tilt angle range	20 - 90 °
Tilt speed	500 °/sec
Pan range	0 - 360 °
Pan speed	700 °/sec
Camera shutter speed	1/66500 s to 2s s

Sensor type	CMOS
Optical sensor size	1/2.8 "

Zoom capability	Yes
Optical zoom	32 x
Digital zoom	12 x
Auto focus	Yes
Maximum aperture number	4
Minimum aperture number	1.4

Night vision	Yes
Night vision distance	250 m
LED type	IR
Infra-red wavelength	850 nm

Maximum resolution	1920 x 1080 pixels
Video formats supported	H.264,H.265,M-JPEG
Supported graphics resolutions	320 x 180,1920 x 1080 (HD 1080)
Supported video modes	1080p
Video streaming	Yes
Privacy masking	Yes
Image stabilizer	Yes
Text caption overlay	Yes
Image quality adjustment	Brightness,Contrast,Saturation,Sharpness

Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Supported network protocols	IPv4, IPv6 USGv6, HTTP, HTTPSa , HTTP/2, SSL/TLSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, NTCIP, LLDP, MQTT, Sy

Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Flash memory	512 MB
Internal memory	1204 MB

Ethernet LAN (RJ-45) ports	1

Password protection	Yes
IP address filtering	Yes
HTTPS encryption	Yes

Power source type	AC,PoE
AC input voltage	100-240 V
Power consumption (typical)	13.5 W
Power consumption (max)	51 W
Power consumption (Power over Ethernet (PoE))	37 W

Operating temperature (T-T)	-30 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 100 %
Storage relative humidity (H-H)	5 - 95 %

Height	241 mm
Diameter	165 mm
Weight	3000 g

Number of cameras	1

Harmonized System (HS) code	85258900
