Produktbeskrivning

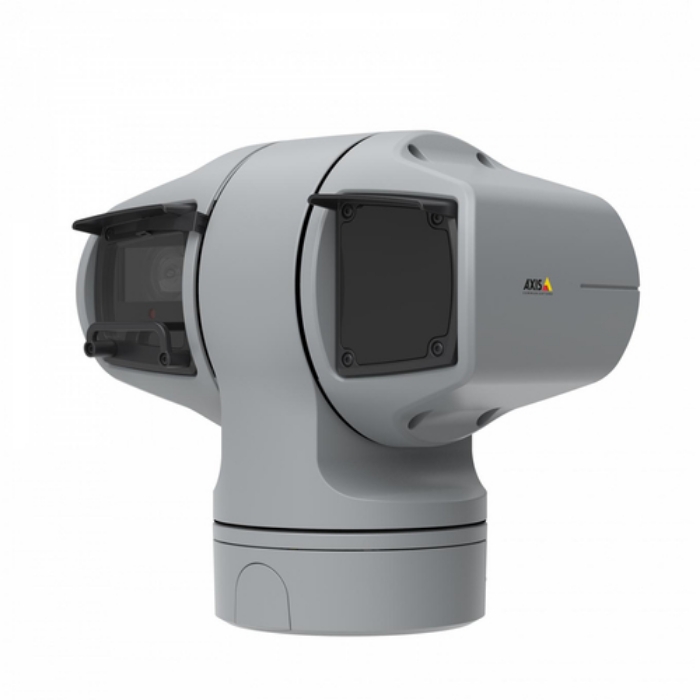

This heavy-duty PTZ camera meets the MIL-STD-810G standard, ensuring reliable operation in the toughest conditions. It offers HDTV 1080p resolution and a 1/2" sensor with 31x optical zoom. Featuring Lightfinder, Forensic WDR, and OptimizedIR it ensures sharp, clear images in any light conditions. This vandal-resistant, IK10-rated camera is resistant to both impacts and harsh weather conditions including wind speed up to 245 km/h (150 mph). It comes with built-in analytics preinstalled to alert you when needed. Additionally, Zipstream with H.264/ H.265 significantly reduces bandwidth and storage requirements without compromising image quality.



Viktiga egenskaper

Axis 02316-002. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: Grey, Form factor: Box. Minimum illumination: 0.05 lx, Lens viewing angle, horizontal: 63.8°, Lens viewing angle, vertical: 37°. Sensor type: CMOS, Optical sensor size: 25.4 / 2 mm (1 / 2"). Optical zoom: 31x, Digital zoom: 12x, Focal length range: 6.91 - 214.64 mm



Teknisk specifikation

Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
PTZ control	Yes
Auto-tracking	Yes
Tour recording	Yes
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Infrared (IR) cut-off filter	Yes
Built-in processor	Yes
Processor model	ARTPEC-7
Number of languages	18
Languages support	CHI (SIMPL),CHI (TR),CZE,DEU,DUT,ENG,ESP,FIN,FRE,ITA,JPN,KOR,POR,RUS,SWE,THA,TUR,VIE
Certification	EN 55032 Class A, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(B), VCCI Class A, RCM AS/NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835

Form factor	Box
Mounting type	Wall
Product colour	Grey
Housing material	Aluminium
International Protection (IP) code	IP66, IP68
IK code	IK10

Camera pan control	Yes
Camera tilt control	Yes
Minimum illumination	0.05 lx
Lens viewing angle, horizontal	63.8 °
Lens viewing angle, vertical	37 °
Tilt angle range	-90 - 90 °
Tilt speed	150 °/sec
Pan speed	150 °/sec
Camera shutter speed	1/111000 - 1/2 s

Sensor type	CMOS
Optical sensor size	1/2 "
Progressive scan	Yes

Zoom capability	Yes
Optical zoom	31 x
Digital zoom	12 x
Focal length range	6.91 - 214.64 mm
Auto focus	Yes
Maximum aperture number	4.6
Minimum aperture number	1.36

Night vision	Yes
Night vision distance	400 m
LED type	IR
Infra-red wavelength	850 nm

Maximum resolution	1920 x 1080 pixels
Video compression formats	H.264,H.265,M-JPEG
Video recording	Yes
Frame rate	50 fps
Video streaming	Yes
Privacy masking	Yes

Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Ethernet interface type	Gigabit Ethernet
Networking standards	IEEE 802.1x,IEEE 802.3bt
Supported network protocols	IPv4/v6, ICMPv4/ICMPv6, HTTP, HTTP/2, HTTPSb, TLSb, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS
Quality of Service (QoS) support	Yes

Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	SD,SDHC,SDXC
Flash memory	512 MB
Internal memory	1024 MB

Ethernet LAN (RJ-45) ports	1

Password protection	Yes
Video motion detection	Yes
HTTPS encryption	Yes
Pixel counter	Yes
IP address filtering	Yes
Network access storage (NAS)	Yes
Digest authentication	Yes

Power source type	PoE
AC input voltage	100 - 240 V
Power consumption (typical)	25 W
Power consumption (max)	71 W

Operating temperature (T-T)	-50 - 55 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100 %

Width	313 mm
Depth	210 mm
Height	330 mm
Weight	8700 g

Number of cameras	1
Cables included	LAN (RJ-45)
Manual	Yes
