Produktbeskrivning

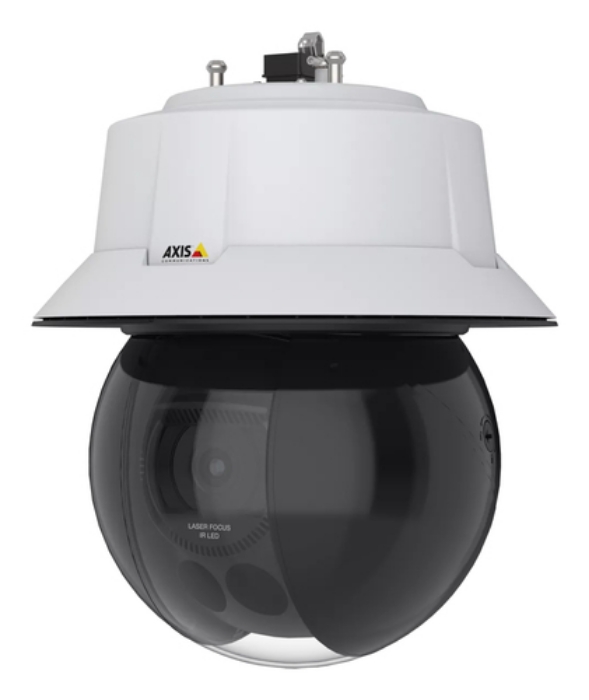

AXIS Q6315-LE is a high-speed PTZ camera offering HDTV 1080p resolution. It features IR illumination and day/night functionality for surveillance in pitch darkness. With 31x optical zoom, laser focus for precise focus and quick-zoom functionality, it allows you to easily follow fast-moving objects. It includes orientation aid and autotracking 2 with click and track functionality. Privacy masking with mosaic lets you pixelate whole areas of the scene. Plus, with chameleon masking, it automatically changes the color in the masking depending on the background color of the image. Furthermore, the TPM module ensures secure storage of all cryptographic keys and certificates.



Viktiga egenskaper

Axis Q6315-LE. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.001 lx, Lens viewing angle, horizontal: 60.6°, Lens viewing angle, vertical: 36.5°. Sensor type: CMOS, Optical sensor size: 25.4 / 2 mm (1 / 2"). Optical zoom: 31x, Digital zoom: 12x, Focal length range: 6.91 - 214.64 mm



Teknisk specifikation

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
PTZ control	Yes
Tour recording	Yes
Preset points	Yes
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Infrared (IR) cut-off filter	Yes
Certification	55032 Class A, EN 55035, IEC 62236-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, CISPR 35, EAC, EN 50121-4, KC KN32 Class A, KC KN35, IEC/EN/UL 6236

Form factor	Dome
Mounting type	Wall
Product colour	Black,White
Housing material	Aluminium,Polycarbonate (PC)
International Protection (IP) code	IP66, IP67
IK code	IK10
Fog proof	Yes

Minimum illumination	0.001 lx
Lens viewing angle, horizontal	60.6 °
Lens viewing angle, vertical	36.5 °
Tilt angle range	-90 - 20 °
Tilt speed	550 °/sec
Pan range	0 - 360 °
Pan speed	550 °/sec
Camera shutter speed	111000 - 1/2 s

Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/2 "
Progressive scan	Yes

Number of lenses	1
Zoom capability	Yes
Optical zoom	31 x
Digital zoom	12 x
Focal length range	6.91 - 214.64 mm
Auto focus	Yes
Maximum aperture number	4.6
Minimum aperture number	1.36

Night vision	Yes
Night vision distance	300 m
LED type	IR
Infra-red wavelength	850 nm

Maximum resolution	1920 x 1080 pixels
Video formats supported	AVC,H.264,H.265,HEVC,M-JPEG,MPEG4
Supported graphics resolutions	320 x 180,1920 x 1080 (HD 1080)
Frame rate	60 fps
Video streaming	Yes
Text caption overlay	Yes
Privacy masking	Yes
Image stabilizer	Yes
Bit rate control	Variable Bit Rate (VBR)
Image quality adjustment	Brightness,Colour depth,Sharpness

Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet,Gigabit Ethernet
Networking standards	IEEE 802.1x,IEEE 802.3bt
Supported network protocols	IPv4, IPv6 USGv6, HTTP, HTTPS , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, SFTP, TCP, RTCP, DHCP, SOCKS, SSH, NTCIP, MQTT v3.1.1, Syslog
Quality of Service (QoS) support	Yes
Streaming method	Multicast

Card reader integrated	Yes
Compatible memory cards	SD,SDHC,SDXC
Flash memory	512 MB

Ethernet LAN (RJ-45) ports	1

Password protection	Yes
HTTPS encryption	Yes
IP address filtering	Yes
Digest authentication	Yes
Security algorithms	EAP-TLS

Behavior analysis	Line crossing detection

Operating temperature (T-T)	-50 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 100 %
Storage relative humidity (H-H)	5 - 95 %

Height	261 mm
Diameter	239 mm
Weight	4800 g

Doesn't contain	PVC
