Produktbeskrivning

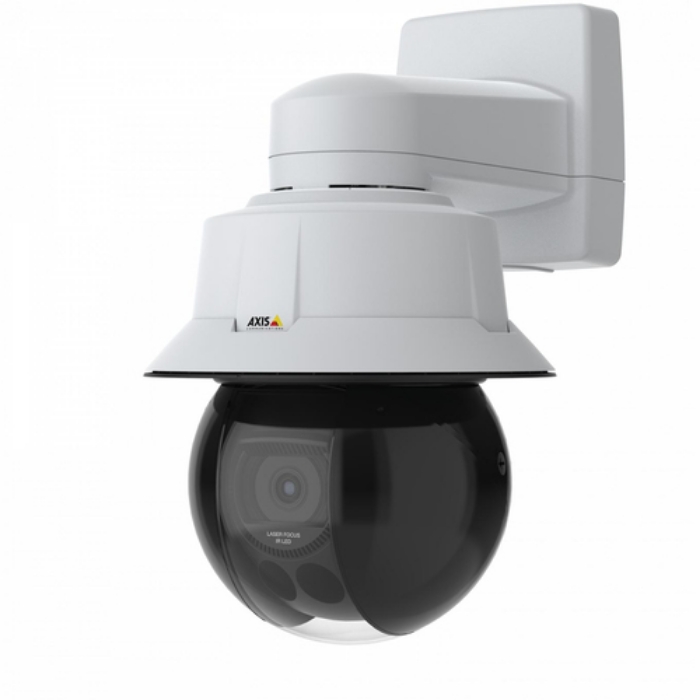

AXIS Q6318-LE offers superior 4K UHD resolution. It features IR illumination and day/night functionality for surveillance in pitch darkness. With a built-in laser, 31x optical zoom, you can easily follow fast-moving objects and quick-zoom makes it move from wide to tele view in just 1 second. This high-speed PTZ camera includes orientation aid and autotracking 2 with click and track functionality. AXIS Object Analytics lets you detect and classify humans and vehicles. Furthermore, it includes a Trusted Platform Module (TPM) that’s FIPS 140-2 level 2 certified.



Viktiga egenskaper

Axis Q6318-LE. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Housing material: Aluminium, Polycarbonate (PC). Minimum illumination: 0.11 lx, Lens viewing angle, horizontal: 58.5°, Lens viewing angle, vertical: 34.9°. Sensor type: CMOS, Optical sensor size: 25.4 / 2 mm (1 / 2"). Optical zoom: 31x, Digital zoom: 12x, Focal length range: 6.91 - 214.64 mm



Teknisk specifikation

Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
PTZ control	Yes
Auto-tracking	Yes
Tour recording	Yes
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Infrared (IR) cut-off filter	Yes
Built-in processor	Yes
Processor model	ARTPEC-7
Languages support	CHI (SIMPL),CHI (TR),CZE,DEU,DUT,ENG,ESP,FIN,FRE,ITA,JPN,KOR,POL,POR,RUS,SWE,THA,TUR,VIE
Number of languages	19
Certification	EN 55032 Class A, EN 55035, IEC 62236-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, CISPR 35, EAC, EN 50121-4, KS C 9832 Class A, KS C 9835

Mounting type	Wall
Product colour	White
Housing material	Aluminium,Polycarbonate (PC)
International Protection (IP) code	IP66, IP67
IK code	IK10

Camera pan control	Yes
Camera tilt control	Yes
Minimum illumination	0.11 lx
Lens viewing angle, horizontal	58.5 °
Lens viewing angle, vertical	34.9 °
Tilt angle range	-90 - 20 °
Tilt speed	500 °/sec
Pan speed	550 °/sec
Camera shutter speed	1/8500 - 1/5 s

Sensor type	CMOS
Optical sensor size	1/2 "
Progressive scan	Yes

Zoom capability	Yes
Optical zoom	31 x
Digital zoom	12 x
Focal length range	6.91 - 214.64 mm
Auto focus	Yes
Maximum aperture number	4.6
Minimum aperture number	1.36

Night vision	Yes
Night vision distance	200 m
LED type	IR
Infra-red wavelength	850 nm

Maximum resolution	3840 x 2160 pixels
Video compression formats	H.264,H.265,M-JPEG
Video recording	Yes
Frame rate	25 fps
Video streaming	Yes
Privacy masking	Yes

Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Ethernet interface type	Gigabit Ethernet
Networking standards	IEEE 802.1x,IEEE 802.3bt
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH,
Quality of Service (QoS) support	Yes

Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	SD,SDHC,SDXC
Flash memory	512 MB
Internal memory	2048 MB

Ethernet LAN (RJ-45) ports	1

Password protection	Yes
Video motion detection	Yes
HTTPS encryption	Yes
Digest authentication	Yes
Network access storage (NAS)	Yes
IP address filtering	Yes

Power source type	PoE
AC input voltage	100 - 240 V
Power consumption (typical)	17 W
Power consumption (max)	51 W

Operating temperature (T-T)	-50 - 50 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100 %
Storage relative humidity (H-H)	5 - 95 %

Height	261 mm
Diameter	239 mm
Weight	4800 g

Number of cameras	1
Manual	Yes
