Produktbeskrivning

Experience exceptional image quality in all lighting conditions with this PTZ camera. Reuse existing mounting accessories for a cost-efficient upgrade to the latest AI-powered analytics and Axis technologies.

Superior surveillance in all light conditions

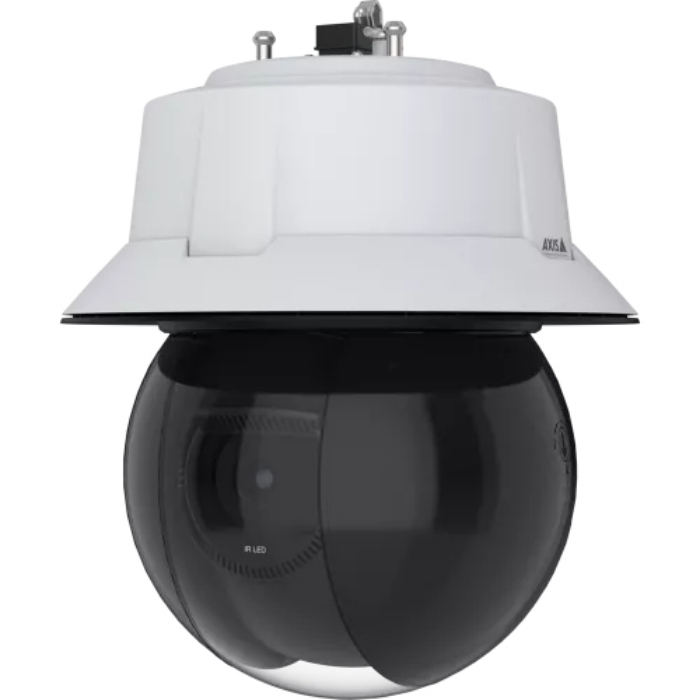

AXIS Q6325-LE offers outstanding 2 MP and features an extremely light-sensitive ½” sensor to deliver clear, bright images and better handling of shadows. Lightfinder 2.0 and Forensic WDR provide details even in challenging light conditions. Plus, OptimizedIR enables surveillance in total darkness. With 31x optical zoom, you can easily follow fast-moving objects. And Axis Zipstream, with support for AV1, H.264, and H.265, significantly lowers bandwidth and storage requirements. Dynamic power mode, together with low power profile, reduces power demands by up to 30% in certain temperature ranges. Furthermore, this camera offers support for audio with a midspan (sold separately) and four I/O ports.

AI-powered with advanced analytics
Built on ARTPEC-9, the latest Axis system-on-chip, this AI-based camera features a deep learning processing unit (DLPU) to run advanced features and powerful analytics on the edge. It also delivers valuable metadata, facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. For instance, it comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans, vehicles, and different types of vehicles. Autotracking 2 allows for active object tracking, and an orientation aid enables dynamic text overlays for quick orientation. In addition, chameleon masking safeguards privacy.

Robust with strong cybersecurity
AXIS Q6325-LE includes Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. And it offers FIPS 140-3 Level 3 certified, secure cryptographic key storage and operations. This IP66-, IK10-, NEMA 4x, and NEMA TS2-rated device is both impact and weather-resistant. Furthermore, a midspan is available (sold separately) with support for fiber connection, PoE, audio, I/O, and smart restart, allowing for cost-effective installation and long-distance connection.



Viktiga egenskaper

Axis Q6325-LE. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.008 lx, Lens viewing angle, horizontal: 60.6°, Lens viewing angle, vertical: 36.5°. Sensor type: CMOS, Optical sensor size: 25.4 / 2 mm (1 / 2"). Signal-to-Noise Ratio (SNR) (panoramic camera): 55 dB



Teknisk specifikation

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
PTZ control	Yes
PTZ modes	Preset point
Tour recording	Yes
Preset points	Yes
Wide Dynamic Range (WDR)	Yes
Infrared (IR) cut-off filter	Yes
Day/night mode	Yes
Certification	EMC EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, CISPR 35, EAC, EN 50121-4 Australia/New Zealand: RCM AS/NZS CISPR 32 Class A Canada: ICES-3(A)/NMB-3(A) Japan: VCCI Class A Korea: KS C 9835, KS C

Form factor	Dome
Mounting type	Ceiling
Product colour	Black,White
Housing material	Aluminium
Protection features	Impact resistant,Weather resistant
International Protection (IP) code	IP66, IP67
IK code	IK10
Weatherproof	Yes

Minimum illumination	0.008 lx
Lens viewing angle, horizontal	60.6 °
Lens viewing angle, vertical	36.5 °
Tilt angle range	-20 - 90 °
Tilt speed	550 °/sec
Pan range	0 - 360 °
Pan speed	550 °/sec
Camera shutter speed	1/111000 - 1/2 s

Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/2 "
Progressive scan	Yes

Signal-to-Noise Ratio (SNR) (panoramic camera)	55 dB

Number of lenses	1
Zoom capability	Yes
Optical zoom	31 x
Digital zoom	12 x
Zoom speed	1 s
Focal length range	6.91 – 214.64 mm
Auto focus	Yes

Night vision	Yes
Night vision distance	300 m
LED type	IR
Infra-red wavelength	850 nm

Maximum resolution	1920 x 1080 pixels
Video formats supported	AVC,H.264,H.265,HEVC,M-JPEG,MPEG4
Supported graphics resolutions	320 x 180
Frame rate	60 fps
Video streaming	Yes
Text caption overlay	Yes
Bit rate control	Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Image quality adjustment	Brightness,Contrast,Sharpness

Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet,Gigabit Ethernet
Networking standards	IEEE 802.1AE,IEEE 802.1x,IEEE 802.3bt
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTCP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, S

Card reader integrated	Yes
Compatible memory cards	SD,SDHC,SDXC
Flash memory	8192 MB
Internal memory	4096 MB

Ethernet LAN (RJ-45) ports	1

Intelligent Video Surveillance (IVS) system features	Line crossing detection,Moving object
Security algorithms	256-bit AES-XTS,EAP-TLS,MSCHAPv2,PEAP

Power consumption (typical)	13.7 W
Power consumption (max)	51 W

Operating temperature (T-T)	-50 - 55 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100 %
Storage relative humidity (H-H)	5 - 95 %

Width	239 mm
Depth	239 mm
Height	291 mm
Weight	4400 g

Number of cameras	1

Compliance certificates	REACH,RoHS
Doesn't contain	CFR,PVC/BFR
