Produktbeskrivning

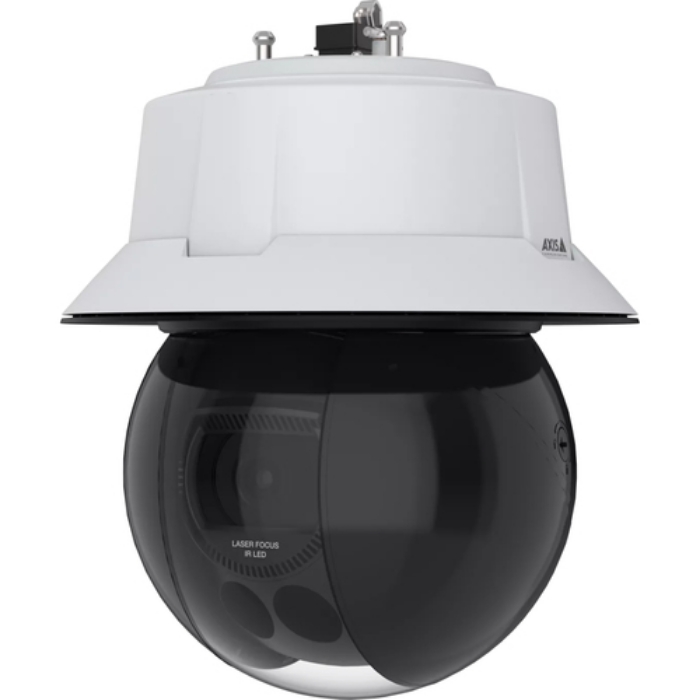

AXIS Q6358-LE PTZ Camera

Built on ARTPEC-9, this high-performance, AI-powered PTZ camera delivers unmatched image quality with great detail and high performance in all light conditions. Axis Edge Vault provides a hardware-based cybersecurity platform that safeguards the device.

Super surveillance

AXIS Q6358-LE offers outstanding 4K UHD and features an extremely light-sensitive ½” inch sensor to deliver clear, bright images and better handling of shadows. Lightfinder and Forensic WDR provide details even in challenging light conditions. Plus, OptimizedIR allows for surveillance in total darkness up to 300 m without the need for extra lighting. With 31x optical zoom and quick zoom, you can easily follow fast-moving objects. Plus, laser focus ensures precise focus– every time. Axis Zipstream with support for AV1, H.264, and H.265 significantly lowers bandwidth and storage requirements without compromising image quality. Furthermore, this PTZ camera offers support for audio and four I/O ports with the included AXIS TU8003 90 W Connectivity Midspan.

Secure inside and out

AXIS Q6358-LE includes Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. And it offers FIPS 140-3 Level 3 certified, secure cryptographic key storage and operations. This IP66-, IK10-, and NEMA 4x-rated device is impact- and weather-resistant. And its defog functionality ensures clear images despite fog or smog. Thanks to shock detection, you can be informed if there's any attempts to interfere with the camera. Furthermore, with support for fiber connection and PoE, it allows for cost-effective installation and long-distance connections.

ARTPEC-9 for unmatched performance

ARTPEC-9 refines the remarkable features and capabilities that characterized previous generations of our in-house-designed SoC: low bitrate, AI-powered analytics, superior imaging, and built-in cybersecurity. It also introduces AV1, an open-source video encoding standard from the Alliance for Open Media. With support for AV1 and enhanced image processing, ARTPEC-9 delivers high-quality video with uncompromised detail and clarity, and best-in-class bitrate. Together with Axis Zipstream, AV1 also ensures hassle-free video both on-prem and in the cloud. What’s more, ARTPEC-9 powers advanced analytics applications that detect objects earlier and analyze events more precisely.

AI-powered with advanced features

Featuring a deep learning processing unit (DLPU), this AI-based camera lets you run advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans, vehicles, and types of vehicles. With AXIS Image Health Analytics preinstalled, you’ll be notified if your image is blocked, degraded, under-exposed, or redirected. It also offers autotracking 2 with click-and-track functionality for active object tracking. And an orientation aid enables dynamic text overlays with street names and a compass symbol for quick orientation. Additionally, where privacy must be kept, chameleon masking makes it possible to automatically change the color of the masking depending on the background color of the image.



Viktiga egenskaper

Axis Q6358-LE NM. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.009 lx, Lens viewing angle, horizontal: 60.6°, Lens viewing angle, vertical: 36.5°. Sensor type: CMOS, Optical sensor size: 25.4 / 2 mm (1 / 2"). Signal-to-Noise Ratio (SNR) (panoramic camera): 55 dB



Teknisk specifikation

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
PTZ control	Yes
PTZ modes	Preset point
Tour recording	Yes
Preset points	Yes
Wide Dynamic Range (WDR)	Yes
Infrared (IR) cut-off filter	Yes
Day/night mode	Yes
Certification	EMC EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, CISPR 35, EAC, EN 50121-4 Australia/New Zealand: RCM AS/NZS CISPR 32 Class A Canada: ICES-3(A)/NMB-3(A) Japan: VCCI Class A Korea: KS C 9835, KS C

Form factor	Dome
Mounting type	Ceiling
Product colour	Black,White
Housing material	Aluminium
Protection features	Impact resistant,Weather resistant
International Protection (IP) code	IP66, IP67
IK code	IK10
Weatherproof	Yes

Minimum illumination	0.009 lx
Lens viewing angle, horizontal	60.6 °
Lens viewing angle, vertical	36.5 °
Tilt angle range	-20 - 90 °
Tilt speed	550 °/sec
Pan range	0 - 360 °
Pan speed	550 °/sec
Camera shutter speed	1/111000 - 1/2 s

Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/2 "
Progressive scan	Yes

Signal-to-Noise Ratio (SNR) (panoramic camera)	55 dB

Number of lenses	1
Zoom capability	Yes
Optical zoom	31 x
Digital zoom	12 x
Zoom speed	1 s
Focal length range	6.91 – 214.64 mm
Auto focus	Yes

Night vision	Yes
Night vision distance	300 m
LED type	IR
Infra-red wavelength	850 nm

Maximum resolution	3840 x 2160 pixels
Video formats supported	AVC,H.264,H.265,HEVC,M-JPEG,MPEG4
Frame rate	60 fps
Video streaming	Yes
Text caption overlay	Yes
Bit rate control	Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Image quality adjustment	Brightness,Contrast,Sharpness

Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet,Gigabit Ethernet
Networking standards	IEEE 802.1AE,IEEE 802.1x,IEEE 802.3bt
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTCP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, S

Card reader integrated	Yes
Compatible memory cards	SD,SDHC,SDXC
Flash memory	8192 MB
Internal memory	4096 MB

Ethernet LAN (RJ-45) ports	1

Intelligent Video Surveillance (IVS) system features	Line crossing detection,Moving object
Security algorithms	256-bit AES-XTS,EAP-TLS,MSCHAPv2,PEAP

Power consumption (typical)	13.7 W
Power consumption (max)	51 W

Operating temperature (T-T)	-50 - 55 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100 %
Storage relative humidity (H-H)	5 - 95 %

Width	239 mm
Depth	239 mm
Height	291 mm
Weight	4400 g

Number of cameras	1

Doesn't contain	CFR,PVC/BFR
Compliance certificates	REACH,RoHS
