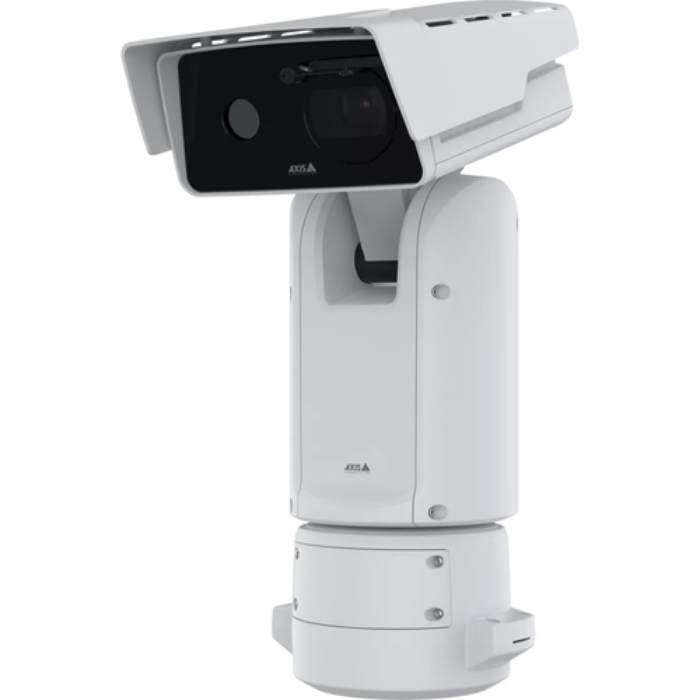

AXIS Q8752-E Mk II Bispectral PTZ Camera

Ideal for perimeter surveillance and border control, this bispectral camera offers reliable thermal detection and visual identification with 32x integrated optical zoom. It’s available in two versions with either 3x thermal zoom or without thermal zoom capabilities.

Always see what you need to see

AXIS Q8752-E Mk II gives you two excellent cameras in one: a thermal camera for reliable detection and verification around-the-clock and in all weather and light conditions, and a visual camera for outstanding visual identification purposes. It offers a ground-to-sky view with a tilt range of -90° to +45° and 360° infinite pan for fast camera repositioning and smooth tracking of objects. Thermal palettes help identify different heat sources emitting the same amount of thermal energy, making it easier and more efficient to interpret a scene. Electronic image stabilization (EIS) on both channels ensures smooth video. Furthermore, Lightfinder 2.0 and Forensic WDR ensure true colors and great detail in challenging light.

Powerful analytics platform

This top-of-the-line camera contains all the functionality you need to track and identify any type of behavior. It includes AXIS Motion Guard, AXIS Fence Guard, and AXIS Loitering Guard for proactive surveillance. Featuring audio and I/O connectivity, you can integrate peripheral equipment, for instance a microphone to extend the value of your system. And edge-to-edge technology lets you connect, for instance, a horn speaker to enable audio alarms that deter, warn, and notify. What’s more, it’s built on a powerful analytics platform, so it’s easy to add Axis as well as custom-made 3rd party analytics.

Robust and secure

This robust camera is packed with advanced security functionality to prevent unauthorized access and safeguard your system. Signed firmware and secure boot guarantee that the firmware hasn’t been compromised and ensure only authorized firmware is installed. For added peace of mind, it includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified. With IP66, NEMA TS2, and IK10 ratings, you can be sure that the camera housing is resistant to both harsh weather conditions and vandalism. Plus, it’s possible to connect AXIS Q8752-E Mk II using fiber optic cabling to overcome distance and bandwidth limitations. With thermal, visual, and PTZ capabilities in one camera, it reduces the need for additional cameras to protect your premises.



Viktiga egenskaper

Axis Q8752-E Mk II 35 mm 30 fps. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Product colour: Black, White, Form factor: Box, Housing material: Aluminium, Glass, Thermoplastic. Minimum illumination: 0.01 lx, Vertical field of view (thermal module): 12.8°, Horizontal field of view (thermal module): 17°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"), Effective sensor resolution (thermal module): 640 x 480 pixels. Optical zoom: 32x, Digital zoom: 12x, Focal length range: 4.3 - 137.6 mm



Teknisk specifikation

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
PTZ control	Yes
Auto-tracking	Yes
Tour recording	Yes
Preset points	Yes
Thermal module	Yes
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Infrared (IR) cut-off filter	Yes
Thermal sensitivity (NETD)	50 mK
Certification	UL/cUL, CE, KC, VCCI, RCM

Form factor	Box
Product colour	Black,White
Housing material	Aluminium,Glass,Thermoplastic
International Protection (IP) code	IP66
IK code	IK10
Fog proof	Yes

Minimum illumination	0.01 lx
Horizontal field of view (thermal module)	17 °
Vertical field of view (thermal module)	12.8 °
Lens viewing angle, horizontal	58.5 °
Lens viewing angle, vertical	35 °
Tilt angle range	-90 - 45 °
Tilt speed	65 °/sec
Pan range	0 - 360 °
Pan speed	120 °/sec
Camera shutter speed	1/66500 - 2 s
Number of Privacy masking areas	32

Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/2.8 "
Effective sensor resolution (thermal module)	640 x 480 pixels
Progressive scan	Yes

Number of lenses	1
Zoom capability	Yes
Optical zoom	32 x
Digital zoom	12 x
Focal length range	4.3 - 137.6 mm
Auto focus	Yes
Minimum aperture number	1.4
Maximum aperture number	4
Fixed focal length	35 mm
Closest focusing distance	31 m
Aperture number (thermal module)	1.2

Maximum resolution	1920 x 1080 pixels
Video formats supported	AVC,H.264,H.265,HEVC,M-JPEG,MPEG4
Frame rate	60 fps
Video streaming	Yes
Image stabilizer	Yes
Text caption overlay	Yes
Bit rate control	Variable Bit Rate (VBR)
Image quality adjustment	Brightness,Contrast,Saturation,Sharpness

Audio system	1-way
Audio formats supported	AAC-LC,ADPCM,G.711,G.726,LPCM,OPUS,PCM
Audio detection	Yes
Sample rates	8 - 48 kHz

Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet,Gigabit Ethernet
Networking standards	IEEE 802.1AE,IEEE 802.1x
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/ DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6,

Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Flash memory	512 MB
Internal memory	2000 MB

Microphone in	Yes
Terminal block port	Yes

Privacy protection	Yes
Video motion detection	Yes
Pixel counter	Yes

Power source type	DC
Power consumption (typical)	25 W
Power consumption (max)	185 W

Operating temperature (T-T)	-40 - 60 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100 %
Storage relative humidity (H-H)	5 - 95 %

Width	229 mm
Depth	360 mm
Height	581 mm
Weight	14900 g

Number of cameras	1
Manual	Yes
Wiper included	Yes

Doesn't contain	PVC
Compliance certificates	REACH,RoHS,Trade Agreements Act (TAA)
