Produktbeskrivning

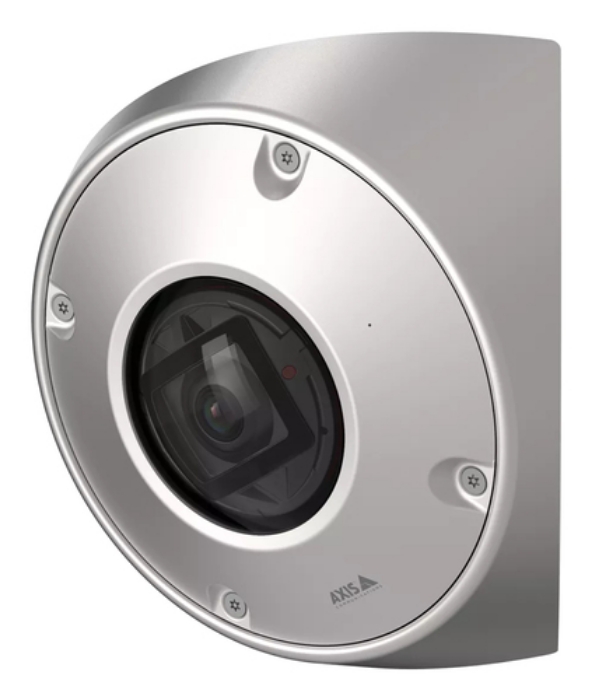

AXIS Q9216-SLV is a compact and robust ligature-resistant (anti-ligature) corner-mount camera that delivers 4 MP video quality. It covers 125 degrees horizontally and 95 degrees vertically, with no blind spots. Featuring invisible IR illumination, it’s ideal for covert video surveillance in complete darkness. With an IK11/IP66 rated casing, it also includes a removable built-in microphone and an indication LED. The camera has polygonal privacy masking, which allows for flexible coverage and helps ensure occupant privacy is respected. Furthermore, signed firmware and a Trusted Platform Module (TPM, FIPS 140-2 level 2 certified) help prevent unauthorized access and safeguard your system.



Viktiga egenskaper

Axis 01767-001. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Lens viewing angle, horizontal: 125°, Lens viewing angle, vertical: 95°, Camera shutter speed: 1/32500 - 1/5 s. Sensor type: CMOS, Optical sensor size: 25.4 / 2.5 mm (1 / 2.5"). Fixed focal length: 2.4 mm



Teknisk specifikation

Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
PTZ control	Yes
Wide Dynamic Range (WDR)	Yes
Infrared (IR) cut-off filter	Yes
Day/night mode	Yes
Certification	EN 50130-4, EN 55032 A, EN 55035, IEC/EN 61000-6-1, IEC/EN 61000-6-2, FCC 15 B A, ICES-3(A)/NMB-3(A), VCCI A, KC KN-32 A, KC KN-35, RCM AS/NZS CISPR 32 A, CISPR 24, CISPR 35 IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, IEC/EN 62471 EN 501

Form factor	Dome
Mounting type	Ceiling/wall
Product colour	White
Housing material	Stainless steel
International Protection (IP) code	IP66, IP69, IP69K
IK code	IK10+

Camera pan control	No
Camera tilt control	No
Minimum illumination	0 lx
Lens viewing angle, horizontal	125 °
Lens viewing angle, vertical	95 °
Camera shutter speed	1/32500 - 1/5 s

Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/2.5 "
Progressive scan	Yes

Number of lenses	1
Fixed focus	Yes
Maximum aperture number	2
Fixed focal length	2.4 mm

Night vision	Yes
Night vision distance	15 m
LED type	IR
Infra-red wavelength	940 nm

Maximum resolution	2304 x 1728 pixels
Video compression formats	AVC,H.264,H.265,HEVC,M-JPEG
Supported graphics resolutions	320 x 240,2304 x 1728
Frame rate	30 fps
Video streaming	Yes
Text caption overlay	Yes
Image quality adjustment	Brightness,Contrast,Saturation,Sharpness
Bit rate control	Variable Bit Rate (VBR)

Audio system	2-way
Audio system full duplex	Yes
Sample rate	48 kHz
Built-in microphone	Yes
Voice codecs	G.711,G.726,OPUS

Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Ethernet interface type	Fast Ethernet
Networking standards	IEEE 802.1x,IEEE 802.3af,IEEE 802.3at
Supported network protocols	IPv4,IPv6 USGv6, HTTP, HTTPS , SSL/TLS , QoS L3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP, SIP

Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Flash memory	512 MB
Internal memory	1024 MB

Ethernet LAN (RJ-45) ports	1
Microphone in	Yes
HDMI ports quantity	1
Terminal block port	Yes

Password protection	Yes
Video motion detection	Yes
HTTPS encryption	Yes
Security algorithms	EAP-TLS,FIPS 140-2

Power source type	PoE
Power consumption (typical)	4.7 W
Power consumption (max)	10.8 W

Width	209 mm
Depth	176 mm
Height	131 mm
Weight	1600 g

Number of cameras	1

Harmonized System (HS) code	85258900
