Produktbeskrivning

This compact and robust ligature-resistant (anti-ligature) camera delivers outstanding 5 MP image quality. It comes with AI-powered video and audio analytics, and a hidden speaker and microphone that allows for two-way audio communication.

Two-way communication and full coverage

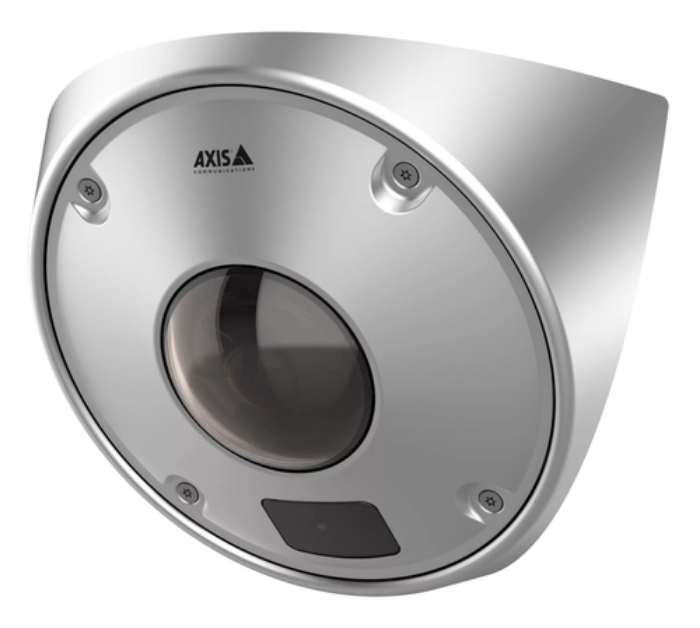

AXIS Q9227-SLV features a hidden speaker and microphone, complete with an on/off switch and voice enhancer, delivering clear two-way audio communication. It offers 5 MP and 115° horizontal and 89° vertical coverage with no blind spots. Ideal in prison cells and psychiatric wards, it includes 940 nm invisible IR illumination for surveillance in total darkness. Plus, a white LED ensures details in color. Thanks to Lightfinder 2.0 and Forensic WDR, this camera delivers true colors and great detail in challenging light or near darkness. What’s more, Axis Zipstream with H.264 and H.265 significantly reduces bandwidth and storage requirements.

AI-powered analytics and strong cybersecurity

Featuring a deep learning processing unit (DLPU), this corner camera can run advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans. With AXIS Audio Analytics you’ll be notified whenever something relevant happens, even when there's no visual indication. For instance, it can detect screams, shouts and coughing fits as well as changes in sound level. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. And it offers FIPS 140-3 Level 3 certified, secure cryptographic key storage and operations.

Occupant safety and privacy

With a ligature-resistant (anti-ligature) design, this robust camera can help prevent self-harm. It comes with built-in invisible IR LEDs (940 nm) for surveillance in complete darkness that doesn’t irritate or provoke the occupant*. It also includes AXIS Live Privacy Shield for AI-based dynamic masking of objects. Available in stainless steel or white colored stainless steel, this robust IK11, IP66-, IP6K9K-, and IP69-rated camera can withstand tough conditions. It’s easy to clean with detergent or graffiti remover. Plus, an indication LED makes it easy to see if the camera is active or not.



Viktiga egenskaper

Axis Q9227-SLV. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Steel, Form factor: Corner. Lens viewing angle, horizontal: 115°, Lens viewing angle, vertical: 89.2°, Tilt angle range: -10 - 10°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.7 mm (1 / 1.7"). Detect distance: 46.1 m, Observe distance: 19.4 m, Recognize distance: 10 m



Teknisk specifikation

Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Infrared (IR) cut-off filter	Yes
Day/night mode	Yes
Built-in light	Yes
Languages support	Multi
Dynamic range	120 dB
Certification	UL, CE, KC, VCCI, RCM, FCC, ICES, WEEE

Form factor	Corner
Mounting type	Ceiling
Product colour	Steel
LED indicators	Yes
Housing material	Polycarbonate (PC),Stainless steel
International Protection (IP) code	IP66, IP69, IP6K9K
Fog proof	Yes

Minimum illumination	0 lx
Lens viewing angle, horizontal	115 °
Lens viewing angle, vertical	89.2 °
Tilt angle range	-10 - 10 °
Camera shutter speed	1/66500 - 2 s

Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/1.7 "

Number of lenses	1
Detect distance	46.1 m
Observe distance	19.4 m
Recognize distance	10 m
Auto focus	Yes
Maximum aperture number	2
Identify distance	5.1 m
Fixed focal length	3.7 mm
Closest focusing distance	1 m

Night vision	Yes
Night vision distance	10 m
B/W night vision distance	10 m
LED type	IR/White
Infra-red wavelength	940 nm

Maximum resolution	2880 x 2160 pixels
Video compression formats	H.264,H.265
Frame rate	30 fps
Video streaming	Yes
Noise reduction	Yes
Noise reduction technology	2D noise reduction,3D noise reduction
Privacy masking	Yes
Image quality adjustment	Brightness,Contrast,Mirror,Saturation,Sharpness,White balance

Built-in speaker(s)	Yes
Audio system	2-way
Audio system full duplex	Yes
Audio formats supported	AAC-LC,ADPCM,G.711,G.726,LPCM,OPUS,PCM
Frequency range	820 - 5075 Hz
Signal-to-Noise Ratio (SNR)	55 dB
Built-in microphone	Yes
Sample rates	8 - 48 kHz

Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Networking standards	IEEE 802.3af,IEEE 802.3at
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS3, HTTP/ 2, TLS3, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB- II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/

Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Flash memory	8000 MB
Internal memory	2000 MB

Ethernet LAN (RJ-45) ports	1
Terminal block port	Yes

Active tampering alarm	Yes
Network access storage (NAS)	Yes
Video motion detection	Yes
Human and vehicle targets classification	Yes
Pixel counter	Yes
Privacy protection	Yes
Security algorithms	EAP-TLS,MSCHAPv2
Intelligent Video Surveillance (IVS) system features	Crossing line,Line crossing detection

Power source type	PoE
Power consumption (max)	3.98 W
Power consumption (Power over Ethernet (PoE))	12.95 W

Operating temperature (T-T)	-20 - 50 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 85 %
Storage relative humidity (H-H)	5 - 95 %

Weight	1740 g
Package type	Box

Number of cameras	1
User guide	Yes
Terminal block included	Yes

Iris	Yes
