Produktbeskrivning

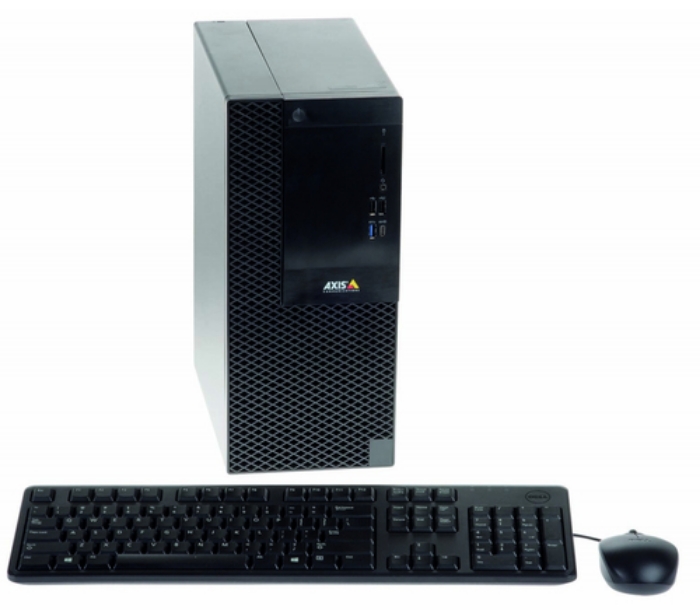

AXIS Camera Station S1116 Recorder

AXIS Camera Station S1116 Recorder is an out-of-the-box, ready-to-use recording solution designed to deliver reliable high-definition surveillance. Available as both a standalone workstation in mini tower form factor for office environments, as well as a rack server for server room installations, this recorder has a storage capacity of up to 24 TB. This easy-to-install solution includes AXIS Camera Station licences for mid-sized installations, so you have everything you need to help ensure every customer installation is trouble-free. From manufacturing facilities to schools and retail, AXIS Camera Station S1116 Recorder meets the requirements of a wide variety of businesses and industries. It’s ideal whenever reliable and secure surveillance is required.

Out-of-the-box, ready-to-use

AXIS Camera Station S1116 Recorder comes with AXIS Camera Station licences and preconfigured software, so out-of-the-box you get seamless and reliable integration to all your Axis network cameras. AXIS Camera Station also allows you to verify system performance at installation, so you can be sure your solution is effective and secure. And with the integrated recording toolbox, you get easy access to a complete end-to-end solution with total control over your entire surveillance system.

Improved performance and reliability

AXIS S1116 provides increased performance and contains a powerful CPU to allow for fast processing of data. The operating system is stored on a Solid-State Drive (SSD) meaning system start-up is fast, and the operating system is safeguarded in the event of failure. Furthermore, with cost-effective, next business day on-site support, and a 2-year extended warranty option, you can depend on Axis first-class quality, reliability and support all the way.

Greater flexibility to meet your needs

AXIS Camera Station S1116 Recorder comes with more storage flexibility, allowing you to customize your system storage to meet your specific requirements. It allows you to add extra hard disks to both the standalone workstation (up to 16 TB total capacity) and the rack server (up to 24 TB total capacity). This solution is also validated to support as many as 16 additional camera licences, so you can easily expand your system as it grows.

AXIS Site Designer

Makes it easy to design and install your system and export all configurations to AXIS Camera Station to eliminate installation mistakes.

Get to know Axis mid-size solutions

Learn how simple it is to protect a mid-size business with a complete, end-to-end security solution from Axis Communications.



Viktiga egenskaper

Axis S1116. Processor family: Intel® Core™ i5, Processor model: 8400. Internal memory: 8 GB. Total storage capacity: 8 TB, Storage media: HDD. On-board graphics card model: Intel® HD Graphics 630. Power supply: 360 W. Product type: Workstation. Weight: 7.4 kg. Product colour: Black



Teknisk specifikation

Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	8th gen Intel® Core™ i5
Processor model	8400
Number of processors installed	1

Internal memory	8 GB

Total storage capacity	8000 GB
Storage media	HDD
Number of storage drives installed	1
Number of storage drives supported	2
Total HDDs capacity	8000 GB
Number of HDDs installed	1
HDD capacity	8000 GB
HDD speed	7200 RPM

Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 630

Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s

USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
DisplayPorts quantity	2
DisplayPort version	1.2
Ethernet LAN (RJ-45) ports	1
Microphone in	Yes
Headphone outputs	1
Serial ports quantity	1

Product colour	Black

Product type	Workstation

Power supply	360 W
Power supply input voltage	100-240 V
Power supply input frequency	50 - 60 Hz

Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 65 °C

Certification	IEC/EN/UL 60950-1 FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B, RCM AS/NZS CISPR 32 Class B, KC KN32 Class B, KN35, EN 55032, EN 55024, EN/IEC 61000-3-2, EN/IEC 61000-3-3, EN 50564, EN 62623, EAC, BSMI, NOM

Width	154 mm
Depth	350 mm
Height	274 mm
Weight	7400 g

Display included	No
Mouse included	Yes
Keyboard included	Yes
Cables included	AC

Harmonized System (HS) code	84715000
