Produktbeskrivning

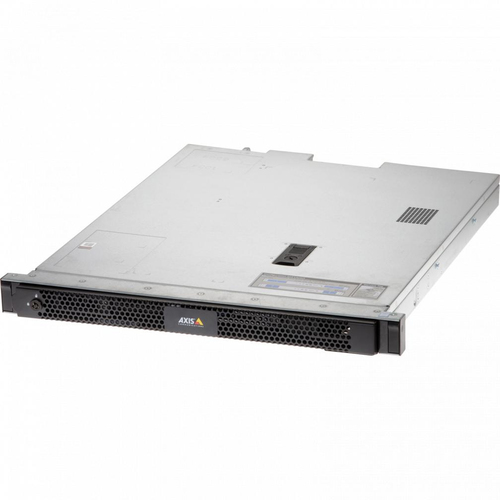

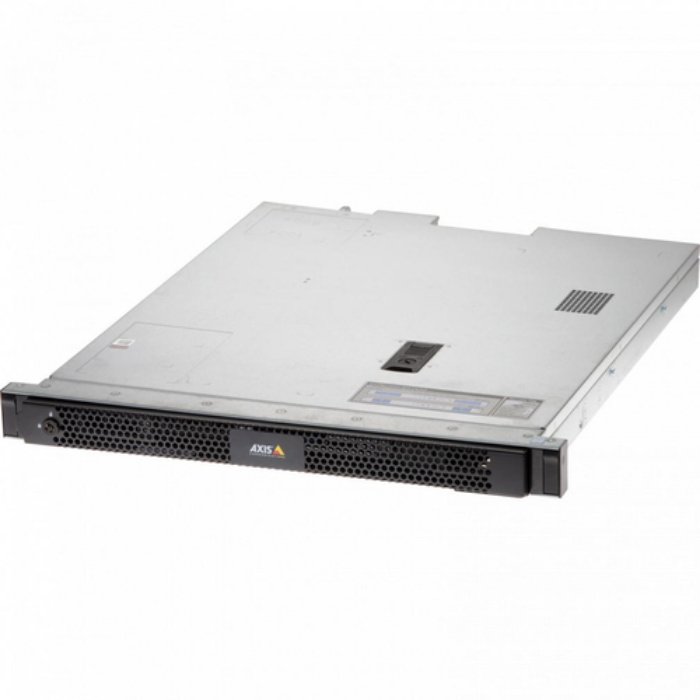

AXIS Camera Station S1116 Recorder is an out-of-the-box ready rack server validated for reliable high-definition surveillance up to 4K. For quick and easy installation, AXIS S1116 is preconfigured and preloaded with AXIS Camera Station video management software including licenses for 16 channels plus all necessary system software. The system configuration can easily be imported from AXIS Site Designer, and AXIS Camera Station lets users take full advantage of Axis wide range of video surveillance devices. With enterprise-grade hard disks, operating system stored on solid-state drive (SSD), and expandable storage capacity, AXIS S1116 provides high-performance and reliability for your system.
Viktiga egenskaper
Axis 01618-001. Internal memory: 8000 MB, Operating system installed: Windows 10 IoT Enterprise. HDD capacity: 8 TB, RAID levels: 0, 1. Ethernet LAN data rates: 1000,10000 Mbit/s, Compatible memory cards: SD. Rack capacity: 1U, Certification: EMC EN 55032 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Subpart B Class A,.... Power consumption (max): 500 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz
Teknisk specifikation
Performance
| Internal memory | 8000 MB |
|---|
| Operating system installed | Windows 10 IoT Enterprise |
|---|
Hard drive
| Number of HDDs installed | 1 |
|---|
| HDD capacity | 8000 GB |
|---|
| Number of HDDs supported | 3 |
|---|
| RAID support | Yes |
|---|
| RAID levels | 0,1 |
|---|
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
|---|
| Ethernet LAN data rates | 1000,10000 Mbit/s |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 3 |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
|---|
| Card reader integrated | Yes |
|---|
| Compatible memory cards | SD |
|---|
Features
| Rack mounting | Yes |
|---|
| Rack capacity | 1U |
|---|
| Certification | EMC
EN 55032 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3,
FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A),
RCM AS/NZS CISPR 32 Class A, VCCI Class A, KC KN 32 Class A,
KC KN 35
Safety
IEC/EN/UL 60950-1, EN 62368-1, NOM, BSMI, E |
|---|
Power
| Power consumption (max) | 500 W |
|---|
| AC input voltage | 100 - 240 V |
|---|
| AC input frequency | 50/60 Hz |
|---|
| Output current | 3.7 A |
|---|
Operational conditions
| Operating temperature (T-T) | 10 - 35 °C |
|---|
| Operating relative humidity (H-H) | 10 - 85 % |
|---|
| Storage temperature (T-T) | -40 - 65 °C |
|---|
Weight & dimensions
| Width | 589 mm |
|---|
| Depth | 482 mm |
|---|
| Height | 43 mm |
|---|
| Weight | 9600 g |
|---|
