Viktiga egenskaper

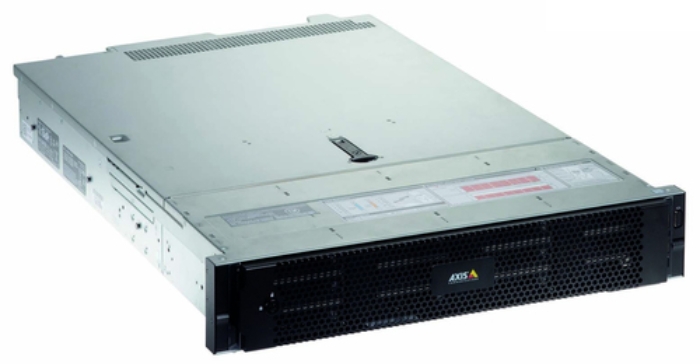

Axis S1148. Video input channels: 64 channels, Operating system installed: Windows 10 IoT Enterprise. HDD capacity: 8 TB, Maximum storage capacity: 96 TB, Total installed storage capacity: 64 TB. Rack capacity: 2U, Product colour: Black, Grey, Certification: EN/IEC/UL 60950-1, FCC part 15 class A, VCCI class A, RCM AS/NZS CISPR 32 Class A, EN 55032, class.... Power consumption (max): 750 W, AC input voltage: 100-240 V, AC input frequency: 50 - 60 Hz. Width: 482 mm, Depth: 681 mm, Height: 87 mm



Teknisk specifikation

Video input channels	64 channels
Operating system installed	Windows 10 IoT Enterprise

Number of HDDs installed	8
HDD capacity	8000 GB
Number of HDDs supported	12
Total installed storage capacity	64000 GB
Maximum storage capacity	96 TB
RAID support	Yes
RAID levels	0,1,5,6,10

Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	2
VGA (D-Sub) output ports	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2

Rack mounting	Yes
Rack capacity	2U
Product colour	Black,Grey
Certification	EN/IEC/UL 60950-1, FCC part 15 class A, VCCI class A, RCM AS/NZS CISPR 32 Class A, EN 55032, class A, ICES-003/NMB-003 Class A, KC KN32 Class A, KN-35, EN 55024, EN/IEC 61000-3-2, EN/IEC 61000-3-3, NOM, BSMI, EAC

Built-in processor	Yes

Power consumption (max)	750 W
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Output current	5 A

Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Storage temperature (T-T)	-40 - 65 °C

Width	482 mm
Depth	681 mm
Height	87 mm
Weight	22300 g

Cables included	AC
