Produktbeskrivning

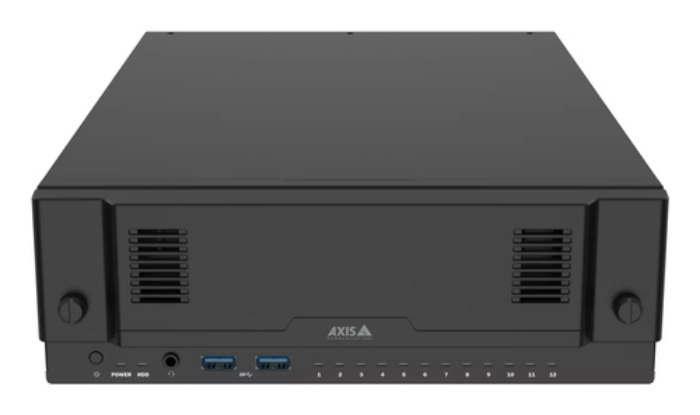

AXIS Camera Station S2212 Mk II Standalone Appliance

This 12-channel standalone appliance includes everything you need to run your complete surveillance system such as AXIS Camera Station Pro licenses, a 12-port PoE switch, and 6 TB of storage. It comes with pre-loaded software and tools to minimize installation time.

Powerful and versatile

This standalone appliance is compact and silent and won’t disturb local operations, ideal for example, in coffee shops, retail stores, and offices. With 12 channels and AXIS Camera Station Pro licenses included, it gives you complete control, and you can run your entire solution on-premises. And, it provides 10 AXIS Audio Manager Pro licenses when installing the software to the server. It comes with one empty bay for easy storage expansion, and support for AXIS Camera Station Cloud Storage if recording in the cloud is preferred. Built using powerful components, it supports AI applications such as Smart search 2. Furthermore, the built-in switch features an additional uplink port for easy and cost-efficient system expansion using AXIS S30 Recorder Series.

Easy to install and maintain

It comes preloaded with software and tools to help you set up and maintain your system. For instance, AXIS Recorder Toolbox includes an intuitive wizard to guide you setting up hostname, network settings in different environments, and date and time settings. It also includes a dashboard providing information on the built-in switch configuration, PoE management functions and troubleshooting tools. This all-in-one device provides everything you need to support your operations and update and maintain your system — all from one supplier. What’s more, advanced replacement service (RMA) and a 5-year hardware warranty ensure trouble-free ownership and better control over total costs.

Created with cybersecurity in mind

This reliable recording solution offers high-security features and standards. It offers an encrypted operating system and recordings with a FIPS 140-2 Level 2 certified TPM. Produced in a TAA-designated country, this appliance complies with NDAA FY19 and comes with a Software Bill of Materials (SBOM), ensuring compliance with strict regulations. Secure boot protects the system and ensures the recorder only runs a trusted operating system. Furthermore, the connected devices are physically isolated from the external network, reducing the risk of cyberattacks from the corporate network or the internet.



Viktiga egenskaper

Axis S2212 Mk II 6 TB. Video input channels: 12 channels, Maximum resolution: 1920 x 1080 pixels, Video recording modes: 720p, 1080p. Security algorithms: FIPS 140-2. HDD capacity: 6 TB, Maximum storage capacity: 12000 TB, Total installed storage capacity: 6 TB. SSD capacity: 256 GB. Networking standards: IEEE 802.3at



Teknisk specifikation

Video input channels	12 channels
Video recording modes	720p,1080p
Maximum resolution	1920 x 1080 pixels
Input bandwidth	192 Mbit/s
Maximum frame rate	30 fps

Security algorithms	FIPS 140-2

Number of HDDs installed	1
HDD capacity	6000 GB
Number of HDDs supported	2
Total installed storage capacity	6000 GB
Maximum storage capacity	12000 TB

Number of SSDs installed	1
SSD capacity	256 GB

Ethernet LAN (RJ-45) ports	14
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	12
HDMI output	Yes
HDMI ports quantity	2
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Fiber ports quantity	1
Networking standards	IEEE 802.3at

Certification	UL/cUL, BIS, CE, KC, VCCI, RCM, BSMI, FCC, NOM

Built-in processor	Yes

Power consumption (max)	95 W
Power consumption (typical)	75 W
AC input voltage	100-240 V
AC input frequency	50/60 Hz
Total Power over Ethernet (PoE) budget	135 W

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Storage temperature (T-T)	-40 - 65 °C
Storage relative humidity (H-H)	10 - 90 %

Compliance certificates	Electromagnetic Compatibility (EMC),Trade Agreements Act (TAA)

Width	230 mm
Depth	330 mm
Height	78 mm
Weight	5800 g
