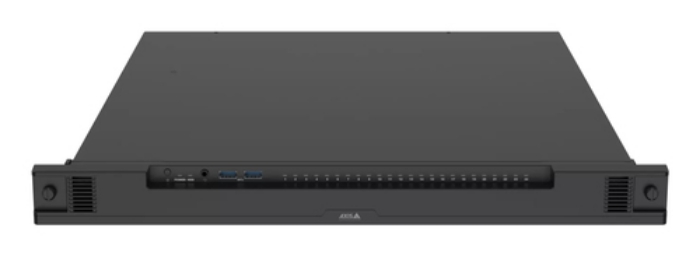

AXIS Camera Station S2224 Mk II Rack Appliance

This 24-channel rack appliance includes everything you need to run your complete surveillance system such as AXIS Camera Station Pro licenses, a 24-port PoE switch, and 12 TB of storage. It comes with pre-loaded software and tools to minimize installation time.

Powerful and versatile

This rack appliance is ideal in larger installations such as manufacturing sites and commercial buildings. With 24 channels and AXIS Camera Station Pro licenses included, it gives you complete control, and you can run your entire solution on-premises. It comes with two empty bays for easy storage expansion, and support for AXIS Camera Station Cloud Storage if recording in the cloud is preferred. Plus, it supports multiple RAID configurations (levels 0/1/5/10) for flexible system storage and redundancy. Built using powerful components, this powerful recorder supports AI applications such as Smart search 2. Furthermore, the built-in switch features an additional uplink port for easy and cost-efficient system expansion using AXIS S30 Recorder Series.

Easy to install and maintain

It comes preloaded with software and tools to help you set up and maintain your system. For instance, AXIS Recorder Toolbox includes an intuitive wizard to set up hostname, network settings, and date and time settings. It also includes a dashboard providing information on the built-in switch including uptime, current configuration, and basic settings. This all-in-one device provides everything you need to support your operations and update and maintain your system — all from one supplier. What’s more, advanced replacement service (RMA) and a 5-year hardware warranty ensure trouble-free ownership and better control over total costs.

Created with cybersecurity in mind

This reliable recording solution offers high-security features and standards. It offers an encrypted operating system and recordings with a FIPS 140-2 Level 2 certified TPM. Produced in a TAA-designated country, this appliance complies with NDAA FY19 and FY2023 and comes with a Software Bill of Materials (SBOM), ensuring compliance with strict regulations. Secure boot protects the system and ensures the recorder only runs a trusted operating system. Furthermore, the connected devices are physically isolated from the external network, reducing the risk of cyberattacks from the corporate network or the internet.



Viktiga egenskaper

Axis S2224 Mk II. Video input channels: 24 channels, Maximum resolution: 7680 x 4320 pixels, Number of simultaneously playbacked channels: 48 channels. HDD capacity: 6 TB, Total installed storage capacity: 2 GB, RAID levels: 0, 1, 10. SSD capacity: 256 GB. Networking standards: IEEE 802.3at. Rack capacity: 1U, Product colour: Black, Certification: FIPS 140–2 Level 2, EN 55035, EN 55032 Class A EN 61000-3-2, EN 61000-3-3, RCM AS/NZS CISPR 32...



Teknisk specifikation

Video input channels	24 channels
Number of simultaneously playbacked channels	48 channels
Supported resolutions	7680 x 4320, 3840 x 2160, 1920 x 1080, 1280 x 720
Maximum resolution	7680 x 4320 pixels
Internal memory	16000 MB
Internal memory type	DDR5
Maximum frame rate	30 fps

Wi-Fi	No

Number of HDDs installed	2
HDD capacity	6000 GB
Number of HDDs supported	4
Total installed storage capacity	2 GB
RAID support	Yes
RAID levels	0,1,10

Number of SSDs installed	1
SSD capacity	256 GB

Ethernet LAN (RJ-45) ports	24
Power over Ethernet (PoE)	Yes
HDMI ports quantity	2
USB 2.0 ports quantity	2
Fiber ports quantity	1
Networking standards	IEEE 802.3at

Rack mounting	Yes
Rack capacity	1U
Product colour	Black
Certification	FIPS 140–2 Level 2, EN 55035, EN 55032 Class A EN 61000-3-2, EN 61000-3-3, RCM AS/NZS CISPR 32 Class A, ICES(A)/NMB(A), VCCI Class A, KS C 9835, KS C 9832 Class A, FCC Part 15 Subpart B Class A, CNS 15936, CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-

Built-in processor	Yes

Power consumption (max)	130 W
Power consumption (typical)	110 W
AC input voltage	100-240 V
AC input frequency	50/60 Hz
Total Power over Ethernet (PoE) budget	260 W

Windows operating systems supported	Windows 11

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Storage temperature (T-T)	-40 - 65 °C
Storage relative humidity (H-H)	10 - 90 %

Compliance certificates	BIS,BSMI,CE,Federal Communications Commission (FCC),KC,Norma Oficial Mexicana (NOM),RCM,Trade Agreements Act (TAA),UL,VCCI,cUL

Width	476 mm
Depth	440 mm
Height	45 mm
Weight	11000 g

Cables included	AC
