Produktbeskrivning

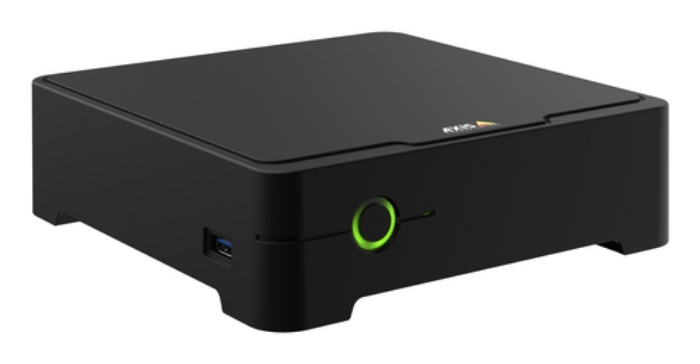

AXIS S3008 Recorder is a compact recorder with an integrated PoE switch for up to 8 cameras. It provides reliable recording thanks to the surveillance-grade hard drive. This high-performance recorder offers gigabit uplink for video recordings in ultra-high definition and includes a 5-year warranty. The recorder is supported by the AXIS Companion video management software and mobile app.
Viktiga egenskaper
Axis 02135-002. Audio formats supported: AAC, Video formats supported: AVC, H.264, H.265, HEVC, MPEG4, Input bandwidth: 160 Mbit/s. HDD capacity: 8 TB. Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.1x, IEEE 802.3af, IEEE 802.3at. Product colour: Black, Certification: CISPR 24, CISPR 35, EAC, EN 55024, EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN.... Power consumption (max): 90 W, AC input voltage: 100-240 V, AC input frequency: 50 - 60 Hz
Teknisk specifikation
Performance
| Audio formats supported | AAC |
|---|
| Video formats supported | AVC,H.264,H.265,HEVC,MPEG4 |
|---|
| Input bandwidth | 160 Mbit/s |
|---|
| Audio system | 1-way |
|---|
Hard drive
| Number of HDDs installed | 1 |
|---|
| HDD capacity | 8000 GB |
|---|
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 9 |
|---|
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX |
|---|
| Power over Ethernet (PoE) | Yes |
|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
|---|
| Power over Ethernet (PoE) ports quantity | 8 |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
|---|
| Networking standards | IEEE 802.1x,IEEE 802.3af,IEEE 802.3at |
|---|
| Supported network protocols | IPv4/v6, HTTP, SSL/TLS, QoS, SFTP, SMTP, Bonjour, UPnP, DNS, NTP, TCP, UDP, IGMP, ICMP, DHCPv4/v6, ARP, SSH |
|---|
Features
| Product colour | Black |
|---|
| Certification | CISPR 24, CISPR 35, EAC, EN 55024, EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCC1 Class A, IEC/EN 62368-1, UL 62368–1, |
|---|
Power
| Power consumption (max) | 90 W |
|---|
| AC input voltage | 100-240 V |
|---|
| AC input frequency | 50 - 60 Hz |
|---|
| Output current | 1.88 A |
|---|
| Output voltage | 48 V |
|---|
| Total Power over Ethernet (PoE) budget | 60 W |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 45 °C |
|---|
| Operating relative humidity (H-H) | -40 - 65 % |
|---|
| Storage temperature (T-T) | 10 - 85 °C |
|---|
| Storage relative humidity (H-H) | 5 - 95 % |
|---|
Weight & dimensions
| Width | 180 mm |
|---|
| Depth | 180 mm |
|---|
| Height | 53 mm |
|---|
| Weight | 1450 g |
|---|
Packaging content
| AC adapter included | Yes |
|---|
| Quick installation guide | Yes |
|---|
