Produktbeskrivning

Reliable with RAID and secure with TPM

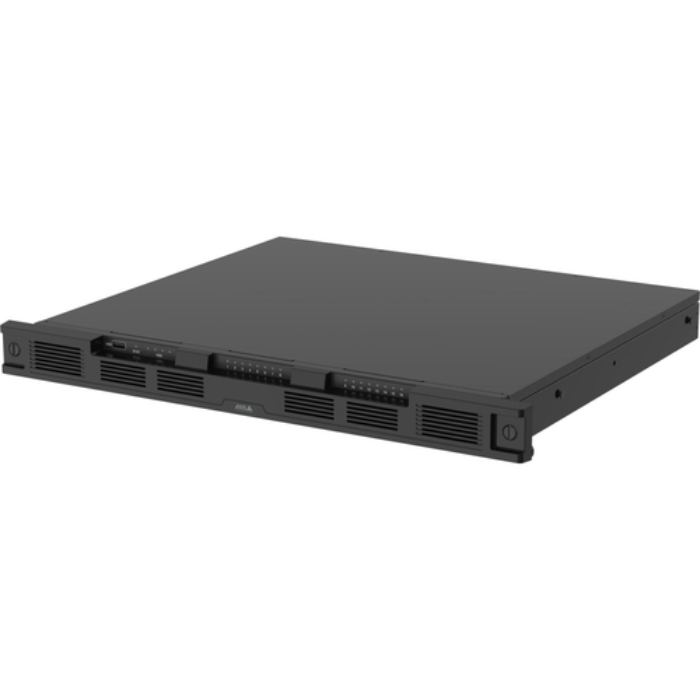

AXIS S3016 provides reliable recording thanks to the four surveillance-grade hard drives and different RAID levels. This high-performance recorder offers a gigabit switch for connecting network devices and a 2.5 gigabit uplink for video recordings in ultra-high definition. Thanks to the Trusted Platform Module 2.0, the recordings are encrypted, and you can be sure your data is protected. You can access your footage from anywhere using Axis Secure Remote Access, to fulfil high cybersecurity requirements.

Unbeatable Axis quality for the wide Axis portfolio

AXIS S3016 is extensively tested with our wide range of quality products to provide you with an affordable, end-to-end solution with unbeatable reliability. For instance, it’s possible to utilize network speakers to communicate with staff and deter intruders or network video door stations for audiovisual identification and remote entry control. All hardware components, including the PoE switch and surveillance-grade hard drives, are validated to meet the demands for reliable ultra-high definition surveillance. This easy-to-install solution provides you with everything you need to help ensure every installation is trouble-free.

Easy to use surveillance solution with AXIS Companion

AXIS S3016 together with AXIS Companion VMS connects and power up to sixteen devices and can be up and running with just a few clicks. AXIS Companion is an easy to use video management software. It offers video management and integrates with Axis cameras, intercoms and audio products. The solution can easily be scaled up from providing surveillance for a single site, to provide surveillance for multiple sites and whole national chains.

Easy to expand or scale your AXIS Camera Station system

A solution with AXIS S3016 is easily adapted to your business, and seamlessly expands as your needs grow. You can add additional recorders and other Axis devices to your existing AXIS Camera Station installation in a cost-efficient way. AXIS S3016 adds network ports, PoE and storage to your system without increasing load or maintenance on the server, while preserving the desired retention time. It can also scale multi-site AXIS Camera Station systems in a distributed storage setup without affecting other equipment and keeping the central management point for easy maintenance and



Viktiga egenskaper

Axis S3016. Video input channels: 16 channels, Audio formats supported: AAC, Video formats supported: AVC, H.264, H.265, HEVC, MPEG4. HDD capacity: 8 TB, Maximum storage capacity: 32 TB, Total installed storage capacity: 32 TB. Networking standards: IEEE 802.3at, Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS , SFTP, SMTP, mDNS (Bonjour), UPnP ,.... Rack capacity: 1U, Brand compatibility: Axis, Product colour: Black. Power consumption (max): 49 W, Power consumption (typical): 44 W, AC input voltage: 100-240 V



Teknisk specifikation

Video input channels	16 channels
Audio formats supported	AAC
Video formats supported	AVC,H.264,H.265,HEVC,MPEG4

Number of HDDs installed	4
HDD capacity	8000 GB
Number of HDDs supported	4
Total installed storage capacity	32000 GB
Maximum storage capacity	32 TB
RAID support	Yes
RAID levels	0,1,5,6,10

Ethernet LAN (RJ-45) ports	18
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	16
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Fiber ports quantity	1
Networking standards	IEEE 802.3at
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS , SFTP, SMTP, mDNS (Bonjour), UPnP , DNS/DNSv6, NTP, NTS, RTSP, TCP, UDP, IGMPv1/v2/v3, ICMP, DHCPv4/v6, ARP, SSH, LLDP, IEEE 802.1X (EAP-TLS), IEEE 802.1AR

Rack mounting	Yes
Rack capacity	1U
Brand compatibility	Axis
LED indicators	Yes
Product colour	Black

Built-in processor	Yes

Power consumption (max)	49 W
Power consumption (typical)	44 W
AC input voltage	100-240 V
AC input frequency	50/60 Hz
Total Power over Ethernet (PoE) budget	305 W

Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	10 - 85 %
Storage temperature (T-T)	-20 - 65 °C
Storage relative humidity (H-H)	5 - 90 %

Doesn't contain	PVC
Compliance certificates	REACH,RoHS

Width	484 mm
Depth	402 mm
Height	44.1 mm
Weight	10680 g

Quick installation guide	Yes
Cables included	AC
