Produktbeskrivning

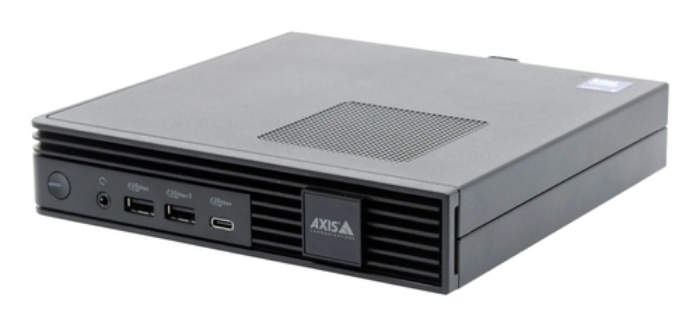

Perfectly matching the Axis portfolio, this compact and flexible workstation can be used either as a client when connected to the server, or as a server when used in combination with AXIS OS-based recorders. It supports up to two 4K resolution monitors for optimal viewing.

Flexible solutions
AXIS S9301 Mk II supports up to two 4K resolution monitors for optimal viewing. Perfectly matching the Axis portfolio, it’s ideal for both retail stores and manufacturing sites. This compact and flexible workstation can be used as a client or server depending on your needs.

Reliable surveillance system
AXIS S9301 Mk II offers an affordable, end-to-end solution with high reliability. It’s extensively tested and validated with a wide range of Axis products, including audio and video devices as well as Axis recorders. To further safeguard system uptime, the product includes next business day on-site hardware replacement and a 5-year warranty. Whenever support is needed, there is only one point of contact for your entire system.

AXIS S9301 Mk II as a client
AXIS S9301 Mk II can be used as a client when combined with a server such as AXIS Camera Station S12 and S22 Series. This is ideal for retail stores, where it acts as a workstation for end users to operate the system. It can be placed on office desks or anywhere you want it, allowing users to easily access recordings and watch live video using up to two 4K monitors. In this setup, most of the workload for the Video Management Software (VMS) is processed on the server, typically installed in a server room.

AXIS S9301 Mk II as a server
AXIS S9301 Mk II can also be used as a server when used with AXIS S30 Recorder Series or AXIS S4000 Recorder. This is ideal for smaller installations, such as in coffee shops and retail stores, where it provides the infrastructure needed to run your entire system, offering centralized processing power and great scalability. When recording is done on AXIS S30 Recorder Series or AXIS S4000 Recorders, you can use AXIS S9301 Mk II as your server to run your AXIS Camera Station Pro system with up to two monitors for optimal viewing, it offers a seamless and cost-efficient way to expand your system as your needs grow. Use this flexible workstation together with AXIS Camera Station Pro for your access control or audio systems.

Ease of installation
With a micro form factor, this workstation is ideal wherever space is limited. It comes preloaded with AXIS Camera Station Pro client software to enable quick connection. You can download AXIS Audio Manager Pro and use the 10 included licenses to get you started with your network speakers. Furthermore, the integrated AXIS Recorder Toolbox features an intuitive installation wizard, making it easy to set up hostname, network settings, and date and time settings.



Viktiga egenskaper

Axis S9301 Mk II. Maximum resolution: 3840 x 2160 pixels, Resolution at capture speed: 1920x1080@30fps, 1280x720@30fps, 3840x2160@30fps, 640x360@30fps, Internal memory type: DDR4-SDRAM. SSD capacity: 256 GB. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black. Processor frequency: 5 GHz



Teknisk specifikation

Maximum resolution	3840 x 2160 pixels
Resolution at capture speed	1920x1080@30fps,1280x720@30fps,3840x2160@30fps,640x360@30fps
Internal memory type	DDR4-SDRAM
Operating system installed	Windows 11 IoT Enterprise
Split screen	Yes
Playback modes	Fast play

Number of SSDs installed	1
SSD capacity	256 GB

Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000 Mbit/s
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
DisplayPorts quantity	3
DC-in jack	Yes

Product colour	Black

Built-in processor	Yes
Processor cores	14
Processor frequency	5 GHz

Power consumption (max)	80 W
Power consumption (typical)	50 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power	180 W

Windows operating systems supported	Windows 11

Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Storage temperature (T-T)	-40 - 65 °C
Storage relative humidity (H-H)	5 - 95 %

Warranty period	5 year(s)
Compliance certificates	RoHS,REACH,BSMI,CSA,KC,Norma Oficial Mexicana (NOM),RCM,Trade Agreements Act (TAA),Federal Communications Commission (FCC),Korean Industrial Standards (KS),VCCI

Width	182 mm
Depth	178 mm
Height	36 mm
Weight	1200 g

AC adapter included	Yes
Cables included	Power
