Produktbeskrivning

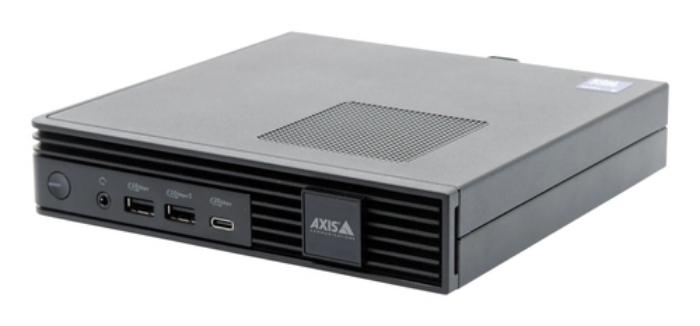

Perfectly matching the Axis portfolio, this compact and flexible workstation can be used either as a client when connected to the server, or as a server when used in combination with AXIS OS-based recorders. It supports up to two 4K resolution monitors for optimal viewing.

Flexible solutions
AXIS S9301 Mk II supports up to two 4K resolution monitors for optimal viewing. Perfectly matching the Axis portfolio, it’s ideal for both retail stores and manufacturing sites. This compact and flexible workstation can be used as a client or server depending on your needs.

Reliable surveillance system
AXIS S9301 Mk II offers an affordable, end-to-end solution with high reliability. It’s extensively tested and validated with a wide range of Axis products, including audio and video devices as well as Axis recorders. To further safeguard system uptime, the product includes next business day on-site hardware replacement and a 5-year warranty. Whenever support is needed, there is only one point of contact for your entire system.

AXIS S9301 Mk II as a client
AXIS S9301 Mk II can be used as a client when combined with a server such as AXIS Camera Station S12 and S22 Series. This is ideal for retail stores, where it acts as a workstation for end users to operate the system. It can be placed on office desks or anywhere you want it, allowing users to easily access recordings and watch live video using up to two 4K monitors. In this setup, most of the workload for the Video Management Software (VMS) is processed on the server, typically installed in a server room.

AXIS S9301 Mk II as a server
AXIS S9301 Mk II can also be used as a server when used with AXIS S30 Recorder Series or AXIS S4000 Recorder. This is ideal for smaller installations, such as in coffee shops and retail stores, where it provides the infrastructure needed to run your entire system, offering centralized processing power and great scalability. When recording is done on AXIS S30 Recorder Series or AXIS S4000 Recorders, you can use AXIS S9301 Mk II as your server to run your AXIS Camera Station Pro system with up to two monitors for optimal viewing, it offers a seamless and cost-efficient way to expand your system as your needs grow. Use this flexible workstation together with AXIS Camera Station Pro for your access control or audio systems.

Ease of installation
With a micro form factor, this workstation is ideal wherever space is limited. It comes preloaded with AXIS Camera Station Pro client software to enable quick connection. You can download AXIS Audio Manager Pro and use the 10 included licenses to get you started with your network speakers. Furthermore, the integrated AXIS Recorder Toolbox features an intuitive installation wizard, making it easy to set up hostname, network settings, and date and time settings.



Viktiga egenskaper

Axis S9301 Mk II. Processor frequency: 5 GHz, Processor family: Intel Core Ultra 5, Processor model: 235. Internal memory: 16 GB, Internal memory type: DDR4-SDRAM. Total storage capacity: 256 GB, Storage media: SSD. On-board graphics card model: Intel® Graphics. Operating system installed: Windows 11. Power supply: 180 W. Chassis type: Micro Tower. Product type: Workstation. Weight: 1.2 kg. Product colour: Black



Teknisk specifikation

Processor manufacturer	Intel
Processor family	Intel Core Ultra 5
Processor generation	Intel Core Ultra (Series 2)
Processor model	235
Processor cores	14
Processor threads	14
Processor frequency	5 GHz
Performance cores	6
Efficient cores	8
Efficient-core Max Turbo Frequency	4.4 GHz
Processor socket	LGA 1851 (Socket V1)
Processor cache	24 MB
Processor cache type	Smart Cache
Number of processors installed	1
Processor base power	65 W
Maximum turbo power	121 W

Neural processor unit (NPU)	Intel AI Boost
NPU performance up to	13 TOPs

Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Memory layout (slots x size)	2 x 8 GB
Memory slots	2x SO-DIMM

Total storage capacity	256 GB
Optical drive type	No
Storage media	SSD
Number of storage drives installed	1
Total SSDs capacity	256 GB
Number of SSDs installed	1
SSD capacity	256 GB

Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card model	Intel® Graphics

Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB 3.2 Gen 2x2 Type-C ports quantity	1
DisplayPorts quantity	3
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Combo headphone/mic port	Yes
DC-in jack	Yes

Chassis type	Micro Tower
Product colour	Black
Housing material	Plastic

Product type	Workstation
Trusted Platform Module (TPM) version	2.0

Operating system installed	Windows 11

Intel Secure Boot	Yes

Power supply	180 W
Power supply input voltage	100 - 240 V
Power supply input frequency	50/60 Hz
Power consumption (typical)	50 W
DC input voltage	19.5 V

Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	20 - 80 %

Compliance certificates	RoHS,REACH,BSMI,CSA,KC,Norma Oficial Mexicana (NOM),RCM,Trade Agreements Act (TAA)

Width	182 mm
Depth	178 mm
Height	36 mm
Weight	1200 g

Display included	No
Cables included	Power
AC adapter included	Yes

Warranty period	5 year(s)
Power plug type	Type G
