Produktbeskrivning

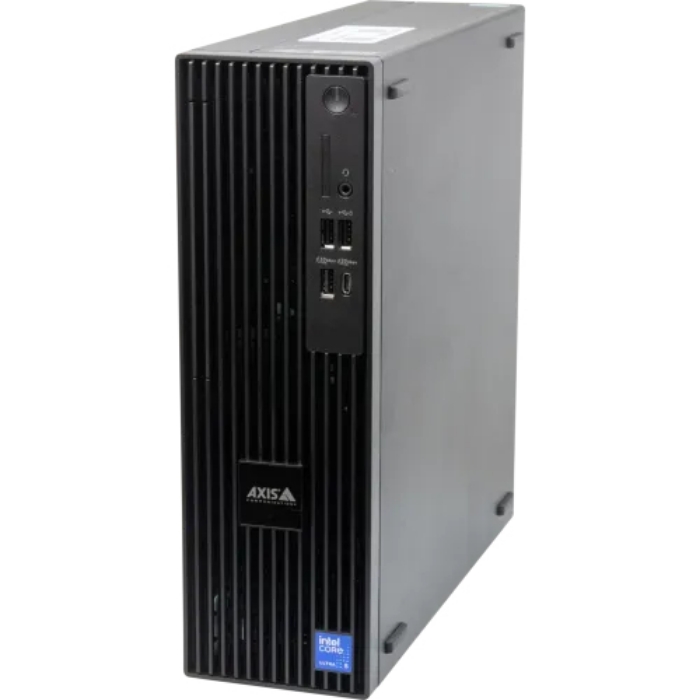

Perfectly matching the Axis portfolio, this powerful and flexible workstation can be used either as a client when connected to the server, or as a server when used in combination with AXIS OS-based recorders. It supports up to four 4K resolution monitors for optimal viewing.



Viktiga egenskaper

Axis S9302 MkII. Video input channels: 1 channels, Number of simultaneously playbacked channels: 36 channels, Internal memory: 16384 MB. Brand compatibility: Axis, Product colour: Black. Power consumption (max): 360 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Width: 303 mm, Depth: 95 mm, Height: 293 mm. Cables included: AC



Teknisk specifikation

Video input channels	1 channels
Number of simultaneously playbacked channels	36 channels
Internal memory	16384 MB
Operating system installed	Windows 11 IoT Enterprise LTSC

Wi-Fi	No

Ethernet LAN (RJ-45) ports	1
Power over Ethernet (PoE)	No
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Audio output	1
DisplayPorts quantity	3
Line-in	Yes

Brand compatibility	Axis
LED indicators	Yes
Product colour	Black

Built-in processor	Yes

Power consumption (max)	360 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Output current	5 A

Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	20 - 80 %
Storage temperature (T-T)	-40 - 65 °C
Storage relative humidity (H-H)	5 - 95 %

Compliance certificates	Trade Agreements Act (TAA)
Sustainability compliance	Yes

Width	303 mm
Depth	95 mm
Height	293 mm
Weight	4500 g

AC adapter included	Yes
Cables included	AC
