Produktbeskrivning

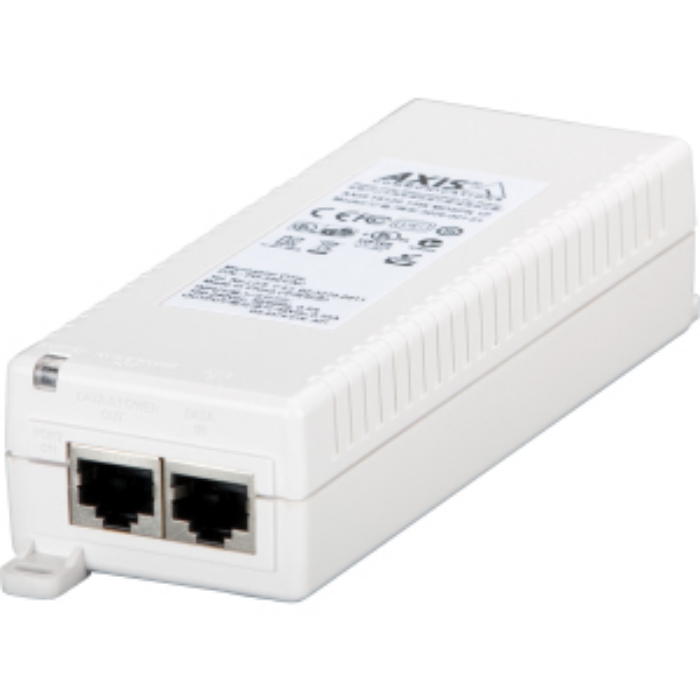

Power over Ethernet (PoE) offers an easy, fast and cost-effective solution for powering network products. A midspan injects power and data to the network device with built-in PoE support. No need to replace existing Ethernet switches and cabling infrastructure. AXIS T8120 Midspan 15 W 1-port is a compact and flexible solution for your PoE-based network devices. AXIS T8120 delivers up to 15.4 W and it is IEEE 802.3af compliant and, which ensures compatibility with most of Axis network products that have built-in support for PoE.



Viktiga egenskaper

Axis 5026-203. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s. Input voltage: 100 - 240 V, Input frequency: 47 - 63 Hz, Input current: 0.5 A. Weight: 450 g, Dimensions (WxDxH): 53 x 140 x 33 mm



Teknisk specifikation

Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Power over Ethernet (PoE)	Yes

Ethernet LAN (RJ-45) ports	2

Input voltage	100 - 240 V
Input frequency	47 - 63 Hz
Input current	0.5 A

Weight	450 g
Dimensions (WxDxH)	53 x 140 x 33 mm

Harmonized System (HS) code	85044095
