Produktbeskrivning

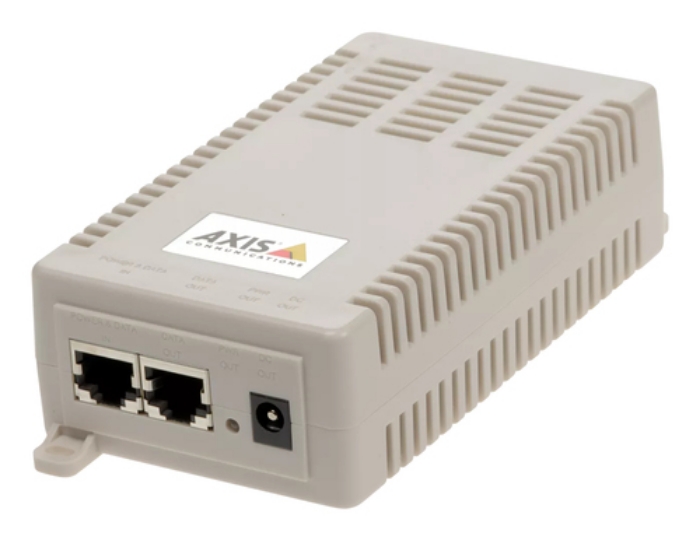

A splitter is used to split the power and data in an Ethernet cable into two separate cables, which then can be connected to a network device that has no built-in support for Power over Ethernet (PoE). AXIS T8127 60 W Splitter 12/24 V DC enables Axis' network products and accessories, such as Axis' illuminators, media converters etc.. to receive 12 or 24 V DC with up to 4.5A. The splitter can be powered from any Axis midspan or PoE switch. AXIS T8127 offers an easy, fast and cost-effective solution compared with adding a power supply to your system.



Viktiga egenskaper

Axis 5500-001. Connector gender: Female. Width: 73 mm, Depth: 130 mm, Height: 38 mm. DC output voltage: 12V, Output power: 54 W, Output current (12V): 4.5 A



Teknisk specifikation

Plug and Play	Yes

Ethernet LAN (RJ-45) ports	2
Connector gender	Female

DC output voltage	12V
Output power	54 W
Output current (12V)	4.5 A

Operating relative humidity (H-H)	0 - 90 %
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	0 - 40 °C

Width	73 mm
Depth	130 mm
Height	38 mm
Weight	285 g

Quick installation guide	Yes
