Produktbeskrivning

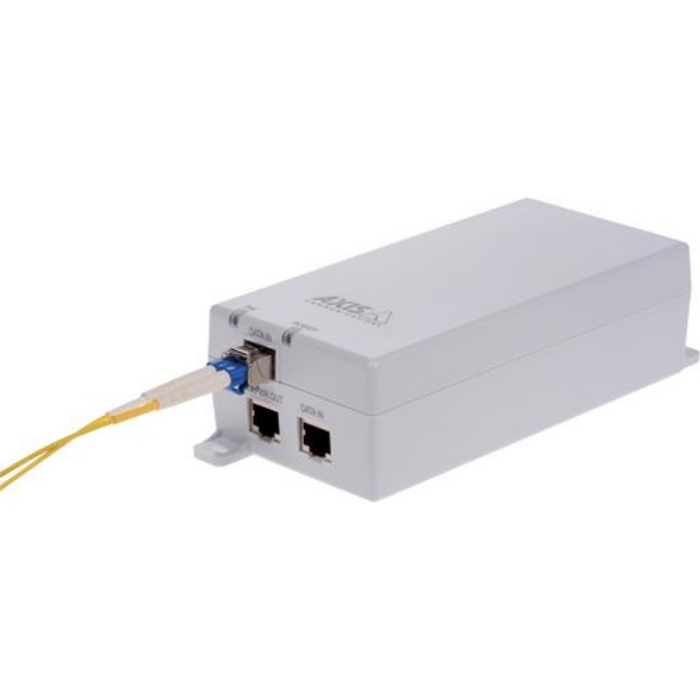

AXIS T8154 60 W SFP Midspan

AXIS T8154 60 W SFP Midspan is a compact, plug-and-play media converter with PoE. With its integrated power supply, it minimizes the amount of cabling and facilitates installation. AXIS T8154 offers data input through SFP or RJ45, and delivers High PoE 60 W. It works with all Axis network products supporting Power over Ethernet.



Viktiga egenskaper

Axis T8154. Type: Midspan, Brand compatibility: Axis, Product colour: White. Ethernet LAN data rates: 10,100,1000 Mbit/s. Rated power: 60 W, Input voltage: 100-240 V, Input frequency: 50/60 Hz. Width: 80 mm, Depth: 184 mm, Height: 50 mm. Quantity per pack: 1 pc(s)



Teknisk specifikation

Type	Midspan
Brand compatibility	Axis
Compatibility	M1055-L, M1075-L, M1135-E Mk II, M1135 Mk II, M1137 Mk II, M1137-E Mk II, P1375-E, P1375, P1377, P1377-LE, P1378, Q1615 Mk III, Q1615-LE Mk III, Q1656-B, Q1656, Q1656-BE, Q1656-BLE, Q1656-LE, Q1659, M2035-LE, M2036-LE, P1465-LE, P1455-LE, P1465-LE-3, P146
Product colour	White
Networking standards	IEEE 802.3bt
LED indicators	Yes
Certification	IEC/EN/UL 60950-1, EN 62368-1, KC, CCC, CB, S-Mark, GS Mark per EN 60950-1, EN 55032 Class A, EN 61000 3-2, EN 61000 3-3, EN 55035, FCC Part 15 Subpart B Class A, VCCI Class A, RCM AS/NZS CISPR32 Class A, KCC KN32 Class A, KN35, EN 61000–6-1, EN 61000–6–2

Ethernet LAN data rates	10,100,1000 Mbit/s

Rated power	60 W
Input voltage	100-240 V
Input frequency	50/60 Hz
Output voltage	55 V
Power source type	AC

Height	50 mm
Depth	184 mm
Width	80 mm
Weight	517 g

Quantity per pack	1 pc(s)

Quick installation guide	Yes

Operating temperature (T-T)	-50 - 50 °C
Operating relative humidity (H-H)	0 - 90 %
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	0 - 95 %

Doesn't contain	PVC
