Produktbeskrivning

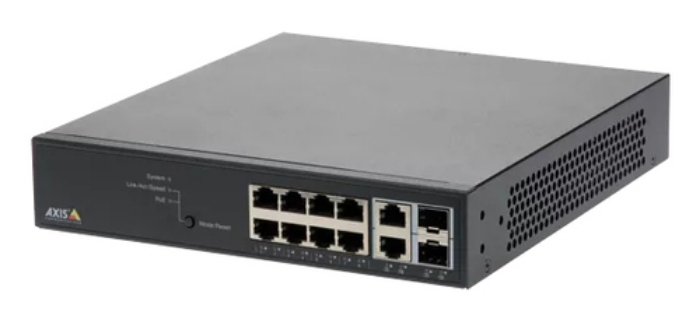

AXIS T8508 PoE+ Network Switch is an 8-port managed Gigabit switch with a compact, fan-less design for installation in noise sensitive environments or to be used as an edge switch. AXIS T8508 is a perfect complement to Axis’ recorders to further simplify setup and installation of surveillance systems. The intuitive administrator interface offers a graphic topology for easy overview of all devices in the system with information about connected devices and status. The high PoE power output allows for connection of up to 8 PoE cameras.



Viktiga egenskaper

Axis 01191-002. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1x, IEEE 802.3at. Power over Ethernet (PoE)



Teknisk specifikation

Switch type	Managed

Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity	2

Networking standards	IEEE 802.1x,IEEE 802.3at
10G support	No

MAC address table	8000 entries
Switching capacity	20 Gbit/s
Throughput	14.9 Mpps
Jumbo frames support	Yes
Jumbo frames	9216

DHCP features	DHCP server

Rack mounting	No
Stackable	No
Product colour	Black

AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	8
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	130 W

Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 90 %
Storage relative humidity (H-H)	5 - 95 %

Width	220 mm
Depth	242 mm
Height	44 mm
Weight	2100 g

Harmonized System (HS) code	85176990
