Produktbeskrivning

- High intensity LEDs
- Easy to install
- Long life
- Low power consumption
- Outdoor ready

Wall-mount illuminators for outdoor-ready fixed domes

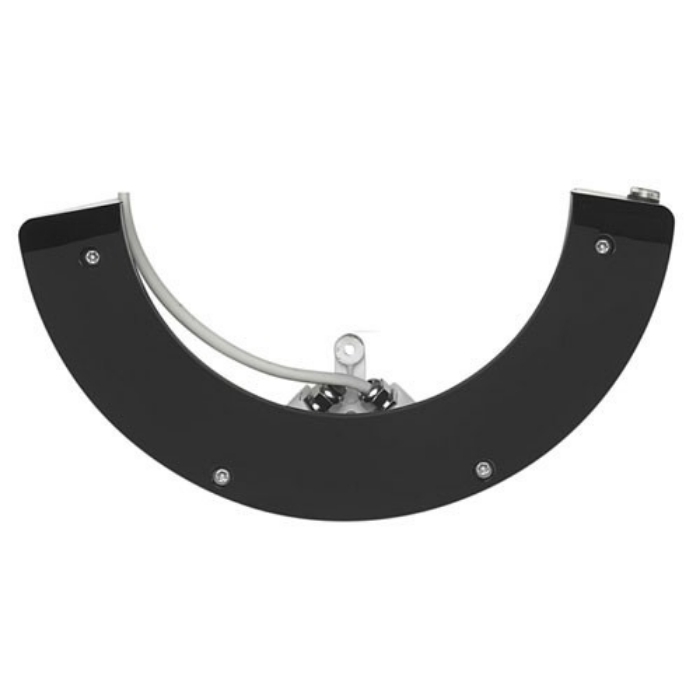

AXIS T90C Fixed Dome IR-LED is an infra-red, vandal-resistant illuminator for outdoor versions of AXIS P33 Network Cameras. It enables the cameras to deliver high quality images in complete darkness. No additional items are needed for the wall-mount installation.

High intensity LEDs
The infrared illuminator offers eight high-power IR-LEDs providing a wide angle light beam in the 850nm wavelength. It gives the fixed dome network camera a viewing range of 20-30 meters (67–98 ft.) depending on environment and installation

Outdoor-ready video surveillance at night
The illuminator has an IP66- and NEMA 4X-rated casing, which allows it to operate in outdoor conditions. It has low power consumption at less than 13W, is strong and requires no maintenance.

Applications:
- Low-light surveillance 24 hours/day: where light conditions are less than optimal
- Discreet surveillance: sleek and compact design
- Outdoor-ready: IP66- and NEMA 4X-rated casing for outdoor use
- Integrated IR illumination: where separate IR illuminators are not feasible or esthetically desirable



Viktiga egenskaper

Axis T90C10. Maximum operating distance: 30 m, Beam angle (max): 120°, Cable length: 5 m. Power requirements: 18–56 V DC. Dimensions (WxDxH): 130 x 256 x 47 mm, Weight: 700 g. Operating temperature (T-T): -40 - 55 °C



Teknisk specifikation

Beam angle (max)	120 °
Maximum operating distance	30 m
Cable length	5 m
Product colour	Black
Certification	EN 55022 B, EN 55024, FCC 15 B B, ICES-003 B, VCCI B, C-tick AS/NZS CISPR 22, EN 60950-1, EN 60950-22, UL 60950-1 & UL 60950-22

Power requirements	18–56 V DC

Weight	700 g
Dimensions (WxDxH)	130 x 256 x 47 mm

Operating temperature (T-T)	-40 - 55 °C

Power	19 W
