Produktbeskrivning

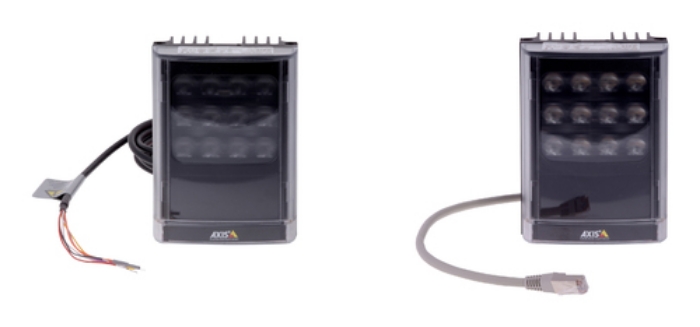

Based on the latest LED technology, the new generation of Axis illuminators delivers more light where it is needed. They generate longer illumination distances, minimize light wastage, and prevent overexposure of foreground objects. With interchangeable lenses, the angle of illumination can be optimized to match your network camera's field of view. AXIS T90D20 IR-LED Illuminators come with a AC/DC or PoE power input, for easy and flexible installation with PoE midspans or PoE switches. Thanks to integrated green features such as power adjust and telemetry control (on AC/DC model only), Axis illuminators enhance the potential for energy savings.



Viktiga egenskaper

Axis 01211-001. Type: IR LED unit, Placement supported: Universal, Brand compatibility: Axis. Connectivity technology: Wired. Cable length: 2.5 m, Width: 100 mm, Depth: 66 mm



Teknisk specifikation

Type	IR LED unit
Placement supported	Universal
Brand compatibility	Axis
Compatibility	01219-001, 01220-001, 01221-001
Product colour	Black
Housing material	Aluminium
International Protection (IP) code	IP66
Certification	FCC Part 15.107 and 15.109 Class B, ICES-003 Issue 6 Class B, EN 55032 Class B, RCM AS/NZS CISPR 32 Class B, VCCI Class B, EN 55015, EN 55024, EN 50130–4, EN 61547, EMC AC/DC variant, KCC KN15, KN 61547, IEC/EN 60598-1, IEC/EN 62471 (risk group 2), C22.2

Wall mountable	Yes

Connectivity technology	Wired

Cable length	2.5 m
Width	100 mm
Depth	66 mm
Height	135 mm
Weight	950 g

Operating temperature (T-T)	-50 - 50 °C
Operating relative humidity (H-H)	10 - 100 %
Storage temperature (T-T)	-50 - 70 °C

Harmonized System (HS) code	85299020
