Produktbeskrivning

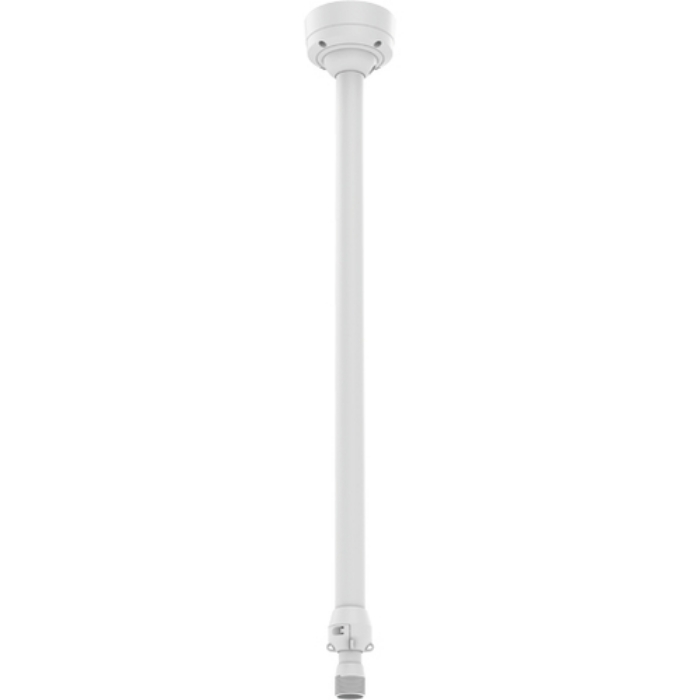

AXIS T91B50 Telescopic Ceiling Mount is ideal where a PTZ /fixed dome camera needs to be installed in a high ceiling. The telescopic functionality allows the installer to adjust the length in an easy and secure way (up to 2 m/79 in). If a longer length is needed, two extension pipes are available, 30 cm (12 in) and 100 cm (39 in). The mount is designed to swing and not break if hit by forklifts or tall vehicles. It can also be installed in sloped ceilings thanks to the ball joint, which ensures that the camera is still hanging straight.



Viktiga egenskaper

Axis T91B50 Telescopic Ceiling Mount. Type: Mount, Placement supported: Universal, Product colour: White. Maximum weight capacity: 10 kg, Tilt angle range: -45 - 45°. Height: 2136 mm, Weight: 4.1 kg



Teknisk specifikation

Type	Mount
Placement supported	Universal
Compatibility	AXIS P55/P56/Q60/Q61 AXIS M50 AXIS P33 AXIS P32/Q35 AXIS M3004-V/M3005-V AXIS M3006-V/M3007-P/ M3007-PV AXIS M3024-LVE/M3025-VE/M3026-VE/M3027-PVE/M3037-PVE AXIS P3707-PE AXIS Q3709-PVE
Product colour	White
Housing material	Aluminium
Certification	IEC/EN/UL 60950-1 IEC/EN/UL 60950-22 EN 50581 IEC/EN 62262 IK10 NEMA 250 Type 4X

Maximum weight capacity	10 kg
Tilt angle range	-45 - 45 °

Height	2136 mm
Weight	4100 g

Harmonized System (HS) code	85299020
