Produktbeskrivning

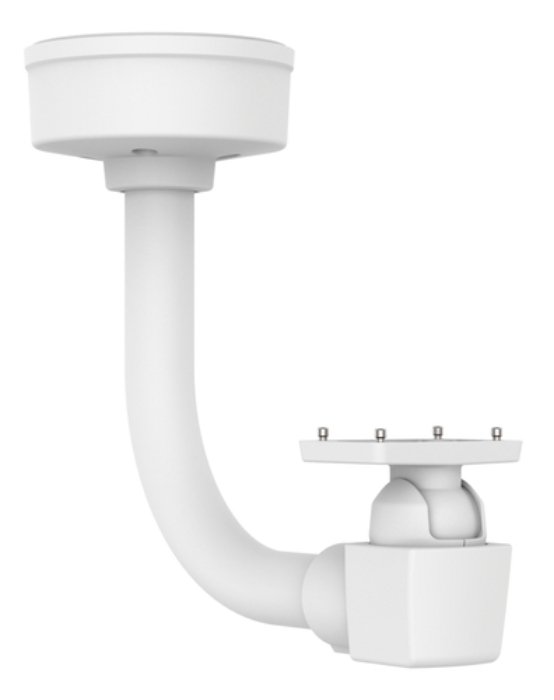

The powder-coated aluminum AXIS T94Q01F Ceiling-and-Column Mount can be used for both ceiling/soffit and column/parapet installations. This allows Axis’ fixed camera housings to be mounted under hard surfaces such as ceilings, beams, soffits and canopies. It can also be mounted on pole or column tops, parapets and other horizontal building structures. Re-direction and maintenance of the camera is easy thanks to the swivel arm feature. The cable is routed through the pipe, and is never exposed to weather or potential vandalism. Cable conduits and Axis’ conduit adapters (3/4” dimension) are used for cable protection when routed from the side.



Viktiga egenskaper

Axis 5507-591. Type: Mount, Placement supported: Universal, Product colour: White. Maximum weight capacity: 5 kg, Tilt angle range: -65 - 25°. Width: 271 mm, Depth: 129.7 mm, Height: 300.4 mm



Teknisk specifikation

Type	Mount
Placement supported	Universal
Compatibility	AXIS T94Q01F
Product colour	White
Certification	NEMA 4X, IK10 IEC/EN/UL 60950-1 IEC/EN/UL 60950-22 IEC 60068-2-6, IEC 60068-2-27 EN 50581, REACH, CE

Maximum weight capacity	5 kg
Tilt angle range	-65 - 25 °

Width	271 mm
Height	300.4 mm
Depth	129.7 mm
Weight	1300 g

Quick installation guide	Yes

Harmonized System (HS) code	85299020
