Produktbeskrivning

Vandal-resistant to withstand adversities

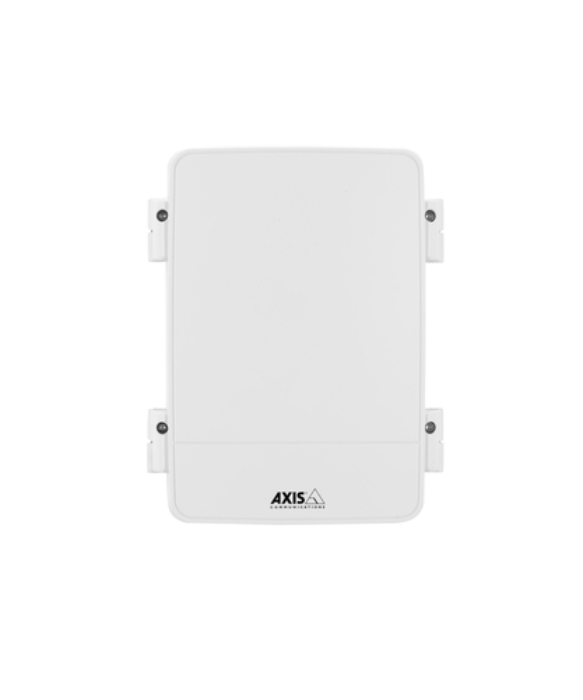

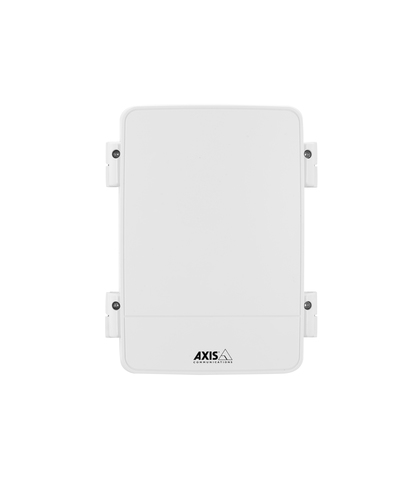

The polycarbonate, AXIS T98A-VE Surveillance Cabinet Series is IP66-rated for protection against the ingress of dust and high pressure water jets from any direction. The NEMA 4X rating protects against windblown dust, salt spray, rain, hose-directed water, and damage from external ice formation. It provides also IK10-rated material for protection against impact and vandalism. The surveillance cabinets support vibration rating 4M4 and 4M3 (AXIS T98A18-VE).

Step-by-step installation
The modularity of AXIS T98A-VE Surveillance Cabinet Series enables different categories of installers to do their part time separated in order to optimize the workflow.

- Firstly, the installer mounts AXIS T98A-VE Mounting Plate with cable protection
- Secondly, the certified electrician mounts the mains power parts and cover them with the power cover
- Thirdly, the installer can finalize the installation of the low-voltage units

Ease of installation
AXIS T98A-VE offers several ease of installation features to simplify the work for the installers. With a selection of optional mounting brackets, AXIS T98A-VE Mounting Plate can be installed on a wall, pole or building corner.

The polycarbonate cabinet base is extremely lightweight that can be easily carried in one hand. The cabinet door can be left or right hinged, thanks to removable hinge pins. Furthermore, the hinges have a stop that locks the cabinet door at 105° to avoid that the door hits back the installer.

A DIN rail is pre-mounted for those units that can be snapped on it by using a DIN rail clip. A molded DIN rail is also designed on the inner right-side of the cabinet base. The cabinet base can hang on the hooks of the mounted plate while cables are routed and connected. In a secondary step the cabinet base is slid and secured on the mounting plate with screws.

Separated compartments to enhance security
For better installation and improve cost efficiency, the inner compartment with a DIN rail can be split into two sections: one to fit mains power units and a second for low-voltage units that do not require installation by a certified electrician. An optional electrical safety kit is available, which includes surge protection, a fuse and an alarm-door switch to detect cabinet intrusion or damage.



Viktiga egenskaper

Axis 5900-151. Type: Housing & mount, Placement supported: Outdoor, Product colour: Stainless steel, White. Width: 282 mm, Depth: 131 mm, Height: 361 mm



Teknisk specifikation

Type	Housing & mount
Placement supported	Outdoor
Product colour	Stainless steel,White
Housing material	Stainless steel
Certification	IEC 60529 IP66, NEMA 250 rating Type 4X, IEC 62262 IK10, AXIS T98A18-VE, UL 50E, IEC/UL/EN 60950-1, IEC/UL/EN 60950-22

Inner height	263 mm
Height	361 mm
Depth	131 mm
Inner width	222 mm
Width	282 mm
Inner depth	82 mm
Weight	3500 g

Operating temperature (T-T)	-40 - 75 °C

Harmonized System (HS) code	85299020
