Produktbeskrivning

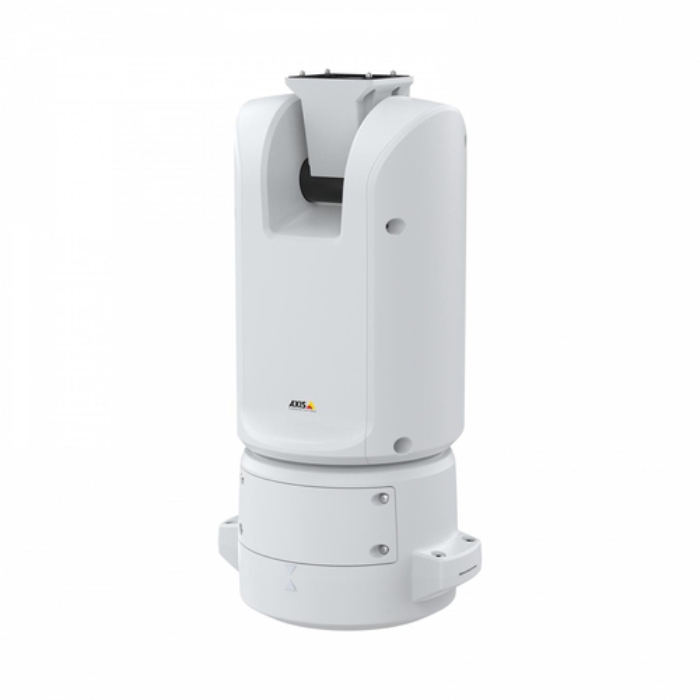

AXIS T99A12 is a highly responsive and reliable positioning unit, designed for both high-speed and ultra-slow, jerk-free pan and tilt movements. Selected Axis outdoor fixed box cameras can be mounted on the positioning unit. When it is column-mounted, it enables a 360° unobstructed field of view for the camera and a ground-to-sky view of 135°. AXIS T99A12 is easy to mount in a variety of ways, thanks to optional mounts for wall and pole installations, and is specially designed to be reliable, robust and weatherproof. The unit includes both RJ45 and SFP interfaces, enabling a long-distance fiber-optic connection with a failover network link.



Viktiga egenskaper

Axis 02575-001. Type: Base unit, Placement supported: Outdoor, Brand compatibility: Axis. Maximum weight capacity: 5 kg, Tilt angle range: 0 - 135°. Connectivity technology: Wired. Power consumption: 50 mA, Input voltage: 24 V, Output voltage: 12 V. Width: 229 mm, Depth: 184 mm, Height: 443 mm



Teknisk specifikation

Type	Base unit
Placement supported	Outdoor
Brand compatibility	Axis
Product colour	White
International Protection (IP) code	IP66
IK code	IK10

Maximum weight capacity	5 kg
Tilt angle range	0 - 135 °

Connectivity technology	Wired

Power consumption	50 mA
Input voltage	24 V
Output voltage	12 V
Power consumption (typical)	10 W
Power consumption (max)	169 W

Width	229 mm
Height	443 mm
Weight	10200 g
Depth	184 mm

Quantity per pack	1 pc(s)

Operating temperature (T-T)	-50 - 60 °C
Storage temperature (T-T)	-40 - 70 °C

Doesn't contain	PVC
Warranty period	5 year(s)
