All-in-one enclosure

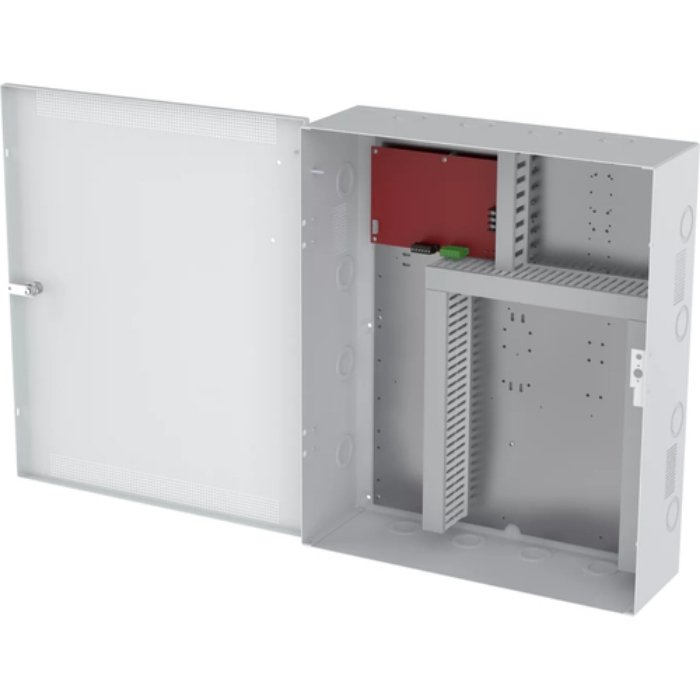

AXIS TA1203 Enclosure with Power Unit is a compact, all-in-one enclosure designed to simplify access control installations. It integrates a 250W power supply, and support for battery charging and backup, all preassembled in a UL recognized steel enclosure. Built to work seamlessly with AXIS A1810-B Network Door Controller, it provides a standardized and scalable platform for eight-door systems. With factory-assembled components included, AXIS TA1203 reduces field wiring complexity.

Easy and efficient installation

This enclosure is engineered for installer convenience. Its removable backplate allows off-site hardware mounting while cabling is done on-site, speeding up the installation process. Pre-drilled patterns ensure compatibility and save setup time. The enclosure frame features multiple knockouts for flexible wiring and a removable cover for easy access. A built-in tamper switch and lockset enhance physical security.

Reliable, intelligent power system

AXIS TA1203 includes a reliable 250W power unit designed specifically for access control systems. It supports eight-door configurations with full lock power control via AXIS A1810-B. Battery charging is managed by built-in sensors for safe and efficient charging. Features include low battery cutoff, surge protection, and a dedicated fast charger to maintain battery life over time.



Viktiga egenskaper

Axis TA1203. Width: 519 mm, Depth: 172 mm, Height: 615 mm



Teknisk specifikation

Width	519 mm
Height	615 mm
Depth	172 mm

Lockable	Yes
Number of doors	1 door(s)
Housing material	Steel
Product colour	Grey
Door hinge	Left

Operating temperature (T-T)	0 - 49 °C
Operating relative humidity (H-H)	0 - 93 %
Storage temperature (T-T)	-30 - 70 °C
