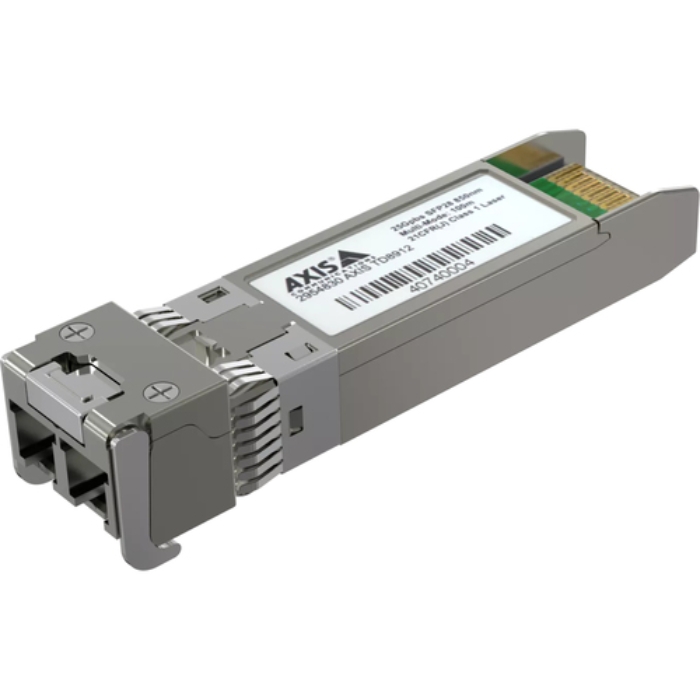

AXIS TD8912 SFP28 Module LC.SR.X

AXIS TD8912 SFP28 Module LC.SR.X is a small form-factor pluggable 28 (SFP28) transceiver that supplies network devices, such as a switches or routers, with a fiber optic network connection. It has a temperature range between 0 °C to 70 °C (-32 °F to 158 °F).

Specifications

Complying with SFP28 Multisource Agreement (MSA), it is easy to install into compliant ports at any time without interrupting the online operation of the host equipment. Short wavelength (850 nm) VCSEL laser diodes enable data transmission up to 100 m on a multimode 50/125 μm optical fiber. The module is tested and verified with Axis products such as AXIS D8308 Fiber Aggregation Switch.

Link-loss feature for network redundancy

The loss of signal (LOS) feature allows for the system to recognize a lost connection between a specific hardware (For example, AXIS Network Cameras) and the host. For optimized network redundancy, AXIS TD8912 signals the hardware in case of a lost connection or unusable connection for network traffic. This allows for the hardware to redirect the network traffic through a fallback connection, for example via RJ45.



Viktiga egenskaper

Axis TD8912. SFP transceiver type: Fiber optic, Maximum data transfer rate: 25000 Mbit/s, Interface type: SFP28. Product colour: Metallic. Compliance certificates: Trade Agreements Act (TAA), Certification: CSA, UL/cUL, CE, VCCI, RCM, ICES, FCC



Teknisk specifikation

SFP transceiver type	Fiber optic
Maximum data transfer rate	25000 Mbit/s
Interface type	SFP28
Multi-mode fiber (MMF) supported	Yes
Fiber optic connector	LC
Fiber cable diameters supported (core/cladding)	50/125 µm
Maximum transfer distance	100 m
Wavelength	850 nm

Product colour	Metallic
Hot-Plug support	Yes
Certification	CSA, UL/cUL, CE, VCCI, RCM, ICES, FCC

Minimum operating temperature	0 °C
Maximum operating temperature	70 °C
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95 %
Storage relative humidity (H-H)	5 - 95 %

Compliance certificates	Trade Agreements Act (TAA)
