Produktbeskrivning

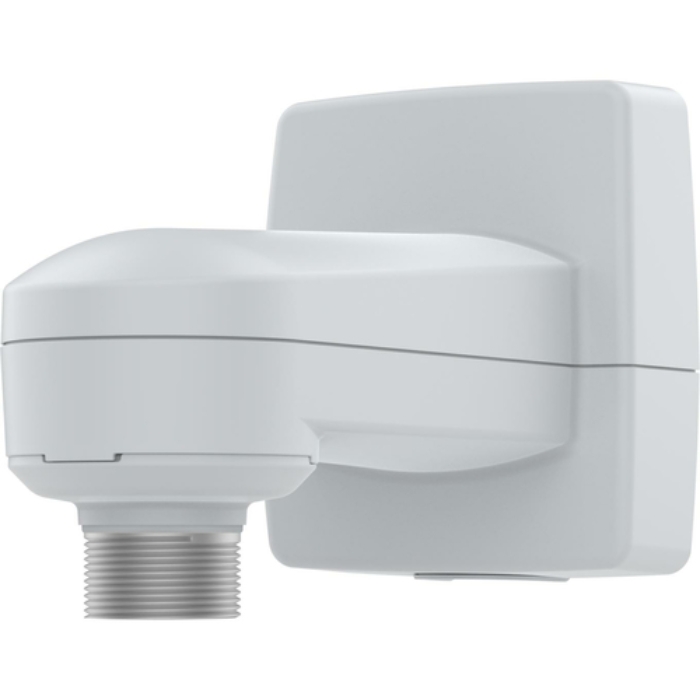

Designed for Axis dome cameras, AXIS TP1001-E Wall-and-Pole Mount offers flexible installation and versatile connection with RJ45 or IDC connectors.

With this wall-and-pole mount, installers can choose to use either an RJ45 or IDC (insulation-displacement contact) connector for the installation. It features a built-in cable with an ethernet IP66-rated RJ45 connector to facilitate installation and prevent water and dust from entering the camera. Made from impact-resistant, outdoor-ready material, AXIS TP1001-E is suited for both indoor and outdoor environments. Flipping the mounting bracket makes it possible to turn AXIS TP1001-E from a wall mount to a pole mount (AXIS Steel Straps TX30 are required). The mount is also suitable for corner mounting with an optional accessory.



Viktiga egenskaper

Axis TP1001-E. Type: Mount, Placement supported: Universal, Brand compatibility: Axis. Maximum weight capacity: 40 kg. Width: 152.6 mm, Depth: 291.8 mm, Height: 183.6 mm



Teknisk specifikation

Type	Mount
Placement supported	Universal
Brand compatibility	Axis
Compatibility	P3255-LVE, Q3538-LVE, P3727-PLE
Product colour	White
Housing material	Aluminium
International Protection (IP) code	IP66
IK code	IK10
Certification	CSA, UL/cUL, UKCA, CE, KC, VCCI, RCM, TAA

Maximum weight capacity	40 kg

DC-in jack	Yes

Depth	291.8 mm
Width	152.6 mm
Height	183.6 mm
Weight	2164 g

Mounting kit	Yes
Quick installation guide	Yes

Operating temperature (T-T)	-50 - 65 °C
Operating relative humidity (H-H)	10 - 100 %
Storage temperature (T-T)	-40 - 65 °C
Storage relative humidity (H-H)	10 - 100 %

Doesn't contain	PVC
