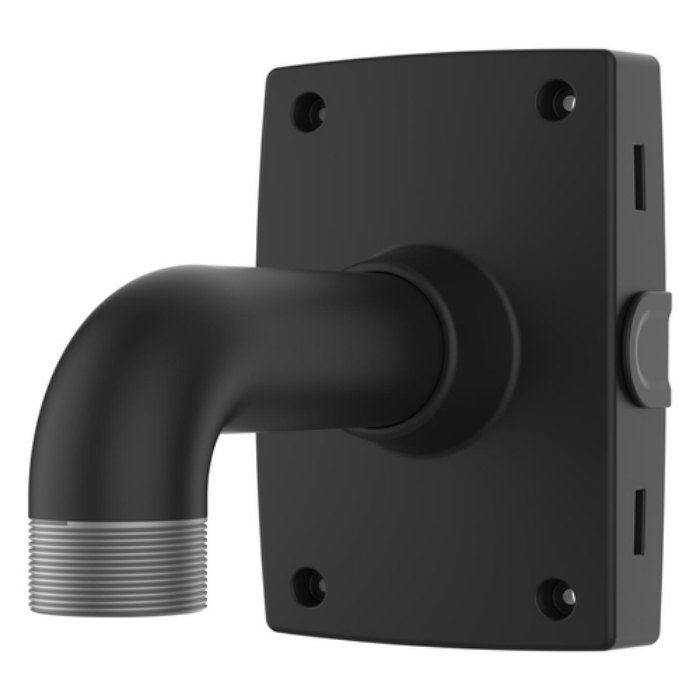

AXIS TP3301-E Pole Mount Black

The outdoor-ready AXIS TP3301-E Pole Mount Black has a 1.5" NPS threading for a wide range of Axis pendant kits for Axis fixed dome and panoramic cameras. Thanks to its impact-resistant and outdoor-proven material, the mount can be used in both indoor and outdoor environments. AXIS TP3301-E is intended for poles with a diameter between 65–165 mm (2 1/2–6 1/2 in), and also for beams. It features 3/4" conduit side entries for protected cable runs, and a closed back with cable gasket for protection against insect infestation. The pole mount is tightened with two marine-grade (SS316L) stainless steel straps with TX30 screw interface for ease and secure installation.



Viktiga egenskaper

Axis TP3301-E. Type: Mount, Placement supported: Universal, Brand compatibility: Axis. Maximum weight capacity: 15 kg. Width: 138.3 mm, Depth: 244.1 mm, Height: 194.8 mm



Teknisk specifikation

Type	Mount
Placement supported	Universal
Brand compatibility	Axis
Product colour	Black
Housing material	Aluminium
IK code	IK10
Certification	IEC 60721-4 Class 4M3, MIL-STD 810G 509.5, NEMA 250 Type 4X, IEC 62262 IK10

Maximum weight capacity	15 kg

Height	194.8 mm
Depth	244.1 mm
Width	138.3 mm
Weight	1200 g

Quick installation guide	Yes

Doesn't contain	PVC
