Produktbeskrivning

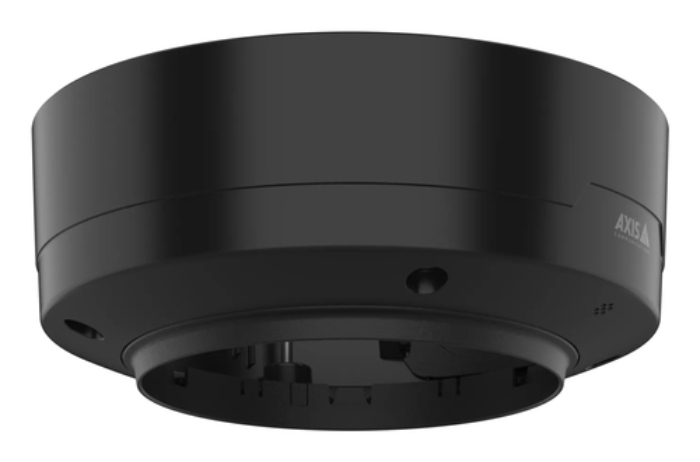

AXIS TP3837-E Casing Black/White

AXIS TP3837-E is a black or white casing accessory for selected AXIS P32 cameras with acoustic sensor.



Viktiga egenskaper

Axis TP3837-E. Type: Case, Placement supported: Universal, Brand compatibility: Axis. Image sensor size: 1/2.9", Sensor type: CMOS, Focal length range: 4.3 mm. Power consumption: 0.9 mA. Cable length: 0.2 m, Width: 31.8 mm, Depth: 34 mm. Quantity per pack: 4 pc(s)



Teknisk specifikation

Type	Case
Placement supported	Universal
Brand compatibility	Axis
Compatibility	P3267-LVE, P3277-LVE, P3287-LV, P3287-LVE, P3288-LV, P3288-LVE
Product colour	Black
Housing material	Aluminium,Plastic
IK code	IK08
Certification	CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2 Australia/New Zealand: RCM AS/NZS CISPR 32 Class A, ICES(A)/NMB(A), VCCI Class A, KS C 9835, KS C 9832 Class A, FCC Part 15 Subpart B Class A, CAN/CSA C22.2 No. 62368-1 ed.

Image sensor size	1/2.9 "
Sensor type	CMOS
Focal length range	4.3 mm
F-number (relative aperture)	1.8
Resolution	3840 x 2160 pixels
Viewing angle, horizontal	110 °
Viewing angle, vertical	55 °

Number of connectors	1

Power consumption	0.9 mA

Cable length	0.2 m
Width	31.8 mm
Weight	36 g
Height	31.8 mm
Depth	34 mm

Quantity per pack	4 pc(s)

Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	10 - 85 %
Storage temperature (T-T)	-40 - 65 °C
Storage relative humidity (H-H)	5 - 95 %

Doesn't contain	BFR,CFR,PVC
Compliance certificates	CE,Federal Communications Commission (FCC),ICES,KC,RCM,REACH,RoHS,Trade Agreements Act (TAA),UL,VCCI,WEEE,cUL
