Produktbeskrivning

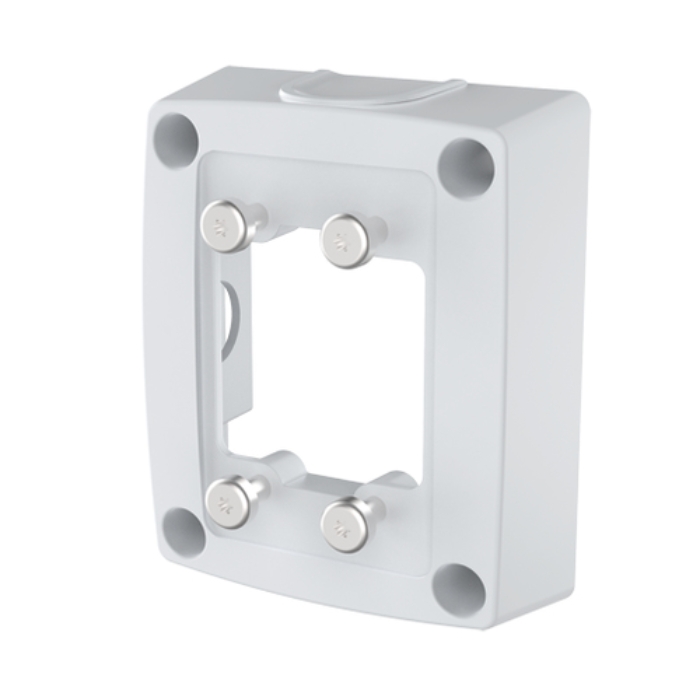

AXIS TQ1601-E Conduit Back Box is an aluminum mount with a coating that alleviates corrosion. Its design with long screws and a washer helps dissipate vibrations, and the top/bottom and side conduit entries make installation easier. When used together with AXIS T94Q01A Wall Mount, the Ethernet cable can be routed through or along the wall (from left or right). The side and top/bottom-holes are compatible with 3/4" conduits, M25 cable protection products and with AXIS Conduit Interface (ACI) adapter range (NPS/U-shape). AXIS TQ1601-E can also be used to cover a single gang junction box.



Viktiga egenskaper

Axis 02336-001. Type: Cable box, Placement supported: Universal, Brand compatibility: Axis. Connecting thread: 3/4". Width: 130 mm, Depth: 50 mm, Height: 158 mm



Teknisk specifikation

Type	Cable box
Placement supported	Universal
Brand compatibility	Axis
Compatibility	T94Q01A T92E T93F P13-E Q16-E T92G20 T91E61
Product colour	White
Housing material	Aluminium
International Protection (IP) code	IP66

Wall mountable	Yes
Connecting thread	3/4 "

Height	158 mm
Width	130 mm
Depth	50 mm
Weight	540 g

Doesn't contain	PVC

Harmonized System (HS) code	85299020
