Produktbeskrivning

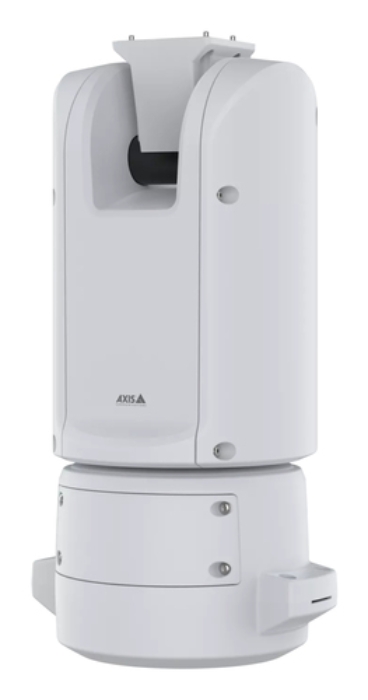

AXIS TQ1818-E is a highly responsive and reliable positioning unit, designed for both high-speed and ultra-slow, jerk-free pan and tilt movements – putting operators on the spot in an instant or providing smooth panoramic viewing.

Swift and smooth

AXIS TQ1818-E provides an unobstructed 360° endless pan and a ground-to-sky view of 135°, offering maximum situational awareness. It supports a selected range of Axis box and thermal cameras. With flexible mounting options, including wall, column, and pole mounts, AXIS TQ1818-E is simple to install in various environments. Dual RJ45 and SFP interfaces enable secure and reliable network connections over long distances. Built-in de-icing control ensures continuous operation in extreme temperatures, delivering high-performance results in any condition. The positioning unit is specifically designed to be reliable, robust and weatherproof.



Viktiga egenskaper

Axis TQ1818-E. Placement supported: Outdoor, Product colour: White, International Protection (IP) code: IP66. Maximum weight capacity: 5 kg, Turn angle: 360°, Tilt angle range: -90 - 45°. Connectivity technology: Wired, Ethernet LAN data rates: 10,100,1000 Mbit/s. Input voltage: 56 V, Power consumption (typical): 17 W, Power consumption (max): 150 W. Width: 229 mm, Depth: 207 mm, Height: 396 mm



Teknisk specifikation

Placement supported	Outdoor
Product colour	White
International Protection (IP) code	IP66
IK code	IK10
Protection features	Weather resistant
Certification	UL/cUL, CE, KC, VCCI, RCM

Maximum weight capacity	5 kg
Turn angle	360 °
Tilt angle range	-90 - 45 °

Connectivity technology	Wired
Line-in	Yes
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s

Input voltage	56 V
Power consumption (typical)	17 W
Power consumption (max)	150 W

Depth	207 mm
Weight	10500 g
Height	396 mm
Width	229 mm

Quantity per pack	1 pc(s)

Operating temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	10 - 100 %
Storage temperature (T-T)	-40 - 65 °C
Storage relative humidity (H-H)	5 - 95 %
